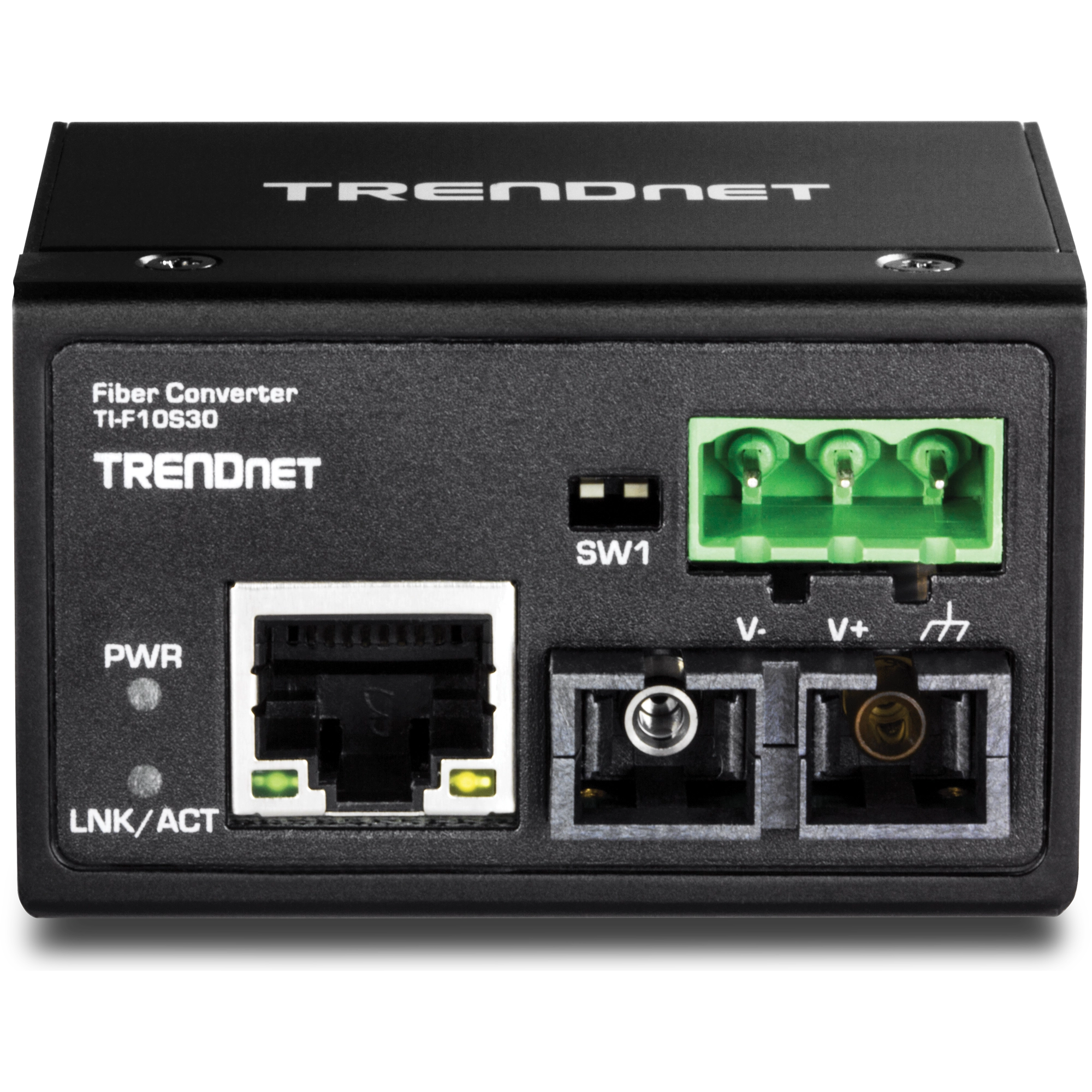

TRENDNET - TI-F10S30 - Hardened Industrial 100Base-FX Single-Mode SC Fiber Converter
Part number:
TI-F10S30
Price:
TRENDnet's TI-F10S30 is a compact IP40 rated 100Base-FX fiber converter with hardened components rated for extreme industrial environments. It accommodates long distance networking with 100Base-FX Single-Mode fiber over distances of up to 30 km (18.6 miles). Both DIN-rail and wall mount hardware is included. Power supply sold separately: model TI-M6024.
Features:
- Hardened IP40 rated compact housing
- 100Base-FX Single-Mode fiber over distances of up to 30 km (18.6 mi.)
- SC-type fiber port
- Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
- Overload current protection
- Includes DIN-rail and wall mounts
- Power supply sold separately (model TI-M6024)
- NDAA / TAA compliant
- Lifetime Warranty*
| Technical Specifications | |
| Standards | IEEE 802.3 |
| IEEE 802.3u | |
| IEEE 802.3x | |
| Device Interface | 1 x 10/100 Mbps port |
| 1 x 100Base-FX port (SC-type) | |
| 3-pin terminal block | |
| LED indicators | |
| DIN-Rail mount | |
| Wall mount | |
| Grounding point | |
| Data Transfer Rate | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) |
| Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) | |
| Special Features | Hardened components rated for extreme temperatures |
| Auto-Negotiation | |
| Link Fault Pass Through (LFP) | |
| Converter mode, switch mode | |
| ESD 8 KV and Surge 6 KV protection | |
| Fiber | Media: Single-mode SC connector |
| Cable: 9 / 125 µm | |
| Wavelength: 1310 nm | |
| Optical Output Power (dBm): -15 ~ -8 | |
| Optical Input Power (dBm): -34 ~ 0 | |
| Power Budget: 7 | |
| Distance: 30 km | |
| Power | Input: 12 – 60 V DC or 18 – 36 V AC |
| Compatible power supply: TI-M6024 (sold separately) | |
| Consumption: Max. 1.92 Watts | |
| Terminal Block | Redundant power inputs, 3 pin |
| Wire range: 0.34 mm^2 to 2.5 mm^2 | |
| Solid wire (AWG): 12-24/14-22 | |
| Stranded wire (AWG): 12-24/14-22 | |
| Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm | |
| Wire strip length: 7 – 8 mm | |
| MTBF | 510,304 hours |
| Housing | IP40 metal case |
| DIN-rail mount | |
| Wall mount | |
| Grounding point | |
| 8 KV ESD protection | |
| 6 KV surge protection | |
| Operating Temperature | - 40 to 75 °C (-40 to 167 °F) |
| Operating Humidity | Max. 95 % non-condensing |
| Dimensions | 60 x 50 x 35 mm. (2.4 x 2 x 1.4 in.) |
| Weight | 90 g (3.2 oz.) |
| Certifications | CE |
| FCC | |
| Shock (IEC 60068-2-27) | |
| Freefall (IEC 60068-2-32) | |
| Vibration (IEC 60068-2-6) | |
| Warranty | Lifetime Warranty* |
