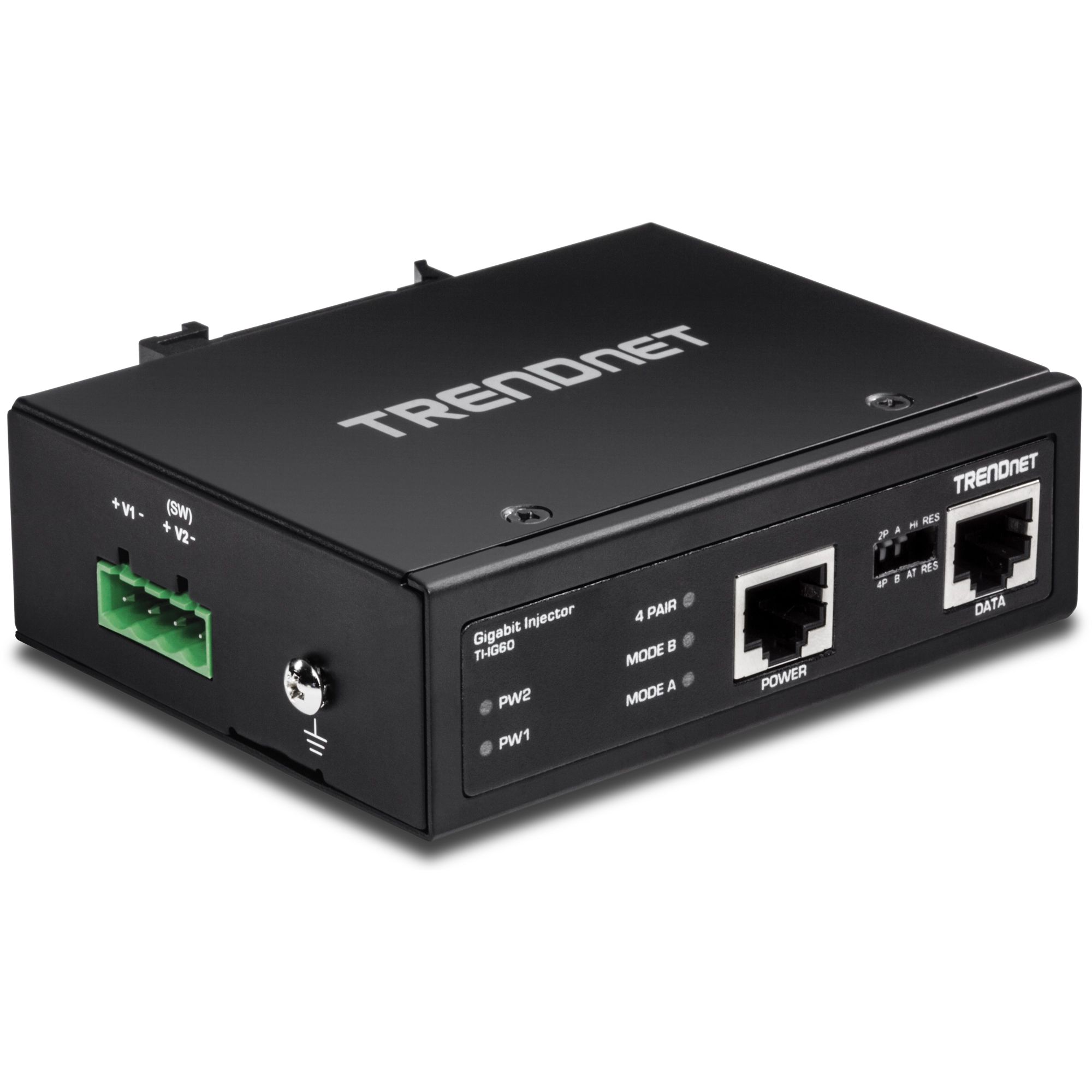

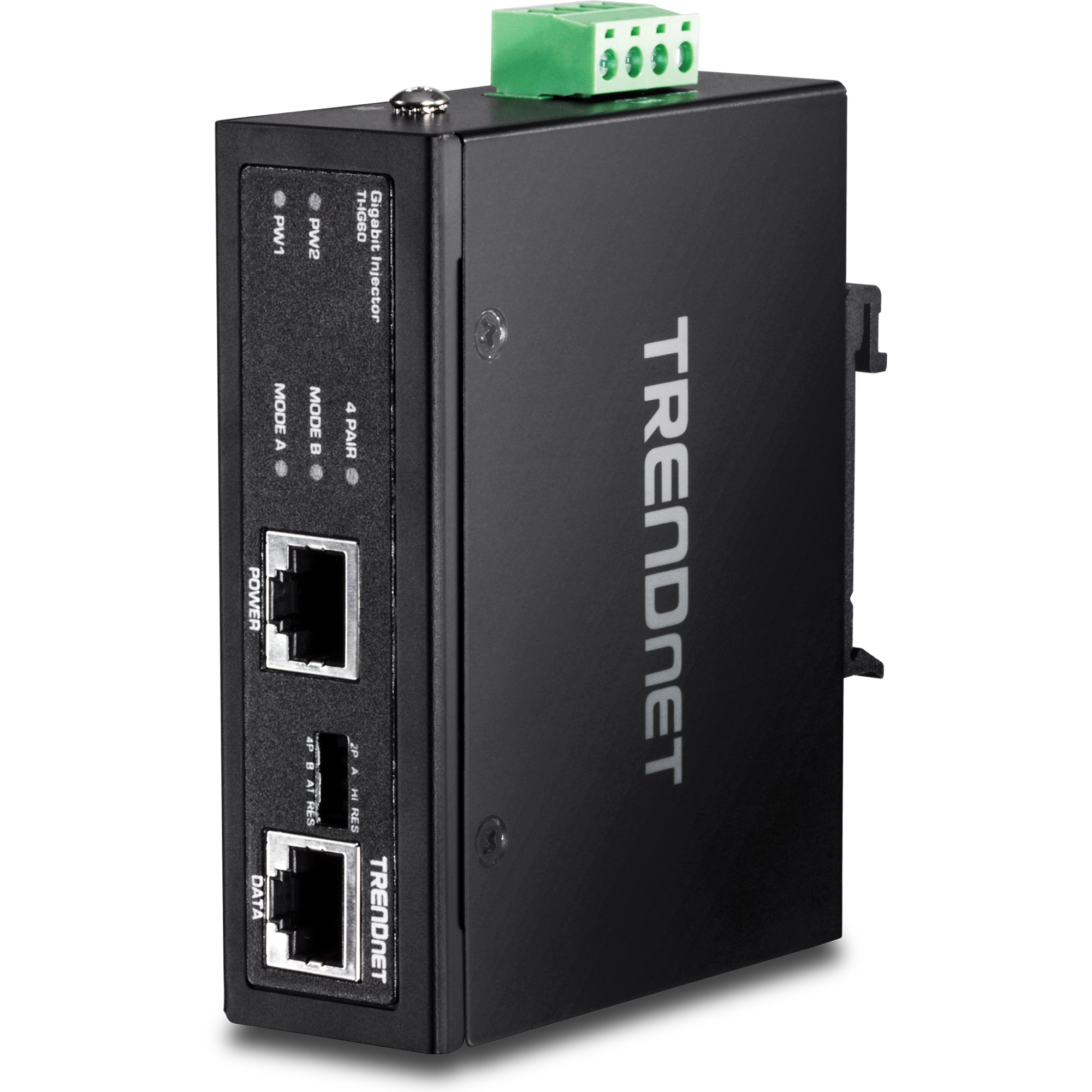

TRENDNET - TI-IG60 - Hardened Industrial 60 Watt UPoE Injector
Part number:
TI-IG60
Price:

TRENDnet's TI-IG60 is a reliable IP30 rated Industrial Gigabit UPoE Injector with hardened components rated for extreme industrial environments. Connect the TI-IG60 to a non-PoE Gigabit switch and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE device. The TI-IG60 supplies power to a PoE (up to 15 W), PoE + (up to 30 W), high power PoE+ (36 W), or 60 Watt PoE device. Dual redundant power inputs (power supply sold separately: TI-S15052, TI-S12048) with overload current protection support zero downtime applications. Both DIN-rail and wall mount hardware is included.



Features:

  • Hardened IP30 rated Gigabit PoE Injector
  • PoE (15 W), PoE+ (30 W), high power PoE+ (36 W), or UPoE (60 W) power
  • Network a PoE device located up to 100 meters (328 ft.) away
  • Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
  • Dual redundant power inputs with overload current protection

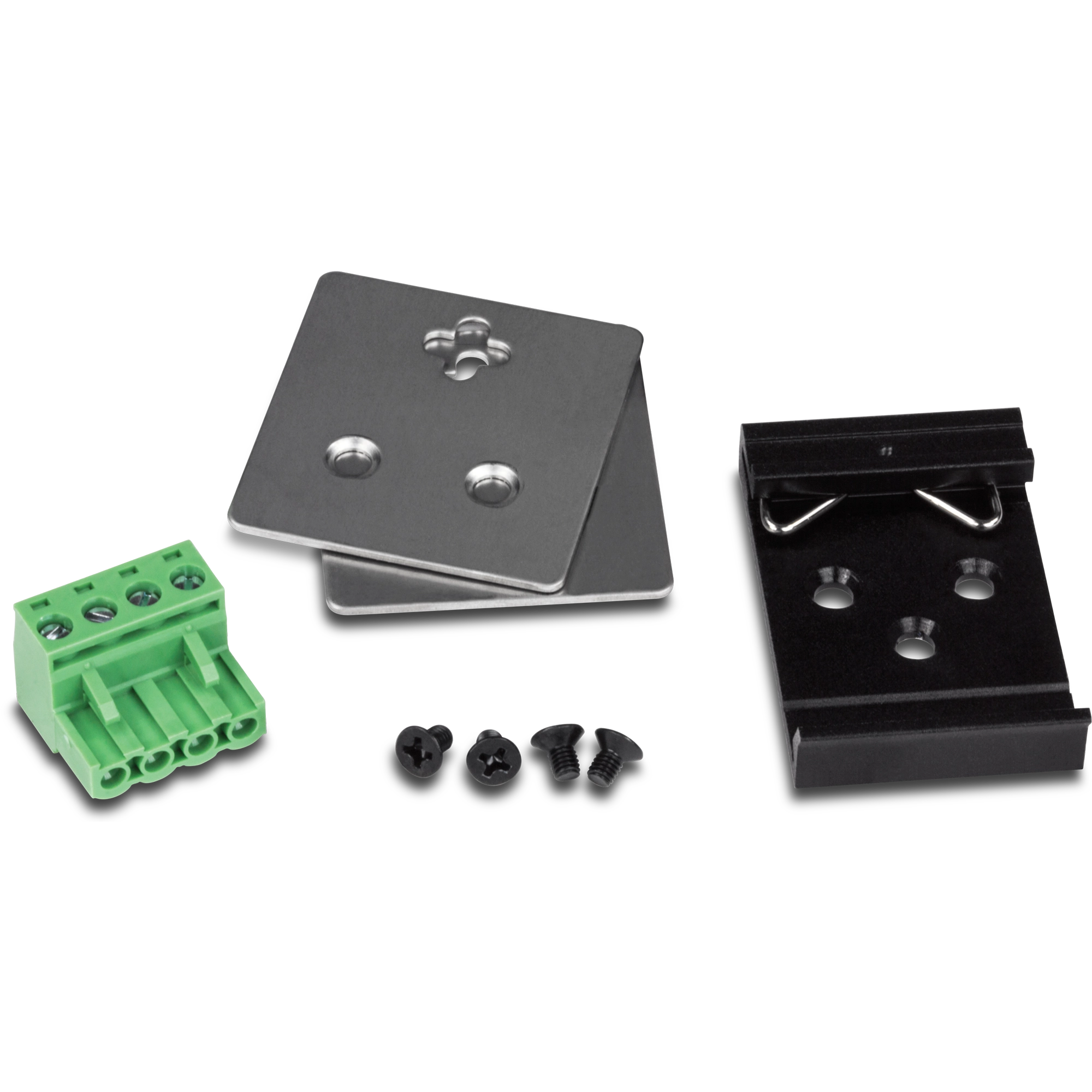

  • Includes DIN-rail and wall mounts
  • Power supply sold separately (model TI-S15052, TI-S12048)
  • NDAA / TAA compliant
Technical Specifications
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 1 x Gigabit port
  • 1 x PoE+ Gigabit port
  • 4-pin removable terminal block
  • LED indicators
  • DIN-Rail mount
  • Wall mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Special Features
  • Hardened components rated for extreme temperatures
  • Dual redundant power inputs
  • Auto-Negotiation
  • ESD 8 KV and Surge 6 KV protection
Power
  • Input: 48 – 56 V DC
  • Compatible power supply: TI-S15052, TI-S12048 (sold separately)
  • Consumption: Max. 72 Watts
PoE
  • PoE budget: 60 Watts
  • Pin 1,2 for power+ and pin 3,6 for power- (mode A)
  • Pin 4,5 for power+ and pin 7,8 for power- (mode B)
DIP Switch
  • 2 pairs (30 / 36 watts) or 4 pairs (60 / 72 watts)
  • Mode A or Mode B
  • High or standard power
  • Reserved (no function)
Terminal Block
  • Redundant power inputs, 4 pin
  • Wire range: 0.34 mm^2 to 2.5 mm^2
  • Solid wire (AWG): 12-24/14-22
  • Stranded wire (AWG): 12-24/14-22
  • Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
  • Wire strip length: 7 – 8 mm
MTBF
  • 510,304 hours
Housing
  • IP30 metal case
  • DIN-rail mount
  • Wall mount
  • Grounding point
  • 8 KV ESD protection
  • 6 KV surge protection
Operating Temperature
  • - 40 to 75 °C (-40 to 167 °F)
Operating Humidity
  • Max. 95 % non-condensing
Dimensions
  • 104 x 82 x 32 mm. (4.1 x 3.2 x 1.2 in.)
Weight
  • 138 g (4.8 oz.)
Certifications
  • CE
  • FCC
  • IEC EN60950-1
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
Warranty
  • 3 year
