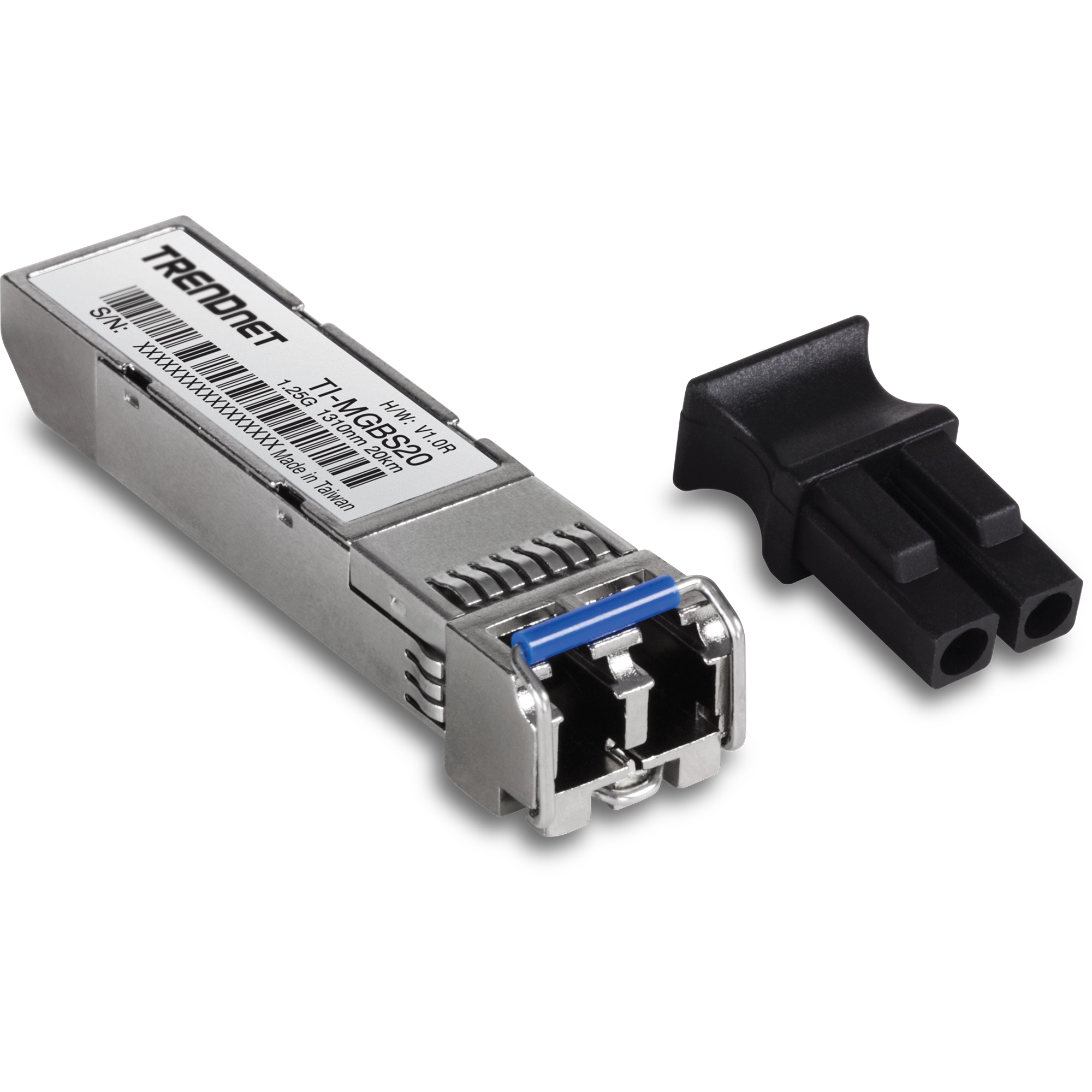

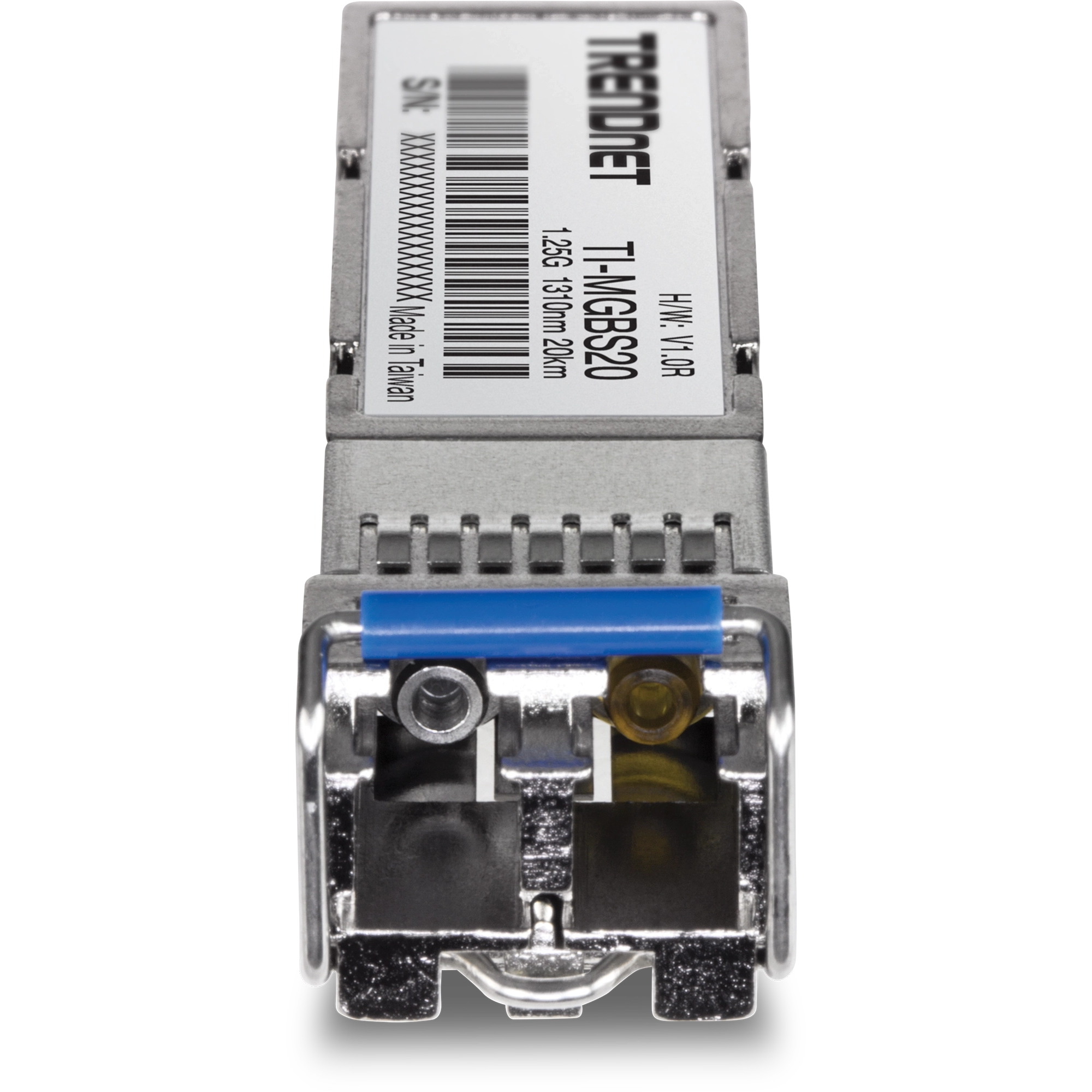

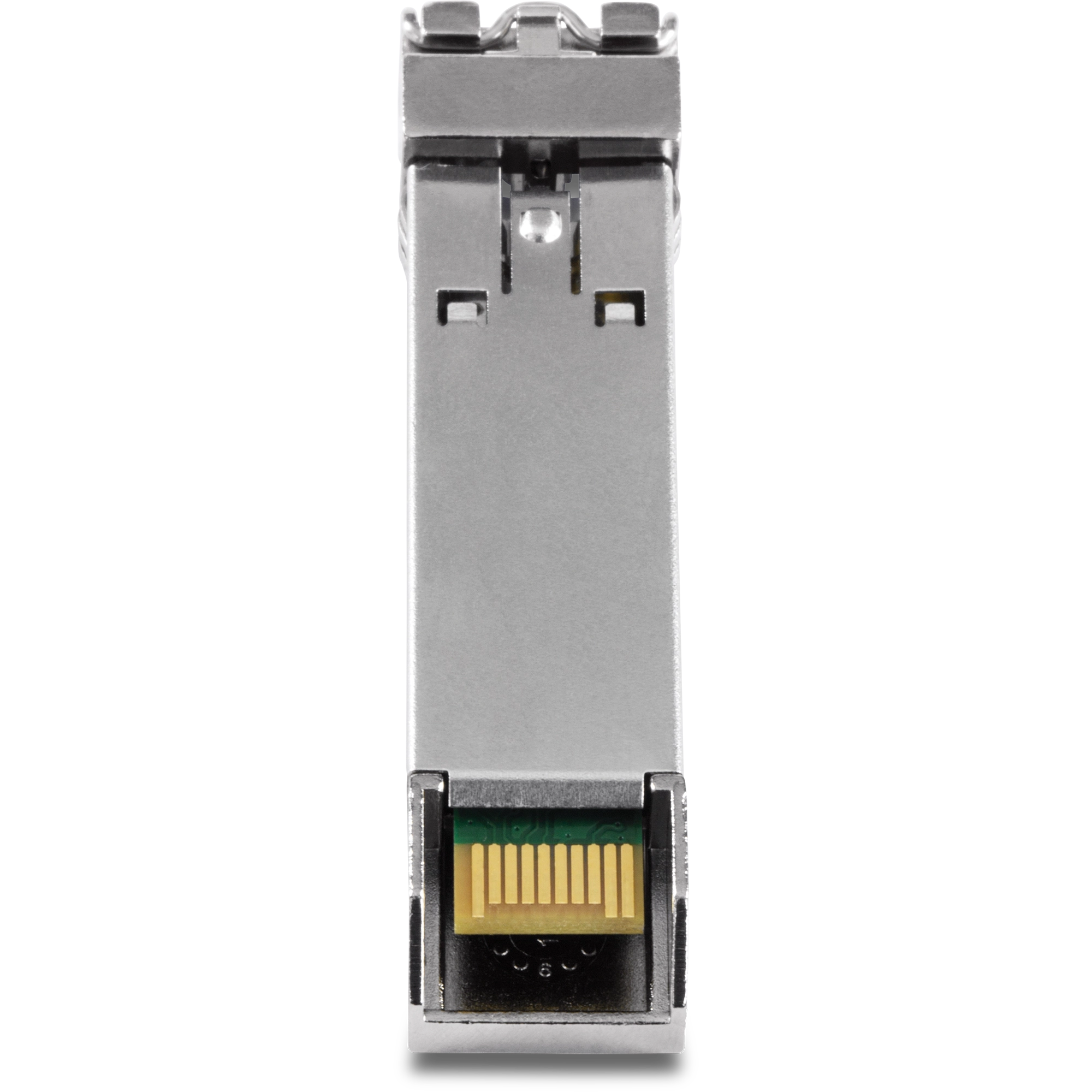

TRENDnet’s 1000Base-LX Industrial SFP Single Mode LC Module, model TI-MGBS20, is designed to operate within an extreme temperature range and is well suited for industrial environments. This industrial SFP module works with standard SFP slots found on industrial switches and fiber media converters. The TI-MGBS20 industrial SFP is compatible with duplex LC fiber connector types and supports gigabit single- mode fiber connections at distances of up to 20 km (12.42 mi.).

Fiber Applications

Long- distance fiber networking for industrial, manufacturing, corporate, and /university campus applications.

Fiber Distance

Single- Mode transceiver spans distances up to 20km (12.42 mi.) and supports up to 1.25Gbps.

Compatibility

Hot-pluggable with an MSA compliant SFP slot, and compatible with fiber cables with LC-type duplex connectors

Features:

• Compliant with IEEE 802.3z Gigabit Ethernet
• ANSI Fiber Channel compliant
• Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
• Extreme operating temperature range of -40°– 85 ° C (-40° – 185 ° F)
• Supports data rates of up to 1.25Gbps
• Transmission distance of up to 20km (12.42 mi.)
• Low Electromagnectic Interference (EMI) design
• Supports 1310nm single -mode network transmissions
• Duplex LC optical interface
• Low power consumption
• NDAA / TAA compliant
• Lifetime Warranty*
