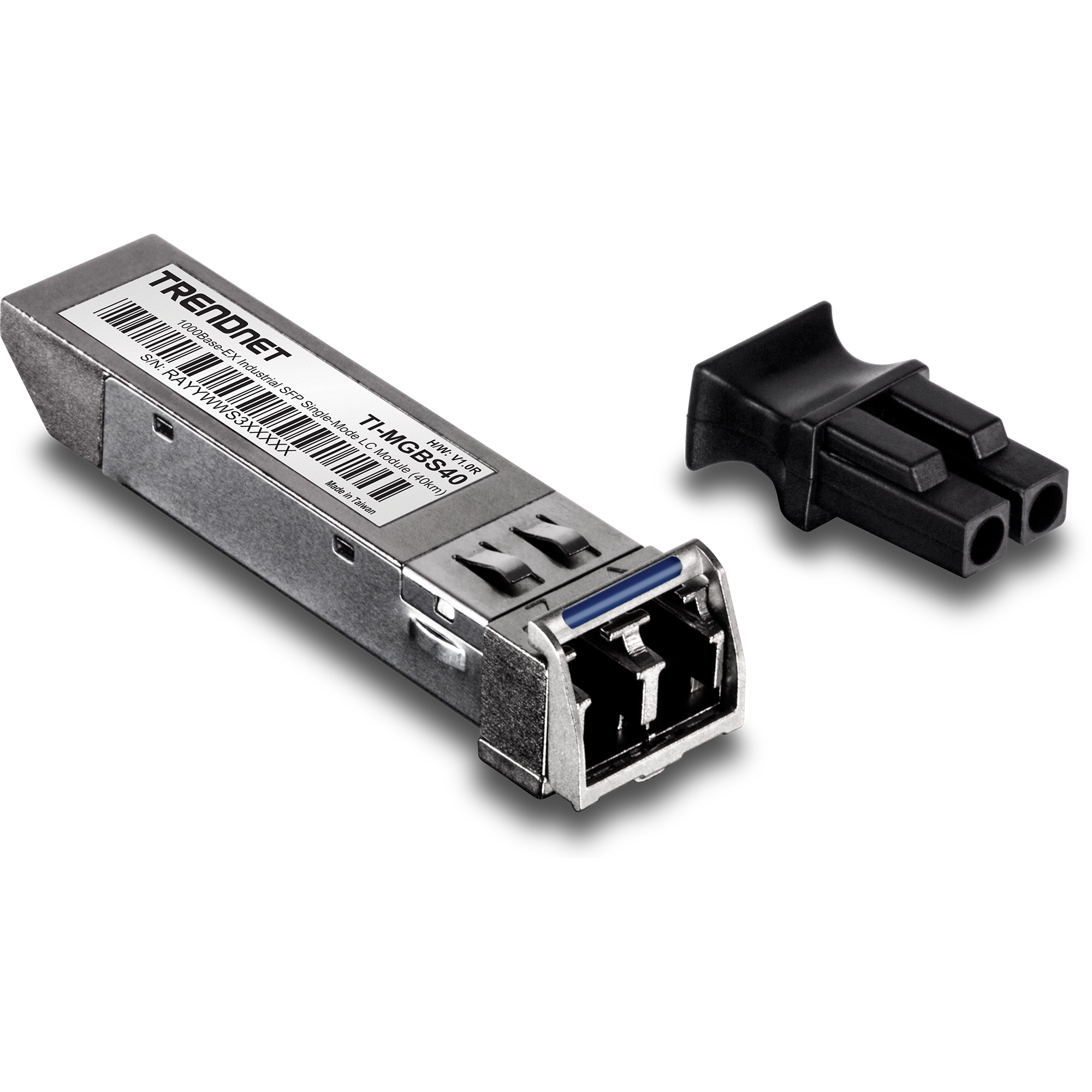

The 1000Base-EX Industrial SFP Single-Mode LC Module, model TI-MGBS40, is designed to operate within a wide temperature range and is well suited for industrial environments. This SFP module works with standard SFP slots found on industrial switches and fiber converters. The TI-MGBS40 is compatible with duplex LC fiber connector types and supports gigabit single-mode fiber connections at distances of up to 40 kilometers (24.8 miles).

Fiber Applications

Long distance fiber networking for industrial, manufacturing, and corporate / education campus applications.

Fiber Mode / Distance

Single-Mode transceiver spans distances up to 40 km (24.8 miles) and supports up to 1.25Gbps.

Compatibility

Hot-pluggable with a MSA compliant SFP slot and compatible with fiber cables with LC-type duplex connectors.

Features:

• Compliant with IEEE 802.3z Gigabit Ethernet
• ANSI Fiber Channel compliant
• Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
• Wide operating temperature range of -40°– 85 °C (-40° – 185 °F)
• Supports data rates of up to 1.25Gbps
• Transmission distance of up to 40km (24.8 miles)
• Low Electromagnetic Interference (EMI) design
• Supports 1310nm single-mode network transmissions

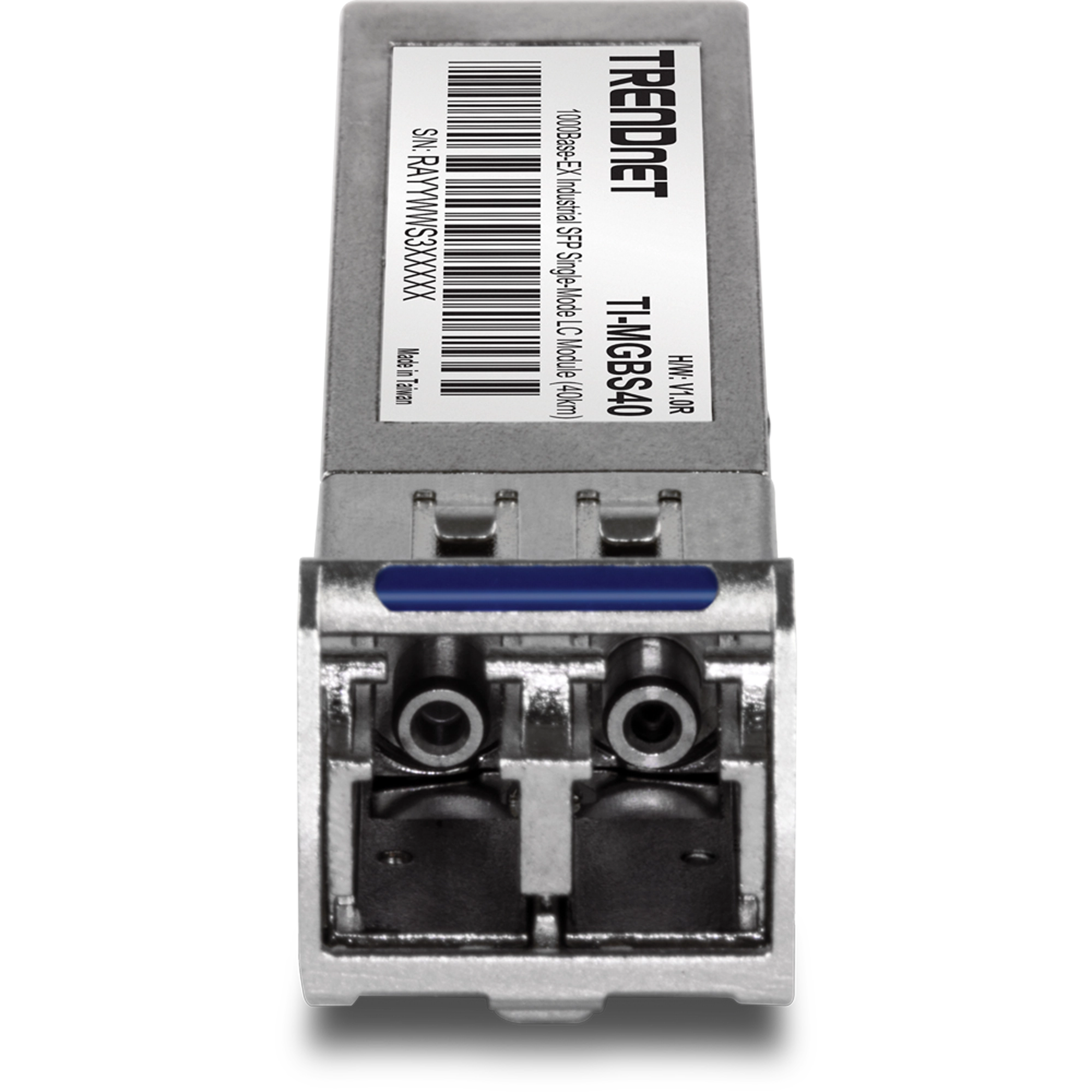

• Duplex LC optical interface
• Low power consumption
• NDAA / TAA compliant
• Lifetime Warranty*
