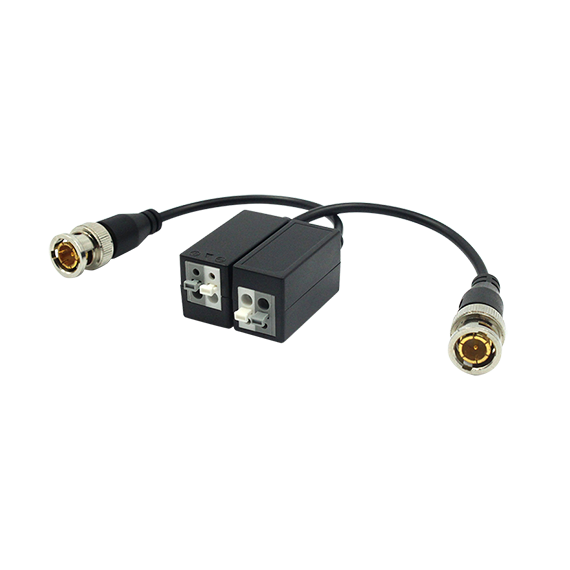

The HD video balun converter is a passive, non-amplifier, video balun that allows for real-time analog and high-definition video transmission via UTP. The DW-HDBALUN5 is compatible with all HD-Analog, HD-TVI and HD-CVI cameras up to 4K resolution. The converter’s superior interference and low emissions allow camera to recorder connections made over existing UTP infrastructure. The DW-HDBALUN5 has a built-in surge suppressor to protect against damaging voltage spikes and its crosstalk and noise immunity ensure quality video signals.
Passive Real Time Transmission Over UTP CAT5e/6, Compatible with all AHD, TVI, and CVI Analog Cameras, AHD 720P up to 1000ft, AHD 1080P up to 600ft, 5MP up to 590ft, TVI 720P up to 1000ft, TVI 1080P up to 600ft, 5MP up to 590ft, CVI 720P up to 800ft, CVI 1080P up to 400ft, 4MP up to 656ft Push Pin Terminal Connection, 60dB Anti-Interference and Noise Reduction. No External Power Required. Sold in Pairs.
Features:
- Real-time transmission over UTP cat5e/6
- Compatible with all HD-Analog, HD-TVI, HD-CVI and CVBS analog cameras
- HD-CVI 720p: 1312ft (400M)
- HD-CVI 2.1MP/1080p: 820ft (250M)
- HD-CVI 4MP/4K: 656ft (200M)
- HD-TVI 720p: 820ft (250M)
- HD-TVI 2.1MP/1080p: 820ft (250M)
- HD-TVI 5MP/4K: 590ft (180M)
- HD-Analog 720p: 1148ft (350M)
- HD-Analog 2.1MP/1080p: 656ft (200M
- HD-Analog 5MP/4K: 590ft (180M)
- Push-pin terminal connection for UTP cable
- 60dB anti-interference and noise reduction
- No external power required
| PROPERTIES | |
| Transmission signal | 1 channel |
| Transmission distance | HD-CVI 720p: 1312ft (400M) HD-CVI 2.1MP/1080p: 820ft (250M) HD-CVI 4MP/4K: 656ft (200M) HD-TVI 720p: 820ft (250M) HD-TVI 2.1MP/1080p: 820ft (250M) HD-TVI 5MP/4K: 590ft (180M) HD-Analog 720p: 1148ft (350M) HD-Analog 2.1MP/1080p: 656ft (200M) HD-Analog 5MP/4K: 590ft (180M) |
| Category type | UTP CAT5 / 5E / 6 |
| VIDEO TRANSMISSION PROPERTIES AND PORT | |
| Coaxial video connector | BNC-M |
| Twisted-pair video connector | Push-terminal |
| Compatible format | HD-Analog / HD-TVI / HD-CVI / CVBS |
| Resolution | Up to 5MP / 4K resolution |
| Anti-interference | >60 db |
| PROTECTION | |
| ESD | 1a contact discharge electricity level 3 1b air discharge electricity level 3 Per: IEC61000-4-2 |
| Coaxial cable connector | 2kV (different-code) Per: IEC10004-5 |
| UTP cable connector | 2kV (different-code), 4KV (common-code), Per: IEC1000-4-5 |
| IMPEDANCE | |
| BNC male | 75 ohms |
| UTP cable | 100 ohms |
| STABILITY | |
| MTBF | >10000H |
| ENVIRONMENTAL | |
| Operating temperature | 14 ~ 131° F (-10 ~ 55° C) |
| Storage temperature | 10.4 ~ 158° F (-12 ~ 70° C) |
| Operating humidity | 0-95% (non-condensing) |
| MECHANICAL | |
| Dimensions (L*W*H) | 2.16" x 0.63" x 0.75" (55 x 16 x 19 mm) |
| Shell | ABS |
| Color | Black |
| Weight | 0.04lbs (22.6gr) |
