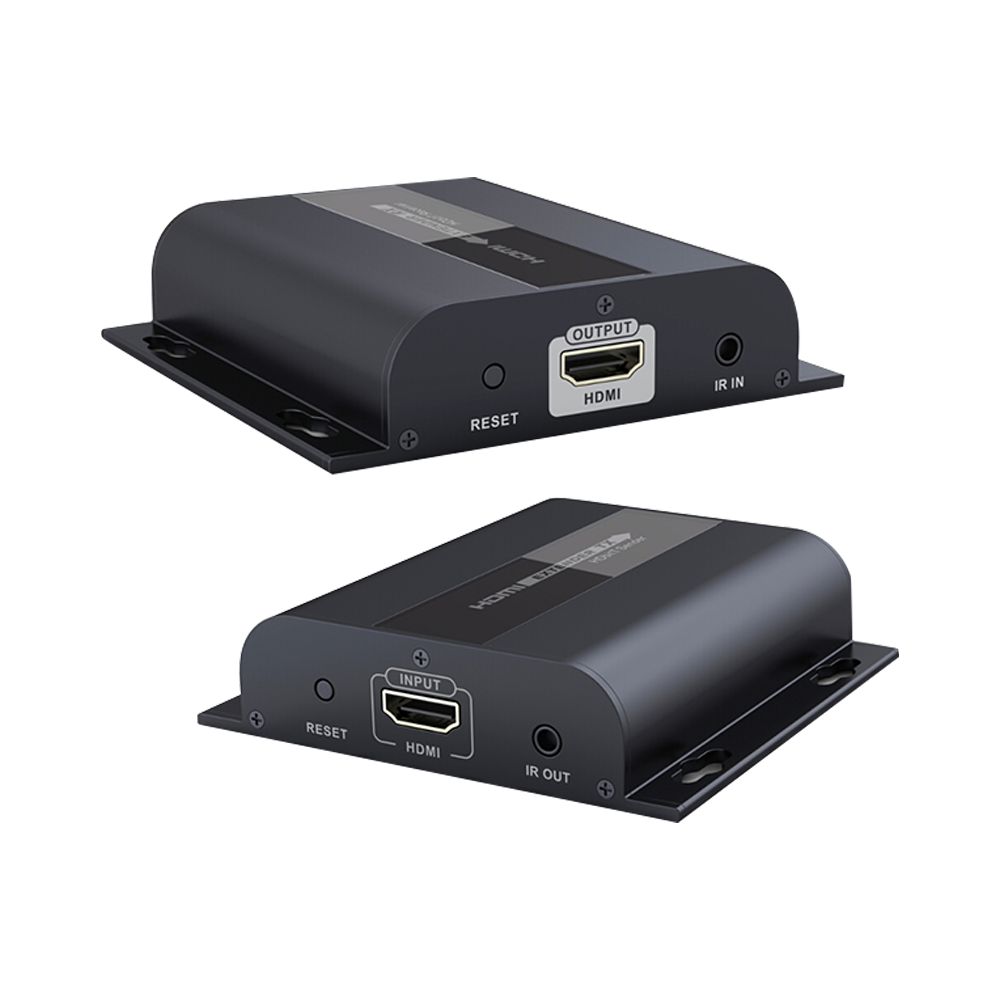

Avycon - AVA-HDMI-EXT-C450 - HDMI Extender over CAT5/6 up to 450ft
Part number:
AVA-HDMI-EXT-C450
Price:
HDMI Extender over CAT5/6 up to 450ft (HDbitT), with IR transmitter & receiver, includes DC5V power supply. The product is sold in pairs of two.
Features:
- Transmits HDMI over UTP Cat5/6 cable (RJ45 input)
- Transmits High Definition Video and Audio up to 450ft.
- Supports resolutions of up to 1080P at 60fps
- Supports Infrared (IR) Remote
- Plug-and-play solution
| GENERAL | |
| HDMI Signal | Compatible with HDCP1.2 |
| Transport Protocol | HDbitT |
| Supports Resolutions | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz,(Cat6, Cat6A, Cat7) 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
| Network Cable | UTP / STP Cat5 / 5e / 6 |
| Transmission Distance | Up to 120m (394ft.) transmission distance for 1080P Full HD over single Cat6 |
| IR Signal | Supports 20~60KHz IR Devices |
| Operating Temperature | 0°C ~ 60°C (32°F ~ 140°F) |
| Power Supply | DC 5V/1A |
| Power Consumption | TX: 3.5W；RX: 3W |
| Dimensions | 130mm x 84mm x 23.2mm (5”x 3.3”x 1”) x 2pcs |
| Weight | TX: 250g RX: 200g |
Name
Description
Size
Downloads
File
Datasheet
0.9mb
