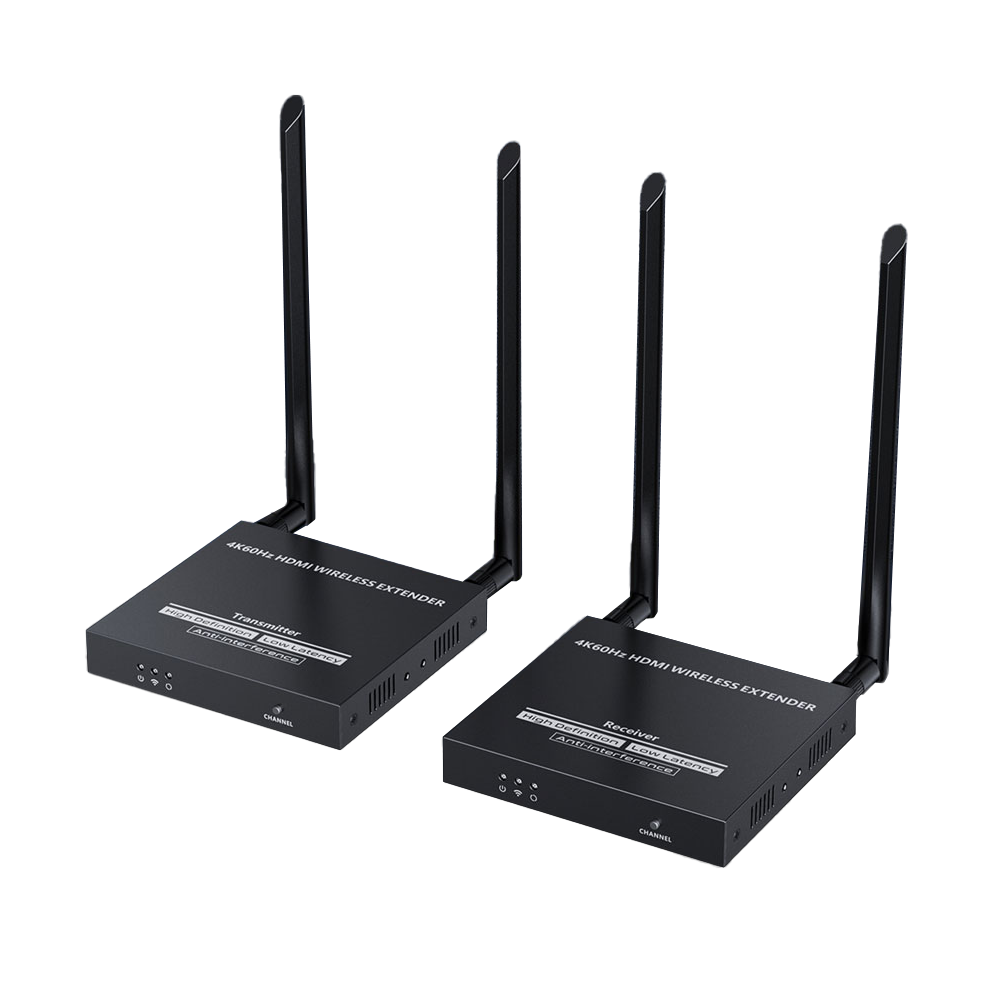

Avycon - AVA-HDMI-EXT-W150 - HDMI Wireless Extender up to 150ft
Part number:
AVA-HDMI-EXT-W150
Price:
HDMI Wireless Extender up to 164ft, transmitter & receiver kit, 3840 x 2160 @60 Hz resolution.
Features:
- Support up to 3840x2160@60Hz resolution, backward compatible.
- Support wireless transmission up to 164ft (line of sight).
- The transmitter supports HDMI loop out.
- In case of multiple sets of products in the same area, support SSID pairing and channel switching to avoid interference.
- Support IR passback.
- Support 5G wireless frequency bands, strong anti-interference.
- Support firmware upgrade via Micro USB port.
| GENERAL | |
| HDMI version | HDMI 2.0 |
| HDCP version | HDCP 1.4/HDCP 2.2 |
| Maximum transfer rate | 18Gbps |
| Resolution supported | 3840x2160@24/30/50/60Hz,1080P@50/60Hz, 720P@50/60Hz,1920x1200, 2560x1440, 2560x1600 |
| Input and output TMDS signal | 0.7~1.2Vp-p（TMDS） |
| Input and output DDC signal | 5Vp-p（TTL） |
| Wi-Fi Frequency bands | 5.18~5.24 GHz |
| Transmission distance | ≤164ft (50m) |
| Latency | 130~180ms |
| Connection types | One-to-one |
| SSID pairing | Supported |
| ESD protection | 1a Contact discharge level 3 1b Air discharge level 3 Standard: IEC61000-4-2 |
| Infrared frequency | 20~60kHz |
| Receiving range | ≤16.4ft (5m) |
| Working temperature | -4°F ~ 140°F (-20°C~60°C) |
| Storage temperature | -20°F ~ 158°F (-30°C~70℃) |
| Humidity (no condensation) | 0~90% RH |
| Voltage/Current | DC 5V/2A |
| Power consumption | TX ≤ 6W, RX ≤ 4W |
| Color | Black |
| Material | Iron |
| Net weight | TX: 353g; RX: 346g |
Name
Description
Size
Downloads
File
Datasheet
1.1mb
