ELK - PD9HC - High Current Power Distribution to 9 Devices
Part number:
PD9HC
Price:
- • Auto-Resetting (PTC) Overload Protection (NO FUSES to REPLACE).
- • Master Power On/Off Switch.
- • Visual LED Power Indicators on each Output.
- • Convenient Test Points for measuring Total Current Draw.
- • Lifetime Limited Warranty.
- • Paintable White Plastic Housing

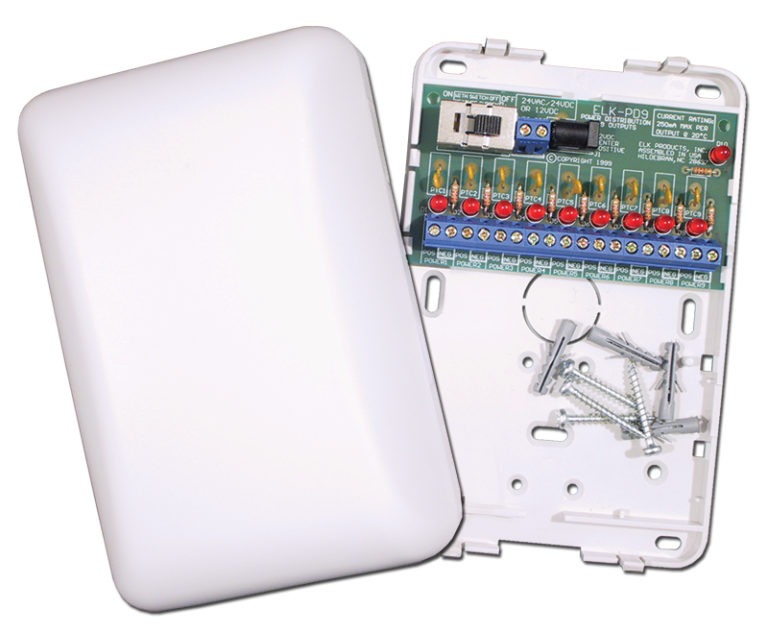

• Included: Power Distribution Module (400mA rated outputs), Plastic Housing, 4 #6 Plastic Anchors, 4 #6 Pan Head Sheet Metal Screws
| Max Current Draw | 400mA from each output. |
| Max Combined Current Draw | Not to exceed Input Power Source |
| Input/Output Voltage | 6 to 30 Volts AC or DC |
| Input Connection | Screw Terminals or 2.1mm Plug-In DC Jack |
| Output Connection | Screw terminals (POS and NEG) for each output |
| Enclosure Size | 6.5" x 4.3" x 2 |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
File
Instructions
0.1mb
These power distribution modules conveniently distribute a single AC or DC input into nine individual outputs for the central powering of video cameras, PIRs, photobeams, etc. Each output is protected by an auto-resetting PTC fuse to prevent a shorted output from disabling the others. A visual LED power indicator is provided for each output, along with a single master power on/off switch. The modules accept a 6–30 V AC or DC power source (not included), which can be connected to either the input terminal block or the 2.1 mm DC power jack located on the module. Two or more outputs can be connected in parallel for additional current.
