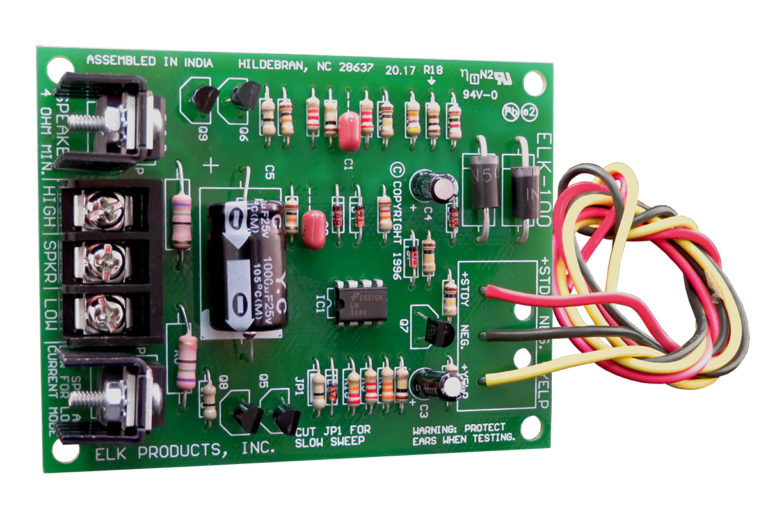

ELK - 100 - High Performance Siren Driver Module

Part number:
100
Price:

The ELK-100 Siren Driver is a great choice for residential and commercial security installations. It draws less current than most siren drivers, and offers two volume levels (example: one indoor, the other outdoor) simultaneously. Our exclusive MilliMiser option allows further reduction of current draw for controls that have limited alarm or auxiliary output power. The ELK-100 has two inputs, Yelp & Steady. The Steady sound overrides the Yelp. The Yelp input has our unique ComboTrigger feature, especially designed for controls that have a single alarm output with a pulsing option for fire or burglary. When pulsed, this channel produces a distinctive third sound pattern.



Features:

  • Two Volume Levels Simultaneously
  • Draws Less Current Than Most Sirens
  • MilliMiser Lowers Current Draw
  • Economical - Drives Multiple Speakers
  • ComboTrigger For Single Outputs
  • Pre-Wired for easy Installation
  • Lifetime Limited Warranty



Additional Details:

Listen to the ELK-100 (Yelp, Steady and ComboTrigger) sounds



Whats Included:

  • ELK-100 Siren Driver
  • Double Sided Foam Mounting Tape
  • Instructions
Specifications
Operating Voltage6 to 14 Volts DC
Current Draw1.2 Amps, (700 mA on MilliMiser setting), with one 8 ohm speaker
Sound Level120 db @ 1 meter, 14 vdc, with one 8 ohm speaker
Max. Speaker Loading4 Ohms
Size2.75" X 3.6" (70mm X 91mm)
Name
Description
Size
Downloads
File
Datasheet
1mb
File
Instructions
0mb
