- • 12MP Resolution
- • Fisheye Lens 1.97mm
- • Day and night (ICR)
- • True wide dynamic range (WDR)
- • IK10 / IP67
- • IR LED (15m / 50 ft (6ea))
- • PoE (IEEE 802.3af Class 3)
- • Two-way audio
- • Alarm in / out
- • Supports ONVIF
- • Easy 3-axis camera adjustment
- • Supports ONVIF
- • NDAA Compliant
| Camera | |
|---|---|
| Image Sensor (CMOS) | 12MP CMOS Progressive Sensor |
| Optical Format | 1/1.7" |
| Minimum Illumination (Color - Day Mode) | 0.3 Lux |
| Minimum Illumination (B/W - Night Mode) | 0.09 Lux, IR sensitive |
| Full FOV Resolution | 4000 H x 3000 V 12MP (2992 H x 2992 V 9MP effective) |
| Scaling | Yes |
| IR Illumination | Yes |
| Dynamic Range | 100dB Digital WDR |
| Frame Rates (Single Stream) | Up to 30fps Max Resolution All Stream 1 Dewarp Modes H.265/H.264 |
| Frame Rates (Dual Streams) | Up to 15fps Max Resolution All Stream 1 Dewarp Modes H.265/H.264 + 15fps Max Resolution All Stream 2 Dewarp Modes H.265/H.264 |
| Lens | (Fisheye Lens) 1.97mm, F2.3, H-FOV 180°, V-FOV 180° |
| Programmability | |
| Optics | Fisheye Lens |
| Low-Light Performance | NightView technology, IR Illuminators |
| Programmable Shutter Speed | Auto/Manual, shutter time: 1 ~ 1/100000s |
| Motion Detection | Up to 5 Areas |
| Privacy Masking | Up to 5 Areas |
| Backlight Compensation | Auto |
| White Balance Mode | Auto/manual |
| Gain Control | Auto |
| Image Rotation | Horizontal and Vertical Mirror (Independent or Combined) |
| On-Screen Display (OSD) | Time / Date / Camera Name / Custom Text |
| Display/Dewarp Modes | Fisheye Overview, PTZ, Quad View, Panorama, Double Panorama, Panorama PTZ, Double Panorama PTZ |
| Wide Dynamic Range | 100dB Digital |
| Miscellaneous Controls | Color saturation, brightness, sharpness, contrast, white balance, day/night threshold, exposure control (including automatic gain control), hue, GOP length |
| Data | |
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG |
| Bit Rate Control (Stream 1) | Variable 500-12000 Kbps; Max 500-11000 Kbps; Constant 500-11000 Kbps |
| Bit Rate Control (Stream 2) | Variable 500-8000 Kbps; Max 500-7000 Kbps; Constant 500-7000 Kbps |
| Transmission Protocols | TCP/IP, UDP, ICMP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, RTSP, UPnP, DHCP, DNS, NTP, RTP, RTCP, DynDNS support, 802.1x 10/100Base-TX Auto-adaptive Ethernet network interface, RJ45 |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream |
| Users | Live viewing/Administrator for up to 31 clients |
| Event | |
| Event Trigger | Motion Detection, Alarm Handler, Tampering Alarm, Network Failure |
| Notifications | Trigger Alarm Output, E-mail, SMTP, FTP, Record Video to SD Card and Network Storage |
| Compliance & Listings | |
| Industry Standard | ONVIF Profile S, G, T conformant |
| Listings | UL 62368-1, E489591 |
| FCC Compliance | 47 CFR FCC Part 15B Class A |
| Environmental | RoHS, WEEE |
| Markings (CE) | EN55032, EN55035,EN61000-3-2,EN61000-3-3 Class A |
| Mechanical | IK-10 (IEC62262), IP67 (IEC60529) |
| Environmental | |
| Operating Temperature | -40°C (-40°F) to 55°C (131°F) |
| Humidity | 0% to 90% (non-condensing) |
| Electrical | |
| Alarm Input/Output | 1 x input (wet contact)/1 x output (wet contact) |
| Power Over Ethernet | PoE IEEE 802.3at, Class 4 Total PoE solution (no external power requirement) |
| Auxiliary Power | 12VDC |
| Power Consumption | 15W max |
| IR Illuminator | |
| LEDs | 6pcs, independently configurable |
| Projection Distance | 50ft (15m) max |
| Audio | |
| Streaming | Two-way |
| Compression | G.711 PCM 8 kHz/16 bits (A-Law/μ-Law) |
| Input/Output | Line Input / Line Output |
| Mechanical | |
| Casing | Die-cast aluminum chassis with polycarbonate dome bubble |
| Mounting Options | Ceiling, Wall |
| Unit Dimensions | Ø5.14" (130.5mm) x 2.24" H (57mm) |
| Packaged Dimensions | 5.63" H (143mm) x 6.14" W (156mm) x 6.14" L (156mm) |
| Unit Weight | 1.45lbs (0.657kg) |
| Packaged Weight | 1.92lbs (0.87kg) |
| On Board Storage | MicroSDXC slot up to 1TB (card not included) |
| Body Color | AV Costar White (Pantone® Cool Gray 1C) |
Name
Description
Size
Downloads
File
AV12CFE-250 _Datasheet.pdf
0.3mb
File
AV12CFE-250_Brochure.pdf
0.7mb
File
AV12CFE-250_A_E_Specification.pdf
0.1mb

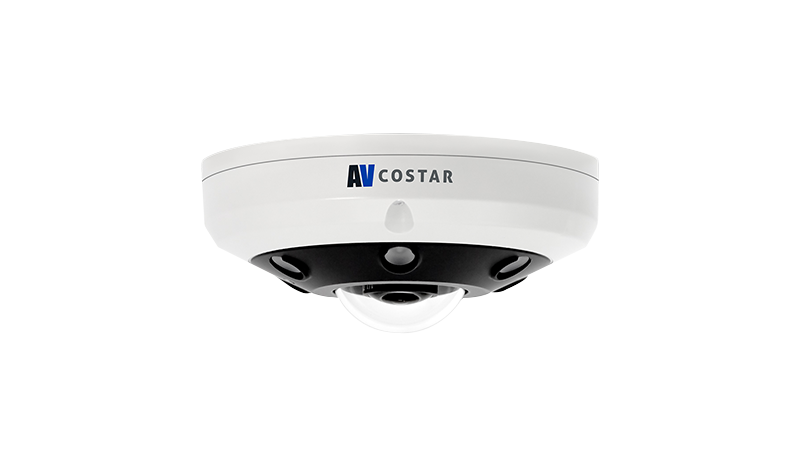

This is a 12-megapixel fisheye camera with a 1/1.7" CMOS sensor. It uses a fixed fisheye lens with a focal length of 1.97mm (F2.3) providing a 180-degree horizontal and vertical field of view. It has integrated IR illumination with a maximum distance of 50 ft (15m) and supports video compression in H.265, H.264, and MJPEG formats. The camera supports multiple digital dewarping modes for viewing, including fisheye overview, PTZ, quad view, and panorama. The camera includes 100dB digital WDR, day/night operation, and configurable IR illuminators. It is housed in an IK-10 and IP67-rated die-cast aluminum casing. It operates on PoE (802.3at) or 12VDC, with max consumption of 15W, and within a temperature range of -40°C to 55°C (-40°F to 131°F).
