• 48~57 V DC power port
• BNC output port
• RJ45 output port
• PoE output port
• BNC input port
• RJ45 input port
• Transmits Ethernet signal and power up to 1,640 feet (500m) through coaxial cable
• Transmits Ethernet signal and power up to 1,315 feet (400m) through network cable
• Use 75~5 standard or above coaxial cable and CAT5e / 6 cable to get the longest transmission
• Plug-and-play, no set-up required
| Power | |
|---|---|
| Source | DC 48~57 V |
| Consumption | < 2W |
| Power Supply | PoE power supply or adapter power supply |
| Ethernet Port | |
| Ethernet Port | EPOC: 0 – 100 Mbps Ethernet: 10/100 Mbps Transmission bandwidth changes with transmission distance. Please refer to the table below. |
| Transmission Distance | EPOC Coaxial Cable: 0-500m EPOC Network Cable: 0-400m |
| Transmission Medium | Coaxial Cable: 75~5 and above Network Cable: CAT5e / 6 |
| PoE Protocol | IEEE802.3af, IEEE802.3at |
| PoE Mode | Support end-span and mid-span |
| Ethernet Standard | IEEE802.3 10 BASE-T IEEE802.3u 100 BASE-TX |
| Ethernet Delay | < 1 ms |
| Protection Level | |
| ESD | 1a Contact Discharge – Level 3 1b Air Discharge – Level 3 Per: IEC61000–4–2 |
| Anti-thunder Protection | Per: IEC61000–4–5 – Level 3 |

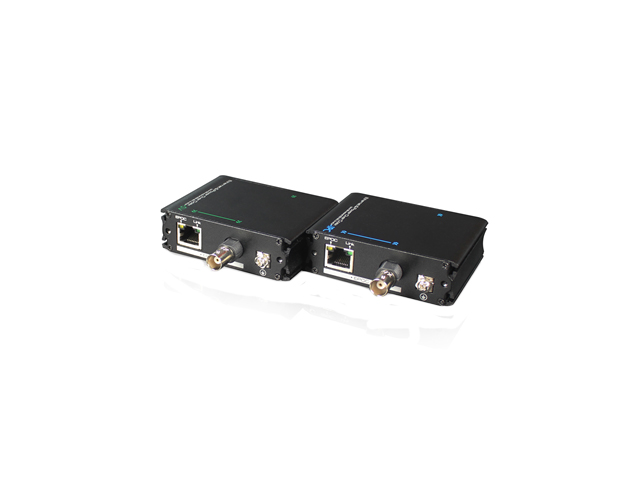

This is an Ethernet extender kit that transmits data over coaxial or CAT5e/6 network cables. It supports 10/100 Mbps Ethernet and a proprietary EPOC mode with speeds up to 100 Mbps, though the available bandwidth decreases with distance. Transmission distance is up to 500 meters over 75-5 or better coaxial cable and up to 400 meters over CAT5e/6 cable. Ethernet delay is less than 1 ms. The device is powered by 48-57V DC, either via a PoE supply (supporting IEEE 802.3af/at, end-span and mid-span) or an adapter, with consumption under 2 watts. It includes ESD and anti-thunder protection compliant with specific IEC61000-4-2 and IEC61000-4-5 Level 3 standards. Operating temperature and ingress protection ratings are not specified.
