• Extender
• 1 – PoE input port
• 2 – PoE output port
• Transmits Ethernet signal and power up to 985 feet (300m) through network cable
• Use CAT5e / 6 cable
| Power | |
|---|---|
| Consumption | < 3W |
| Power Supply | PoE power supply |
| Ethernet Port | |
| Ethernet Port | PoE Input: 10/100 Mbps PoE Output: 10/100 Mbps |
| Transmission Distance | 100m |
| Transmission Medium | CAT5e / 6 |
| PoE Protocol | IEEE802.3af, IEEE802.3at |
| PoE Mode | Support end-span and mid-span |
| Network Switch | |
| Network Standard | IEEE802.3 10 BASE-T IEEE802.3u 100 BASE-TX |
| Network Delay | <20us |
| Protection Level | |
| ESD | 1a Contact Discharge – Level 3 1b Air Discharge – Level 3 Per: IEC61000–4–2 |
| Lightning Protection | Per: IEC61000–4–5 – Level 3 |
| General Information | |
| Temperature | -40°F to 167°F (-40°C to 75°C) |
| Humidity | ≤ 95% |
| Weight | 0.43 lbs. (195g) |
| Dimensions (L x W X H) | 4.05” x 3.22” x 0.98” (103 x 82 x 25 mm) |

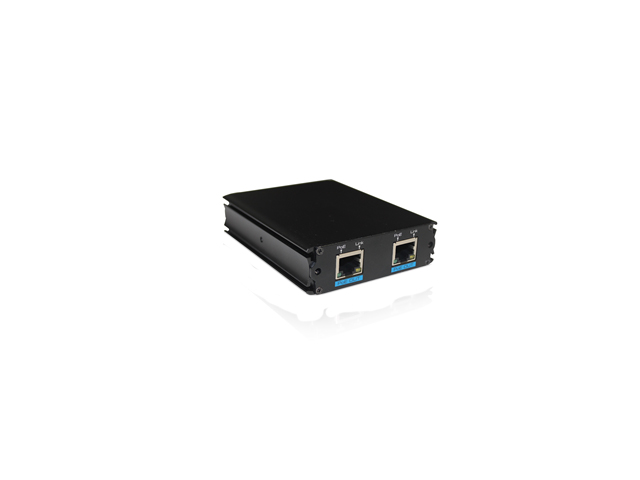

This is a single-port Ethernet repeater with PoE passthrough. It provides one 10/100 Mbps Ethernet input and one 10/100 Mbps Ethernet output, extending transmission up to 100 meters over CAT5e/6 cable. The device is powered solely by a PoE supply, supporting both IEEE 802.3af and 802.3at standards in end-span and mid-span modes, with a power consumption under 3 watts. The repeater complies with IEEE 802.3 and 802.3u network standards and has a network delay of less than 20 microseconds. It includes ESD and lightning protection compliant with specific IEC61000-4-2 and IEC61000-4-5 Level 3 standards. It operates within a temperature range of -40°C to 75°C (-40°F to 167°F) at up to 95% humidity.
