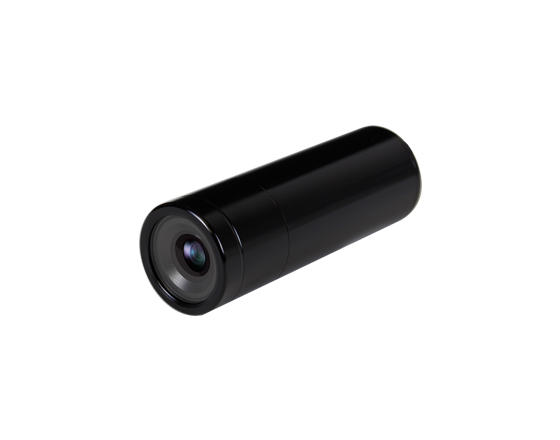

CBC1K36W - Analog Micro Bullet Camera - IDIS
• 5MP (2594 x 1944) Resolution
• 1/2.8" CMOS Progressive Scan image sensor
• 2.7-13.5mm Motorized Vari-focal Lens
• True day / night with IR cut filter
• 6 IR LEDs with a 131.2ft (40m) Range
• DirectNET protocol
• MicroSD memory card supported
• On-Camera Analytics
• True Wide Dynamic Range (T-WDR)
• Multiple compression (H.265, H.264, MJPEG)
• IP67 weatherproof rated with heater
• IK10 vandal resistant housing
• Power over Ethernet (PoE) or 12VDC
• NDAA Compliant
| Camera | |
|---|---|
| Model | CDI5D13VIFHE |
| Image Sensor | Sony IMX335 CMOS Progressive Sensor |
| Optical Format | 1/2.8" |
| Minimum Illumination | Color (Day Mode) 0.15 Lux @ F1.4 B/W (Night Mode) 0 Lux (IR LED On) |
| Full FOV Resolution | 2592 H x 1944 V |
| Scaling (See Scaling Resolutions Below) | Yes |
| IR Illumination | Yes |
| Dynamic Range | 120dB (True WDR) |
| Frame Rates* Single Stream | Up to 30fps (5MP) |
| Lens | DC Iris 2.7-13.5mm, F1.4-F3.2, H-FOV = 30.4°–101.2°, V-FOV = 22.8°–72.5°, D-FOV = 38°–137.4°, IR Corrected |
| Programmability | Optics Motorized Vari-focal |
| S/N Ratio | More than 45dB |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Privacy Masking | 8 Zones |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Scaling | 4:3: 2592x1944, 1920x1440, 1280x960, 640x480 16:9: 2592x1456, 1920x1080, 1280x720, 640x360 |
| Wide Dynamic Range | 120dB True WDR |
| Image Settings | Exposure, White Balance, Self-Adjusting Video Mode (Sharpness, Contrast, Colors, Brightness Control) |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| On-Screen Display (OSD) | Date / Time / Custom Text |
| Data Transmission | |
| Compression Type | H.265, H.264 (MP), Motion JPEG |
| Compression Level | Basic, Standard, High, Very High |
| Bit Rate Control | Constant Bitrate / Variable Bitrate |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Intelligent Codec | Supported |
| Motion Adaptive Transmission (MAT) | Off / On |
| Transmission Protocols | DirectNET 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, UPnP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS |
| Network Interface | 10/100Base-T Ethernet network interface, RJ45 |
| Multi-Streaming | Quadruple |
| Remote Access Client | DirectNET NVR Connection, StarNET Web, StarNET Mobile, StarNET PRO |
| Event Management | |
| Event Trigger | Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Notifications | Remote S/W, Email (with Image) |
| Compliance | |
| IP Camera Protocols | DirectNET 2.0, ONVIF Profile S conformant |
| Approvals | FCC, CE, KC |
| Mechanical | IK-10, IP67 |
| Environmental | |
| Operating Temperature | -40°F (-40°C) to + 131°F (55°C) |
| Humidity | 0% to 90% RH |
| Boot-Up Temperature | -4°F (-20°C) to + 131°F (55°C) |
| Heater | 3.5W |
| General Electrical | |
| Alarm Input/Output | 1 TTL input / 1 TTL open collector output |
| Power | 12VDC, PoE IEEE 802.3af (Class 3) |
| Power Consumption | PoE 10W 12VDC 13.2W |
| IR Illuminator | |
| LEDs | 6pcs |
| Projection Distance | 131.2ft (40m) max |
| Audio Electrical | |
| Streaming | Two-way |
| Compression | ADPCM 16K, G.726, G.711 μ-Law, G.711 a-Law |
| Input/Output | Line in / Line output |
| Mechanical | |
| Casing | IP67 weather proof standard Impact resistant, IK-10 rated |
| Gimbal | 3-axis camera adjustment with -175°~ 175° pan, 64° tilt, and -177°~ 177° rotation |
| Dimensions | Unit Ø 6.1" (155mm) x 4.11" H (104.4mm) |
| Weight | Unit 2.2lbs (1kg) |
| On Board Storage | MicroSDXC slot up to 512GB (card not included) |
The CBC1K36W (model CDI5D13VIFHE) is a high-performance 5MP (2592x1944) IP bullet camera designed for demanding outdoor and professional surveillance applications. It features a Sony IMX335 1/2.8" Starvis sensor and a motorized varifocal lens (2.7-13.5mm, F1.4) with a wide adjustable field of view (up to 101.2° horizontal). Key features include 120dB True WDR, advanced on-board video analytics (object detection, intrusion, loitering, line crossing, face detection), and two-way audio. It uses H.265/H.264 compression, supports quadruple streaming, and is compliant with DirectNET 2.0 and ONVIF Profile S. It is built to extreme durability standards with IK10 impact and IP67 weather resistance. It includes a built-in heater for cold climates, six IR LEDs with a 40m range, and a MicroSDXC slot for edge storage. The camera operates within an exceptionally wide temperature range of -40°C to 55°C (-40°F to 131°F) and up to 90% humidity. It can be powered by 12V DC (13.2W) or PoE (802.3af, 10W).
