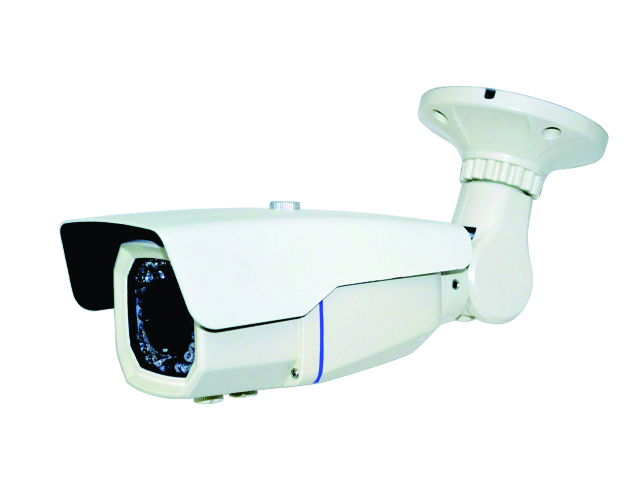

CBC3112IRv2 - 1000 TVL Bullet Camera - IDIS
- • 1000 TV Lines of resolution
- • 2.8-12 mm DC auto iris lens
- • Day/Night
- • Back Light Compensation (BLC)
- • Digital Noise Reduction (DNR)
- • Wide Dynamic Ranger (True WDR)
- • Weatherproof IP66 rated
- • 12VDC or 24VAC
| Power | |
|---|---|
| Power Source | DC12V or AC24V |
| Power Consumption | 1.5 Watts |
| Camera | |
| Lens | 2.8~12mm ICR Lens |
| TV System | NTSC / PAL |
| Auto Gain Control | Yes; Auto AGC Auto |
| Auto White Balance | Yes |
| Sense-up | X2 ~ X64 |
| Sync. System | Internal |
| Gamma Correction | 0.45 ~ 0.65 |
| Digital Noise Reduction | Yes; 3DNR |
| Infrared LEDs | Yes, 36 IR LEDs |
| Wide Dynamic Range | Yes; Progressive Scan |
| Sensor | |
| Image Sensor | 1/3" Sony IMX238 CMOS |
| Active Pixels Number | 1.3 megapixels |
| Scanning Mode | Progressive Scan |
| Resolution | 1000TVL |
| Video Output | 1.0 Vp-p75Ω (BNC Output) |
| Minimum Illumination | Color: 0.1 Lux B&W: 0.03 Lux at F1.2 IR on 0.0 Lux |
| Shutter Speed | 1/50 ~ 1/60,000 sec |
| S/N Ratio | ≥ 55dB |
| General | |
| Temperature | -14°F to +122°F (-10°C to +50°C) |
| Humidity | 90% Non Condensing |
| Dimensions | 11.64" (Ø) x 3.61" (H) 295.7 (Ø) x 91.7 mm (H) |
| Weight | 2 lbs. (950g) |
The CBC3112IRv2 is a high-resolution analog bullet camera designed for outdoor surveillance. It features a 1/3" Sony IMX238 CMOS sensor delivering 1000 TVL (TV Lines) of resolution. It is equipped with a manually adjustable varifocal lens (2.8-12mm) and an IR Cut Removable filter for Day/Night operation, supported by 36 integrated IR LEDs for illumination in total darkness. The camera provides essential image features including Wide Dynamic Range, 3D Digital Noise Reduction, and a Sense-up function for low-light enhancement. It has a minimum illumination of 0.1 lux (color) / 0.03 lux (B&W, IR on) / 0.0 lux (with IR). It outputs a standard 1.0 Vp-p composite video signal via a BNC connector. It can be powered by 12V DC or 24V AC, consuming only 1.5 Watts. The camera operates within a temperature range of -10°C to 50°C (-14°F to 122°F) and up to 90% humidity (non-condensing).
