CBI2D12IFWH - 2MP DirectNET Outdoor IR Bullet Camera 2.8-12mm - IDIS
- • Max. resolution 2 MP (1920 x 1080)
- • 1/2.8″ CMOS Progressive Scan image sensor
- • 2.8 – 12mm Motorized Vari-focal Lens
- • True day/night with IR cut filter
- • 6 IR LEDs with a 98ft ( 30m ) Range
- • DirectNET protocol; iNEX™ protocol selectable
- • Micro SD memory card supported
- • Back Light Compensation (BLC)
- • Digital Noise Reduction (DNR)
- • True Wide Dynamic Range (TWDR)
- • Multiple compression (H.265, H.264, MJPEG)
- • IP66 weatherproof rated
- • IK10 vandal-resistant housing
- • Power over Ethernet (PoE) or 12VDC
- • NDAA Compliance
| Power | |
|---|---|
| Source | 12VDC or PoE |
| PoE | IEEE 802.3af Class 3 |
| Consumption | 12VDC-9.3 watts / PoE-8.5W |
| Image Sensor | |
| Sensor | 1/2.8˝ CMOS |
| Scanning Mode | Progressive Scan |
| Resolution | 1920 x 1080 |
| S/N Ratio | More than 45dB |
| Lens | |
| Lens Type | Motorized Vari-focal |
| Lens Focal Length | f=2.8 - 12mm |
| Aperture | F1.4 - 2.8 |
| Iris Control | DC-Iris |
| Angular Field of View | Tele : 33°(H), 19°(V), 38°(D) |
| IR & Illumination | |
| IR LEDs | 6ea |
| IR Range | 98ft (30m) |
| Minimum Illumination | 0.1 Lux @ F1.4 (Color) 0 Lux @ (IR LED ON) |
| Video Processing | |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter | Auto / Manual: 1/30 ~ 1/10,000 |
| Anti-Flicker | Slow Shutter: 1/7.5, 1/15 |
| Auto Exposure | Yes |
| Auto White Balance | Yes |
| Back Light Compensation | On / Off |
| Day / Night | IR Cut Filter with Auto Switch |
| Digital Noise Reduction | Configurable 2DNR / 3DNR |
| Video Output | |
| CVBS Video Output | 1 BNC |
| Max Frame Rate | 30ips: 1920 x 1080 (WDR) |
| Bitrate | Up to 18Mbps |
| Audio & Alarm | |
| Audio In/Out | Line-in 1ea / Line-out 1ea |
| Alarm In/Out | Input 1ea / Output 1ea |
| Event & Privacy | |
| Privacy Masking | 8 Zones |
| Event Notification | Remote S/W, Email (with image) |
| Event Trigger | Motion Detection, Tampering, Trip Zone |
| Motion Detection | Motion Adaptive Transmission (MAT) |
| Event Buffering | Up to 60MB |

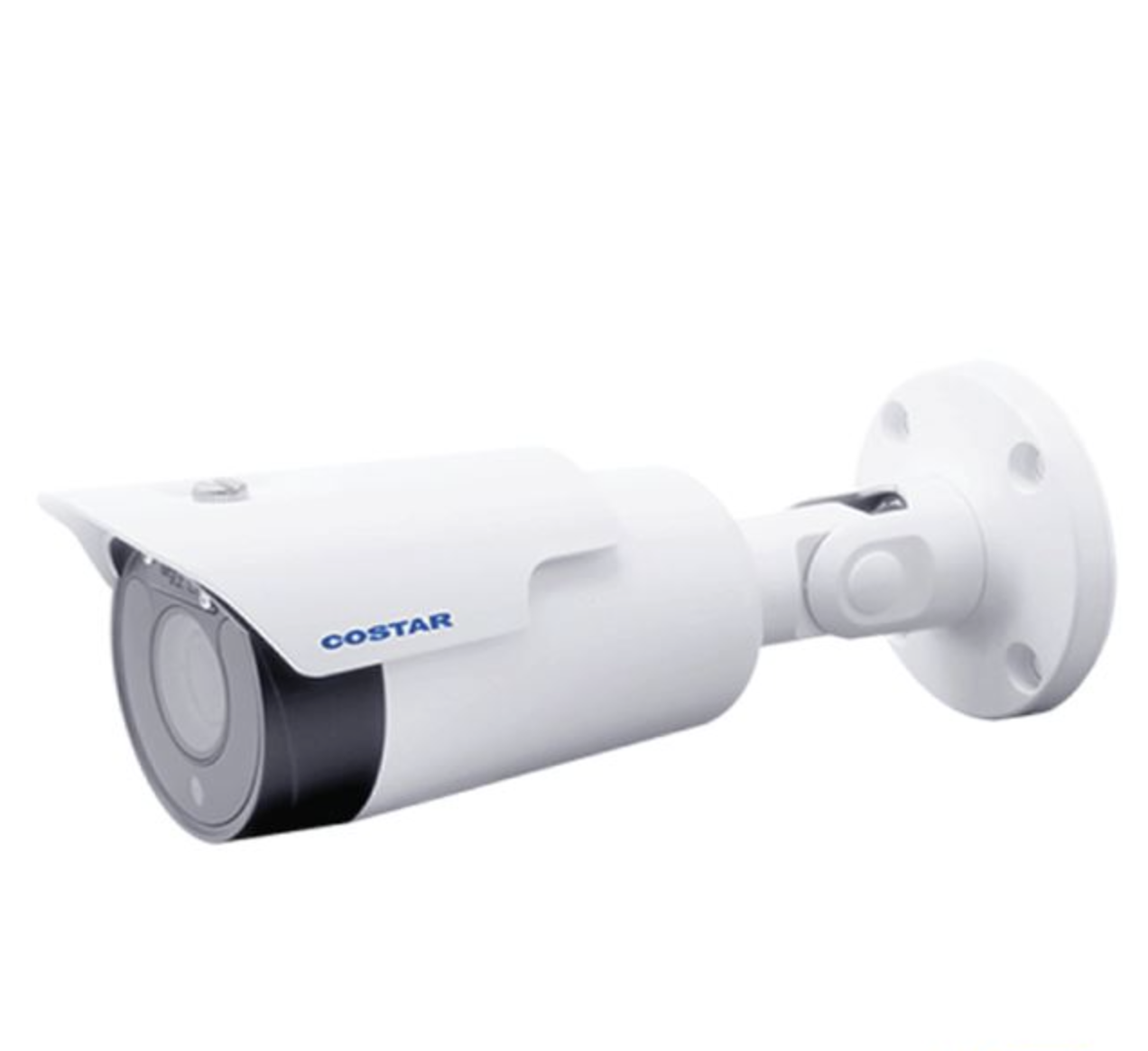

This is a 2-megapixel Full HD (1080p) motorized vari-focal bullet camera designed for outdoor use. It features a 1/2.8-inch CMOS sensor and a lens with a focal length adjustable from 2.8mm to 12mm, providing a horizontal field of view from wide-angle to a more focused 33 degrees at the telephoto end. It outputs a maximum of 30 frames per second at 1080p resolution.
For low-light operation, it incorporates six infrared LEDs with an effective range of 30 meters. It features 120 dB True Wide Dynamic Range (WDR) to handle high-contrast lighting and configurable 2D/3D Digital Noise Reduction (DNR). The camera provides standard audio input/output and alarm input/output interfaces, plus a CVBS video output for analog monitoring. It is designed for outdoor installation and can be powered by 12V DC or PoE (IEEE 802.3af, Class 3), with power consumption under 9.3 watts.
