- • 4 Megapixel Resolution
- • 1/2.8” Sony STARVIS™ CMOS Image Sensor
- • 2.8-12mm Remote Focus and Zoom Lens
- • 28 IR LEDs with an 98 feet Range
- • Back Light Compensation (BLC)
- • Digital Noise Reduction (DNR)
- • True Wide Dynamic Range (TWDR)
- • Up-the-Coax (UTC)
- • Weatherproof IP66 Rated
- • IP66 Rated
- • 12VDC or 24VAC
| Power | |
|---|---|
| Source | 12VDC or 24VAC |
| Consumption | 7.5 watts (630mA) |
| Camera Functions | |
| Auto Gain Control | 0-20 steps |
| Brightness | 0-20 steps |
| Day & Night | IR Cut Filter |
| Defog | Yes |
| Motion Detection | Yes |
| Digital Noise Reduction | 3D-NR |
| Wide Dynamic Range | WDR 120dB |
| Max Distance | UTP:985 FEET (300m) HD-TVI(1440P), HD-AHD(1440P) |
| Video Output | CVBS(960H 960x480)1Vp-p Composite Output(75 Ω /BNC) |
| Sensor and General Information | |
| Image Sensor | 1/2.8” Sony STARVIS™ CMOS |
| Signal System | PAL/NTSC |
| Resolution (H x V) | 2608 x 1960 |
| Lens Focal Length | 2.8-12mm |
| Iris Control | DC Auto Iris |
| Frame Rate | PAL:25fps ,NTSC:30fps |
| IR LED | 35 |
| IR Wavelength | 850nm |
| IR Range | 115’ |
| Minimum Illumination | Color DSS: 0.03 Lux BW DSS: 0 Lux (BW,IR LED On) |
| S/N Ratio | More than 52dB(AGC off) |
| Up the Coax | Pelco C, UTC (H) |
| Shutter Speed | Auto / Manual (1/30 ~ 1/10,000) |
| General Information | |
| Humidity | 90% RH Max |
| Temperature | 14°F ~ 122°F |
| Dimensions WxHxD | 3.5” x 3.3” x 11” |
| Weight | 2.20lbs |
| Approvals | FCC, CE |
Name
Description
Size
Downloads
File
Camera_Solution_HD_Analog_TVI_Bullet_Cameras_CBT4H12IFW.pdf
1.8mb

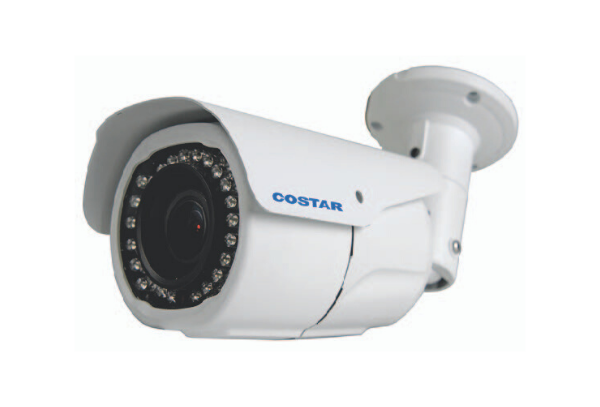

The CBT4H12IFW is a 4MP analog HD bullet camera using a 1/2.8” Sony STARVIS CMOS sensor with a resolution of 2608 x 1960 pixels. It features a 2.8-12mm vari-focal lens, a wide dynamic range of 120dB, and digital noise reduction (3D-NR). It supports multiple analog HD formats, including HD-TVI and HD-AHD, as well as standard CVBS output. The camera includes 35 IR LEDs with an 850nm wavelength, providing illumination for distances up to 115 feet (35 meters), and offers a minimum illumination of 0.03 lux in color mode. It is housed in an enclosure rated for operation in temperatures from 14°F to 122°F (-10°C to 50°C) and is powered by either 12VDC or 24VAC with a consumption of 7.5 watts.
