- • 690 HTVL-E resolution Image Sensor:
- • 1/3" PIXIM WDR Seawolf technology
- • Day/Night function with color signal control
- • Back Light Compensation (BLC)
- • Wide Dynamic Range (WDR)
- • Lens not included
- • Use Costar Video's recommended 2.5-6 mm
- • Super Wide DC Auto Iris lens for wide angle views
- • Power requirements: DC12V or AC24V
| General Information | |
| ADI Part Number | CCC3520ATMS |
| Brand Name | Costar Video Systems |
| Manufacturer | Costar Video Systems, LLC |
| Manufacturer Part Number | CCC3520ATMS |
| Product Name | 690 HTVL-E Resolution WDR Mini Box Camera |
| Product Type | Surveillance Camera |
| Technical Information | |
| Connectivity Technology | Wired |
| Lens Type | Varifocal |
| Minimum Focal Length | 2.8mm |
| Optical Zoom | 4.3x |
| Camera | |
| Image Sensor Type | Pixim |
| Wide Dynamic Range | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | -4°F (-20°C) |
| Lens | |
| Focal Length | 12mm |
| Lens Included | Yes |
| Maximum Focal Length | 12mm |
| Network & Communication | |
| Remote Management | No |
| Physical Characteristics | |
| Color | Black, White |
| Depth | 2.8" |
| Height | 1.6" |
| Weight | 4.48oz |
| Width | 1.6" |
| Power Description | |
| Input Voltage | 12V DC, 24V AC |
| Product Information | |
| Mount Type | Box Mount, Ceiling Mount, Wall Mount |
| Storage | |
| Recording Formats | Full HD |
| Video | |
| Analog Video Signal Format | CVBS |
| Miscellaneous | |
| Country of Origin | KR |
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Digital Noise Reduction, Privacy Masking, Wide Dynamic Range |
| Indoor/Outdoor | Indoor, Outdoor |
Name
Description
Size
Downloads
File
CCC3520ATMS_ProductManual.pdf
0.7mb

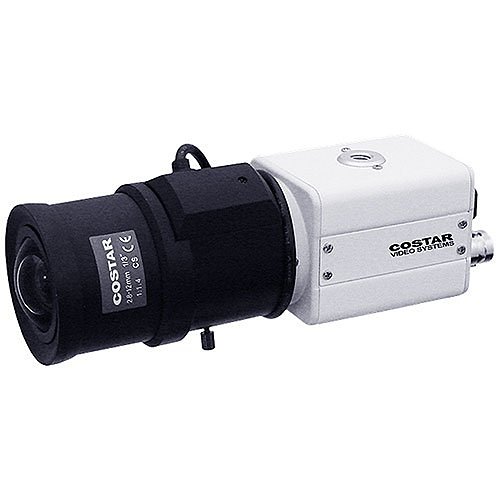

The CCC3520ATMS is an analog surveillance camera using a Pixim image sensor for 690 TVL-E resolution with wide dynamic range. It features a 2.8-12mm varifocal lens offering a 4.3x optical zoom, allowing for field-of-view adjustment during installation. The camera operates within a temperature range of -20°C to +50°C and supports 12VDC or 24VAC power input. Key imaging features include auto gain control, automatic white balance, backlight compensation, digital noise reduction, and privacy masking. Designed for both indoor and outdoor use, it provides standard CVBS composite video output.
