CCI2D43RMB - 2MP DirectNET Remote Head Camera - IDIS
• 2.1 Megapixel (1080p) Resolution
• 2.4mm or 4.3mm Fixed-Focal Board Lens
• 1/2.8" CMOS Progressive Scan Image Sensor
• Day/Night • DirectNET protocol selectable
• MicroSD memory card supported (512GB)
• Back Light Compensation (BLC)
• Digital Noise Reduction (DNR)
• True Wide Dynamic Range (TWDR 120db)
• Multiple Compression (H.265, H.264, MJPEG)
• Power over Ethernet (PoE) or 12VDC
• Video In Standard EIA-568-B Pinout Max 100ft.
| Programmability | |
| Optics | 2.4mm Fixed focal length, fixed iris, board type 4.3mm Fixed focal length, fixed iris, sharp cone |
| Shutter Speed | Auto/manual: 1/30 ~ 1/10000 Slow shutter: 1~1/5, 1/7.5, 1/15 |
| S/N Ratio | More than 45dB |
| Motion Detection | Motion adaptive transmission (MAT) |
| Privacy Masking | 8 Zones |
| Backlight Compensation | On / Off / HSBLC / WDR |
| Auto White Balance | Supported |
| Flicker Control | Supported |
| Mirroring/Pivot | Horizontal / Vertical / Pivot |
| Scaling | 1920x1080, 1280x720, 640x360, 352x240 |
| Wide Dynamic Range | Adjustment between WDR and LDR modes |
| Noise Reduction | 3D Noise Reduction |
| Miscellaneous | Sharpness, 3DNR, Exposure |
| CVBS | Yes |
| Data Transmission | |
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG |
| Compression Level | Basic, Standard, High, Very High |
| Bit Rate Control | H.264 - CBR/VBR, H.265 - CBR/VBR |
| Bit Rate | Up to 12Mbps |
| Intelligent Codec | Supported |
| Camera Protocols | DirectNET 2.0, ONVIF Profile S |
| Transmission Protocols | DirectNET 2.0 Protocol, IPv4, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, UPnP |
| Network Interface | 10/100Base-T Ethernet network interface, RJ45 |
| Multi-Streaming | Quadruple H.265/H.264/M-JPEG streams |
| Security | HTTPS, IP Filtering, SSL Encryption, User/Group Permissions |
| Remote Access Clients | DirectNET NVR, StarNET, StarNET Mobile |
| Event Management | |
| Event Trigger | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Buffering | Up to 60MB |
| Notifications | Remote S/W, Email (with image) |
| Compliance | |
| Industry Standard | ONVIF Profile S conformant |
| Approval | FCC, CE, KC, NDAA Compliant |
| Environmental | |
| Operating Temperature | -10°C (14°F) to +50°C (122°F) starting up above 32°F (0°C) |
| Humidity | 0% to 90% (non-condensing) |
| General Electrical | |
| Alarm Input/Output | 1 TTL input/1 relay output |
| Video Input | EIA-568-B pinout max 100ft |
| Power Over Ethernet | PoE IEEE 802.3at, Class 4 Total PoE solution (no external power requirement) |
| Auxiliary Power | 12V DC, 0.42A |
| Power Consumption | 5.04W, 6.3W PoE |
| Audio Electrical | |
| Streaming | Two-way |
| Compression | G.726, G.711 U-Law, G.711 A-Law |
| Input/Output | Line in / Line output |
| Mechanical | |
| Mount | Camera mounting bracket included |
| Dimensions | Main Module 1.44" H (36.5mm) x 6.02" W (153mm) x 5.22" D (132.7mm) 2.4mm Camera 1.46" H (37mm) x 1.46" W (37mm) x 1.2" L (30.5mm) Body Only 2.28" H (58mm) x 1.77" W (45mm) x 2.34" L (59.5mm) With Bracket 4.3mm Camera 1.46" H (37mm) x 1.46" W (37mm) x 1.02" L (26.3mm) Body Only 2.28" H (58mm) x 1.77" W (45mm) x 2.18" L (55.3mm) With Bracket |
| Weight | Main Module 1.05lbs (0.474kg) 2.4mm Camera 0.128lbs (0.06kg) 4.3mm Camera 0.128lbs (0.06kg) |
| On Board Storage | MicroSDXC slot up to 512GB (card not included) |

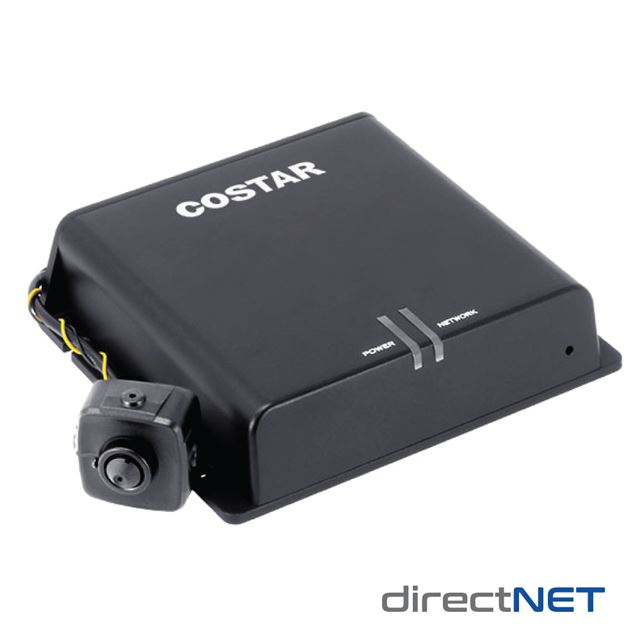

This is a Full HD H.265 network video encoder designed to convert analog camera feeds into digital IP streams. It supports two interchangeable optics: a 2.4mm board-type lens for ultra-wide views or a 4.3mm sharp cone lens for standard coverage. The encoder compresses video using H.265 (HEVC), H.264, or Motion JPEG at up to 12 Mbps and provides Quadruple Streaming for flexible bandwidth management, along with 3D Noise Reduction and configurable Wide Dynamic Range.
The unit integrates seamlessly into IP networks using DirectNET 2.0 and ONVIF Profile S protocols. It operates within a temperature range of -10°C to +50°C and is powered solely by Power over Ethernet (IEEE 802.3at, Class 4) or optionally by 12VDC, with a maximum consumption of 6.3 watts. It is NDAA compliant, includes two-way audio, supports local storage via microSDXC slot up to 512GB, and features one alarm input/output.
