• Mounting kit includes versatile roof or parapet mounting hardware
• Corrosion resistant aluminum construction
• Maximum roof mount load 20lbs (9kg), maximum parapet mount load 40lbs (18kg)
• Inlet dimension 1.25” (compatible with 1.5 NPT pipe threads using CDC2600CPK adaptor included)
• Swivel design for easy access to the dome housing
• Compatible with both Costar StarDome and StarDome M series PTZ’s
• Light grey power coat finish
| Maximum Load | 40lbs (18kg) |
| Unit Weight | 7.8lbs (3.5 kg) |
| Dimensions (H x D) | 2.98ft (910mm) X 2.06ft (628mm) |

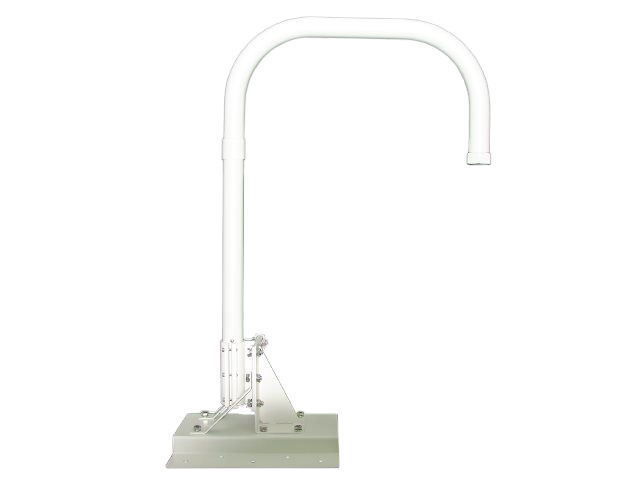

This is a corrosion-resistant aluminum mount designed for parapet or rooftop installation. It has two distinct maximum load ratings: 20 lbs (9 kg) for a standard roof mount and 40 lbs (18 kg) for a parapet mount. The mount features a swivel design and has a 1.25-inch inlet, compatible with 1.5-inch NPT pipe threads using an included adapter (CDC2600CPK). It is finished in light grey powder coat. The mount is listed as compatible with specific Costar/StarDome PTZ series. The provided specifications do not include operating temperature, ingress protection rating, or specific wind load ratings.
