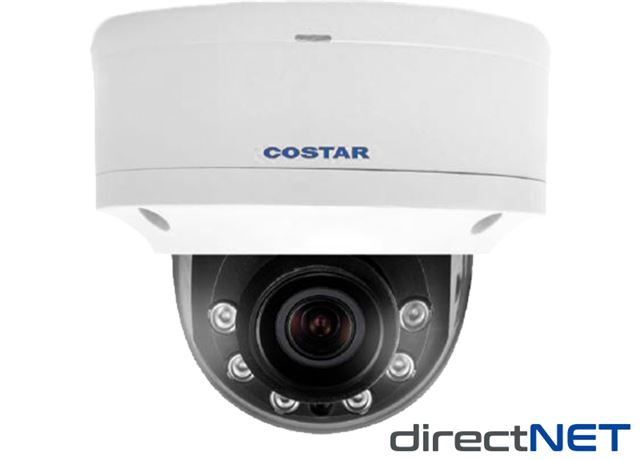

CDI2522VIFWH - 2MP H.265 DirectNET Outdoor Dome Camera IR LEDs - IDIS
• Max. resolution 2 MP (1920 x 1080)
• 7 - 22mm Motorized Vari-Focal lens
• 1/3" CMOS Progressive Scan image sensor
• True day / night with IR cut filter
• 6 IR LED’s with a 100ft Range
• DirectNET protocol; iNEX™ protocol selectable
• Micro SD memory card supported
• Back Light Compensation (BLC)
• Digital Noise Reduction (DNR)
• True Wide Dynamic Range (TWDR)
• Multiple compression (H.265, H.264, MJPEG)
• IP67 weatherproof rated
• IK10 vandal resistant housing
• Power over Ethernet (PoE) or 12VDC
| Video | |
|---|---|
| Image Sensor | 1/3” CMOS |
| Maximum Resolution | 1920x1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-Focal (f= 2.8 – 12mm, F1.6 - 2.7) |
| Iris Control | P-iris |
| Angular Field of View | Wide: 33.8º(H), 18.8º(V), 39.2º(D) Tele: 14.2º(H), 8º(V), 16.2º(D) Pan: -176° ~ 176°, Tilt: 0° ~ 66°, Rotate: -90° ~ 90° |
| Minimum Illumination | COLOR: 0.1 lux @ F1.6 B/W: 0 lux (IR LED ON) |
| S/N Ratio | More than 45dB |
| Maximum Frame Rate | 30ips @1920x1080 |
| Video Resolution | DirectNET Protocol Mode: 1920x1080, 1280x720, 704x480, 640x360, 352x240 iNEX protocol mode: 1920x1080, 1280x720, 704x480, 640x360, 352x240 |
| Video Compression | H.265, H.264, M-JPEG** (** iNEX Protocol only) |
| Video Compression Level | Basic, Standard, High, Very High |
| Multi-Video Streaming | DirectNET Protocol Mode: Quadruple streams iNEX Protocol Mode: Triple streams |
| Dynamic Range | 120dB |
| True Day & Night | Yes (ICR) |
| IR Distance (number of LEDs) | 30 m / 98.4 ft (6 ea) |
| Intelligent Video Analytic | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Analog Video Output | 1 BNC (Accessory) |
| Network | |
| Port | RJ-45 10/100 Base-T 1 port |
| Network Protocols | DirectNET Protocol Mode iNEX Protocol Mode: RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP |
| Streaming Mode | Unicast, Multicast |
| Security | |
| DirectNET Protocol Mode | SSL Encryption |
| iNEX Protocol Mode | Multi-User Authority, IEEE 802.1x, IP Filtering, HTTPS, SSL Encryption |
| Maximum User Access | DirectNET protocol mode: Direct camera access is unavailable. iNEX protocol mode: 10 (Live), 1 (Recording), 1 (Search), 2 (Admin) |
| Alarm and Event | |
| Alarm Input / Output | N/A |
| Trigger Events | Motion Detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) Encryption Type: SSL, TLS |
| Environmental | |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +140°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE (IEEE 802.3af class 3) |
| Power Consumption | 11.7W |
| Regulatory Approvals | FCC, CE, KC |
| Mechanical | |
| Dimensions (Ø x H) | Ø160mm x 116.5mm (Ø6.30" x 4.59") |
| Unit Weight | 1.21 kg (2.66lb) |
This is a 2-megapixel Full HD (1080p) motorized vari-focal dome camera designed for demanding outdoor environments. It features a 1/3-inch CMOS sensor and a lens with a P-Iris and focal length adjustable from 2.8mm to 12mm, providing a horizontal field of view from 33.8 degrees (wide) down to a very focused 14.2 degrees (telephoto). It outputs a maximum of 30 frames per second at 1080p resolution.
For low-light operation, it incorporates six infrared LEDs with an effective range of 30 meters. It features 120 dB True Wide Dynamic Range (WDR) to handle high-contrast lighting. A notable feature is its dual-protocol support, operating in either the proprietary DirectNET mode for simplified integration with IDIS NVRs or a standard iNEX protocol mode for third-party compatibility. It includes a BNC video output for analog monitoring. The camera is designed for harsh outdoor environments, operating in an extreme temperature range from -40°C to 60°C. It is powered via PoE (IEEE 802.3af, Class 3), with a power consumption of 11.7 watts.
