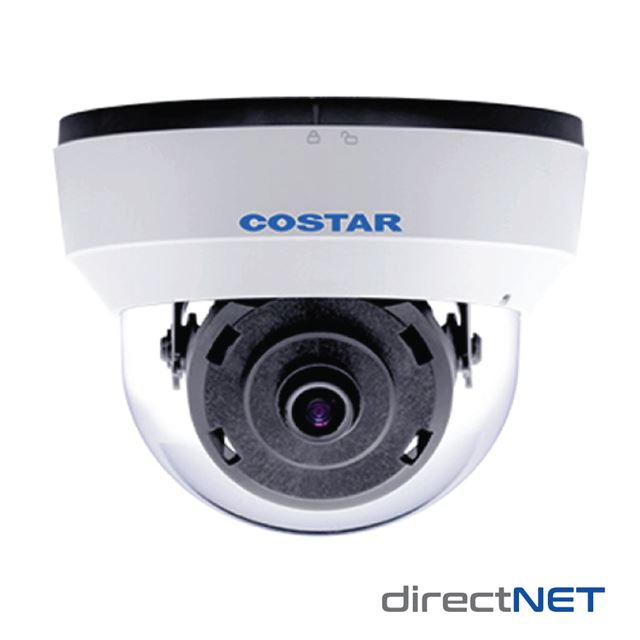

CDI2D28W - 2MP DirectNET Indoor Dome IR Camera 2.8mm - IDIS
- Max. resolution 2 MP (1920 x 1080)
- 1/2.8″ CMOS Progressive Scan image sensor
- 2.8 -Fixed Lens
- True day / night with IR cut filter
- DirectNET protocol; iNEX™ protocol selectable
- Micro SD memory card supported
- Back Light Compensation (BLC)
- Digital Noise Reduction (DNR)
- True Wide Dynamic Range (TWDR)
- Multiple compression (H.265, H.264, MJPEG)
- Power over Ethernet (PoE)
- NDAA Compliance
| Power | |
| Source | PoE |
| PoE Standard | IEEE 802.3af Class 2 |
| Power Consumption (PoE) | 3.6W |
| Sensor | |
| Image Sensor | 1/2.8" CMOS |
| Scanning Mode | Progressive Scan |
| Resolution | 1920 x 1080 |
| Lens | |
| Lens Type | Fixed Lens |
| Focal Length | f = 2.8 mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| IR LEDs | --- |
| IR Range | --- |
| Minimum Illumination | 0.2 Lux @ F2.0 (Color) 0 Lux @ (IR LED ON) |
| S/N Ratio | More than 45 dB |
| Dynamic Range | 120 dB (True WDR) |
| Electronic Shutter | Auto / Manual: 1/30 ~ 1/10,000 |
| Anti-Flicker (Slow Shutter) | 1/7.5, 1/15 |
| Viewing Angle | 111.6° (H), 61.45° (V), 127.3° (D) |
| CVBS Video Output | --- |
| Camera Functions | |
| Alarm Input / Output | Input 1 ea / Output 1 ea |
| Audio Input / Output | --- |
| Auto Exposure | Yes |
| Auto White Balance | Yes |
| Back Light Compensation | On / Off |
| Day / Night | IR Cut Filter with Auto Switch |
| Digital Noise Reduction | Configurable 2DNR / 3DNR |
| Event Buffering | Up to 60 MB |
| Privacy Masking | 8 Zones |
| Event Notification | Remote S/W, Email (with image) |
| Event Trigger | Motion Detection, Tampering, Trip Zone |
| Motion Detection | Motion Adaptive Transmission (MAT) |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Supported |
| Video Resolution | 1920 × 1080, 1280 × 720 640 × 360, 352 × 240 |
| Max Frame Rate (WDR) | 30 ips @ 1920 × 1080 |
| Bitrate | Up to 18 Mbps |
| Bitrate Control | Constant Bitrate / Variable Bitrate |
| Edge Storage | micro SD / SDHC / SDXC (up to 512 GB) |
| Streaming Video | Quadruple |
| Camera Protocol | DirectNET, iNEX, ONVIF Profile S (2.4) |
| Security | |
| Security Features | SSL Encryption, Multi-user Authority, HTTPS, SSL Encryption, IP Filtering |
| Remote Access | |
| Client | DirectNET NVR |
| Connection | DirectNET |
| General Information | |
| Heater | --- |
| Vandal Proof Rating | --- |
| Approvals | FCC, CE, KC |
| Humidity | 0% ~ 90% |
| Temperature | 14°F ~ 122°F (-10°C ~ +50°C) |
| Dimensions (Ø × L) | 4.33" × 3.46" (110 mm × 88 mm) |
| Weight | 0.54 lbs (0.24 kg) |
This is a 2-megapixel Full HD (1080p) indoor dome camera designed for general surveillance. It features a 1/2.8-inch CMOS sensor and a fixed 2.8mm F2.0 lens, providing a wide 111.6° horizontal field of view. It outputs a maximum of 30 frames per second at 1080p resolution.
Its imaging features include 120 dB True Wide Dynamic Range (WDR) to handle backlit scenes and configurable 2D/3D Digital Noise Reduction (DNR). It provides one alarm input and output for external devices but does not include audio I/O or built-in infrared illuminators. It supports modern H.265 and H.264 compression, quadruple video streaming, and local storage via a microSD card slot (up to 512GB). The camera operates in multiple protocol modes: the proprietary DirectNET for IDIS systems, iNEX, and standard ONVIF Profile S. It is designed for indoor use within a standard temperature range of -10°C to 50°C and is powered solely via PoE (IEEE 802.3af, Class 2), consuming a low 3.6 watts.
