- • 5 Mega Pixel Resolution
- • Smart Codec
- • Intelligent Video Motion Detection, Intrusion Detector
- • Triple Stream(H.264, MJPEG)
- • Onvif Profile S and T
- • Easy Install : Zero Configuration, Discovery, PoE
- • Multi User Authority, IP Filtering, HTTPS, SSL
- • Cross Web Browsing(IE, Safari, Firefox, Chrome)
- • SmartManager
- • Central Point VMS
- • Central Point Mobile Android™ iOS™
| Lens | |
| Lens | Fixed-focal 1.05mm, F2.8 |
| Angle of View | 180°(H), 180° (V) |
| Min. Illumination | Color : 0.3Lux@F2.8 / BW : 0.07Lux@F2.8 |
| Image Specifications | |
| Scanning Mode | Progressive Scan |
| Noise Reduction | 2DNR, 3DNR |
| Digital Zoom | Yes(ROI) |
| Exposure Control | Auto |
| White Balance Control | Auto, Incandescent, Fluorescent, Outdoor |
| Image Effect | Flip, Mirror, Defog, HLC |
| Flicker Free Mode | 50Hz, 60Hz |
| Shutter Speed | Auto(1/10,000~1sec), Manual |
| IR Illuminator | n/a |
| Wide Dynamic Range | D-WDR (72db) |
| Day and Night Mode | True D/N(Auto, Day, Night) |
| Video | |
| Compression | H.264(Baseline, Main, High Profile), MJPEG |
| Bitrate Control | VBR, CVBR |
| Resolution | 2592x1944, 2048x1536, 1944x1944, 1440x1440, 1280x1024, 1280x960, 1024x1024, 1024x768, 720x720, 640x480, 480x480 |
| Streaming | Triple Stream : H.264x2, MJPEGx1 |
| Frame Rate | Max. 15fps |
| Event & Analytics | |
| Motion Detection Area | 16 Programmable Area(Include Area 8, Exclude Area 8) |
| Privacy Mask Zone | 8 Programmable Zone |
| Video Contents Analytics | Tampering, Motion Detection, Intrusion Detector |
| FTP Uploading | MJPEG |
| Event Notification | E-mail, FTP, Notification Server, XML Notification, Audio Alert |
| Login Authority | Administrator, Operator, Guest |
| Manual Trigger | 4 Programmable Trigger |
| Event Buffering FTP | Pre : 10sec, Post : 60sec |
| Audio Alert | User Defined 3 Audio File |
| Event Buffering | Pre : 30sec, Post : 30sec |
| Sensor Specifications | |
| Image Sensor Type | 1/1.8” SONY Exmor CMOS Sensor |
| Pixels | 3096(H) x 2094(V) |
| Network | |
| Protocol | TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour |
| Client Software | Web, SmartManager, Client S/W, Mobile S/W |
| Max. User Connection | Live : 10 Users, Playback : 3 Users |
| Camera Protocol | Onvif S and T |
| Mobile Support | Android, iOS |
| Security | Multi User Authority, IP Filtering, HTTPS, SSL |
| Audio | |
| Audio Compression | G.711 |
| Audio Streaming | 2 Way |
| Audio Input/Output | 1 Input, 1 Output(Terminal Block) |
| Composite Out | Yes / 3pin connector |
| Storage | |
| Micro SD Type | SDHC, SDXC,(Class 10,128GB Max) |
| Micro SD Recording Mode | Event, Continuous |
| System | |
| Web Browsing | IE, Chrome, Safari, Firefox |
| Software Reset | Restart, Reset, Factory Default |
| Network Time Sync | NTP Server, Synchronized Computer, Manual |
| Remote Upgrade | Yes |
| Environmental | |
| Operating Temperature | 14°F ~ 122°F (-10°~+50ºC) |
| Operating Humidity | 0~90% RH(Non-Condensing) |
| Electrical | |
| Power Source | PoE(IEEE802.3af Compliance, Class0)/12VDC |
| Power Consumption | 110mA(5.3W)@PoE ~ 400mA(4.8W)@12VDC |
| Mechanical | |
| Dimension | 4.69”(Ø)x2.51”(H)in |
| Net Weight | 0.60lbs |
| Connections | |
| Ethernet | RJ-45(10/100Base-T) |
| Alarm | 1 Input, 1 Output(Terminal Block) |
| Cable Harness | RJ-45, 12VDC, Alarm in/out, Audio in/out |
| Approvals | |
| Approvals | FCC, CE, KC |
| General Information | |
| Revision | V1.2 |
| Date | 04/26/19 |

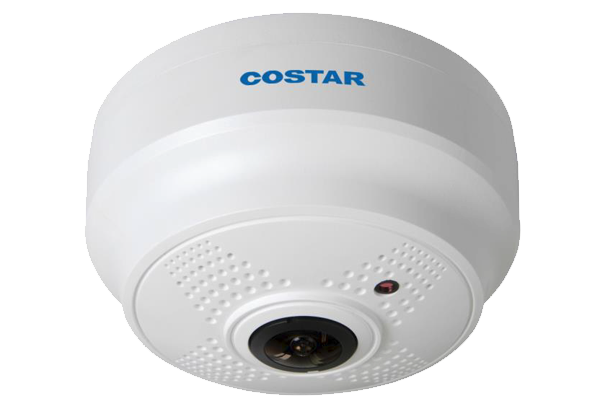

This is a 5 Megapixel (2592x1944) true 360-degree ceiling-mount fisheye camera, utilizing a high-end 1/1.8-inch Sony Exmor CMOS sensor paired with an ultra-wide 1.05mm F2.8 fixed lens to capture a complete 180-degree horizontal and vertical hemispherical view. Its core function is built-in dewarping software that allows the single fisheye image to be transformed into multiple standard video feeds, such as panorama, quad-view, or a single extracted region of interest for detailed monitoring.
The camera provides a maximum frame rate of 15 fps at full resolution using H.264 and MJPEG compression and includes basic analytics like intrusion detection. It features Digital Wide Dynamic Range (72dB) and supports two-way audio. Designed as an indoor solution, it operates from -10°C to +50°C and is powered by PoE (IEEE 802.3af) or 12VDC, consuming up to 5.3 watts. It supports local microSD storage, integrates via ONVIF Profile S and T, and includes one alarm input/output.
