- • 32” LED HD monitor
- • HDMI digital inputs
- • BNC, VGA, and S-Video analog inputs (BNC analog looping output)
- • OSD selectable aspect ratio; 16:9 or 4:3
- • Built-in stereo speakers and audio amplifier
- • HDMI, VGA, and audio cables included
- • VESA mounting pattern; 200 x 100mm
- • Desk stand included
| Power | |
|---|---|
| Power Source | 100 ~ 240V AC |
| Power Consumption | < 18 W |
| Input / Output | |
| Digital Video | HDMI: Up to 1920 x 1080 VGA: Up to 1920 x 1080 |
| Analog Video | BNC: In + Looping Out S-Video: In |
| Audio Inputs | 1 x 3.5 mm mini-jack 1 x 3.5 mm mini-jack |
| Analog Outputs | Output active for inputs for analog and digital audio |
| Audio Amplifier | 1 Watt / Channel |
| Speakers | 2 built-in |
| Monitor | |
| Viewable Area (W x H) | 27.5” x 15.46” |
| Viewable Angle (H x V) | 178° / 178° |
| TV Lines | 1080 H-TVL |
| Color Depth | 24 bits; (16.7 million colors) |
| Monitor Aspect Ratio | 16:9 |
| Display Aspect Ratio | 16:9 or 4:3 |
| Contrast Ratio | 3000:1 |
| Brightness | 300 CD/m2 |
| Response Time | 6.5 ms |
| Refresh Rate | 60, 70, 75 Hz (Depending on resolution) |
| Filter | 3D Comb Filter |
| Noise Reduction | 3D De-interlace |
| Display | |
| Resolutions | 1360 x 768; 1280 x 1024; 1024 x 768; 800 x 600; 640 x 480; 720 x 400 |
| Input Resolutions Supported | |
| Resolutions | 1920 x 1080 (scaled); 1280 x 1024; 1024 x 768; 800 x 600; 640 x 480; 720 x 400 |
| General | |
| Case Material | Plastic |
| Mounting | VESA Standard 200 x 100mm |
| Accessories | Power Cord, Stand, 3.5mm Audio Cable, VGA Cable, HDMI Cable, and User’s Manual |
| Certifications | CE, FCC, HDMI, UL (E366334) |
| Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity | < 85% |
| Dimensions | 29.28" x 17.45" x 2.31" (743.95 x 443.40 x 58.70 mm) |
| Weight | 23 lbs (10.8 kg) |

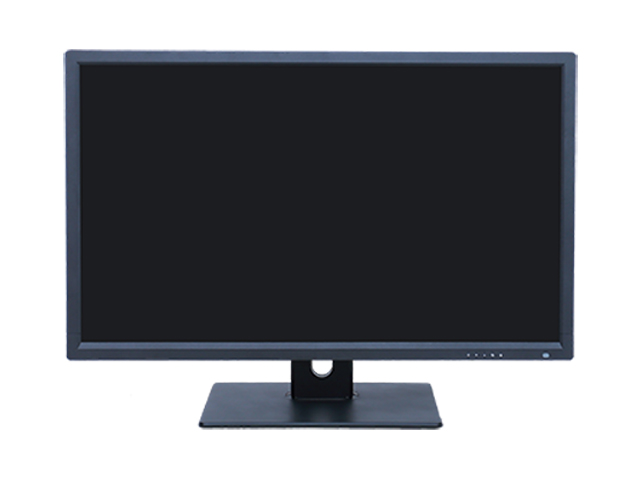

This is a 32-inch LED monitor supporting HD video inputs. It features a viewable area of 27.5" x 15.46" with a 16:9 aspect ratio, a contrast ratio of 3000:1, and a brightness of 300 cd/m². It supports video inputs via HDMI, VGA (both up to 1920 x 1080), BNC, and S-Video, and can display various input resolutions which it scales to its native 1360 x 768 panel. It includes two built-in 1-watt speakers and corresponding audio inputs and outputs. The monitor incorporates a 3D comb filter and 3D de-interlace for noise reduction. It is housed in a plastic case with VESA 200 x 100mm mounting. It operates within a temperature range of 0°C to 40°C (32°F to 104°F) at less than 85% humidity. Power input is 100-240V AC with a maximum consumption of under 18 watts.
