• Max. resolution 4K (3840 x 2160)
• H.265, H.264 Compression
• Up to 16 Channels Full HD display
• Supports single, 2×2, 3×3 or 4×4
• HDMI, CVBS ports
• OnVIF protocol supported
• Compatible with CI series NVRs
• Event detection functions included: Motion, Video loss, Tampering
• 12VDC
| Power | |
|---|---|
| Power Input | 12VDC |
| PoE Class | --- |
| Operation Temperature | 32°F ~ 104°F (0°C ~ 40°C) |
| Power Consumption | 10W |
| Consumption | 10 Watts |
| Network | |
| Network Connection | Gigabit Ethernet x 1 |
| Max. Throughput | 576Mbps |
| Video Inputs | |
| Video Inputs | 1 HDMI, 1 CVBS |
| Video Input Resolution | Up to 4K (3840 x 2160) |
| Video Input | 16ch IP |
| HDMI | 3840x2160, 1920x1080 |
| CVBS | 640x480 |
| Display Resolution | Support Devices OnVIF Protocol |
| Display Speed | Up to 480fps |
| Video Compression | H.265, H.264(MP) |
| Physical Specifications | |
| Weight | 0.99 lbs (0.45 kg) |
| Dimensions (W x D x H) | 6.10" x 4.02" x 1.57" (155mm x 102mm x 40mm) |
| Rear Panel | |
| Source | 12VDC |
| PoE | --- |
| Approvals | |
| Approvals | FCC, CE |
| Product Information | |
| Model | CR16PVM |
| Part Number | 2419 OS |
| Revision | v1.0 |
| Document Revision | Rev. 04/28/20 |

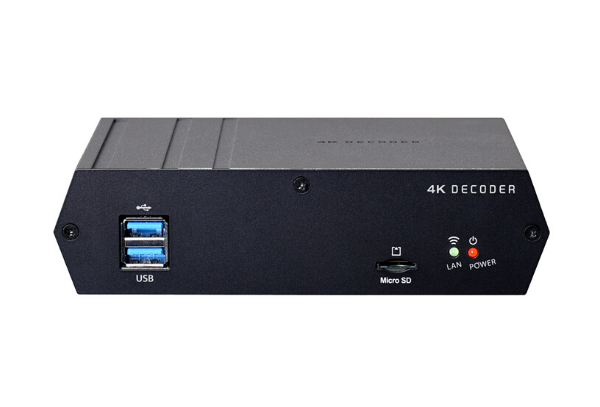

This is a 16-channel IP video decoder with a 4K HDMI output. It supports up to 16 IP camera inputs, with video compression formats including H.265 and H.264. The maximum combined display speed is up to 480 fps. It also features one HDMI input (up to 4K resolution) and one CVBS analog input (640x480). Network connectivity is via a single Gigabit Ethernet port with a maximum throughput of 576 Mbps. The device is powered by 12VDC with a consumption of 10 watts. It operates within a temperature range of 0°C to 40°C (32°F to 104°F). Its dimensions are 6.10" x 4.02" x 1.57" and it weighs 0.99 lbs.
