CR8000EV - 8 Channel Edge Video Recorder - IDIS
• 8 channel BNC inputs
• H.264 compression
• Images per second recording: 480 ips @ CIF (CR1600EV) 240 ips @ CIF (CR8000EV)
• Two-way audio communication
• 1-channel audio recording 1-channel audio playback
• Web-enabled remote access via Internet
• 4x Digital Zoom on playback
• Two USB 2.0 ports
• Video monitor outputs: 1 VGA, 1 BNC (SPOT)
• USB mouse operation (mouse not included)
• BNC and VGA video monitor outputs
• Text Interface for up to: 8 or 16 inputs using RS485, RS232 and TCP/IP
| Power | |
|---|---|
| Power Source | DC12V |
| Power Consumption | 4.16 Amps |
| Input / Output | |
| Video Inputs | 8 or 16 |
| Audio In / Audio Out | 1 RCA In / 1 RCA Out |
| PTZ Dome Control | RS485 |
| Monitor Output | 1 ch. composite, VGA |
| Spot Monitor Output | 1 channel composite |
| Alarm Input | 4TTL (NO) |
| Alarm Output | 1 Relay |
| Auxiliary In | RS232, RS485, 2 USB 2.0 |
| User Interface | Keyboard controller, mouse, remote |
| Recording and Playback | |
| Compression | H.264 |
| Record Rate | 480 ips @ CIF (CR1600EV) 240 ips @ CIF (CR8000EV) |
| Record Resolution | 720x480, 740x240, 352x240 |
| Advanced Features | 2X zoom, clip copy, motion detection |
| Storage | |
| Recording | Up to 4TB SATA HDD |
| Archiving | USB Flash Drive, USB HDD |
| Hard Drive Sizes | 1000, 2000, 3000, 4000 GB |
| Network | |
| Connection | Ethernet |
| Protocols | DHCP, DVRNS, ADSL, Manual |
| Remote Software | RASplus, Webgaurd, Internet Explorer, MAC Watch, MAC Search, iNEX Client |
| Remote Connections (simultaneous) | 10 Watch connections, 2 Search connections, 2 Admin connections |
| System | |
| Operating System | Embedded Linux |
| Data Export | USB Flash Drive, USB HDD |
| Disk Management | Temperature check, S.M.A.R.T. diagnosis, auto-recovery |
| General Operating | |
| Operating Temperature | 41°F to 104°F (5°C to 40°C) |
| Approvals | FCC, CE, UL, CB |
| Dimensions | 1.2U Rack 16.9" x 2.1" x 10.5" 430 x 54 x 267 mm |

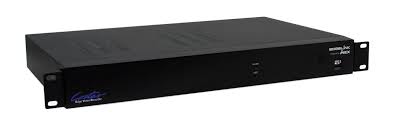

The CR8000EV is an edge video recorder designed for standard-definition analog camera systems, available in 8 or 16-channel configurations. It records using H.264 compression at resolutions up to 720x480, with a maximum recording rate of 240 images per second at CIF resolution. Video outputs include one composite monitor output and one VGA output, along with a composite spot monitor output.
The system includes basic alarm I/O, audio I/O, and serial ports for PTZ control. Storage is handled by a single internal SATA HDD bay supporting up to 4TB. Network connectivity is provided via an Ethernet port for remote viewing. It operates on an embedded Linux system within a temperature range of 5°C to 40°C, powered by 12V DC with a consumption of 4.16 Amps (approximately 50W).
