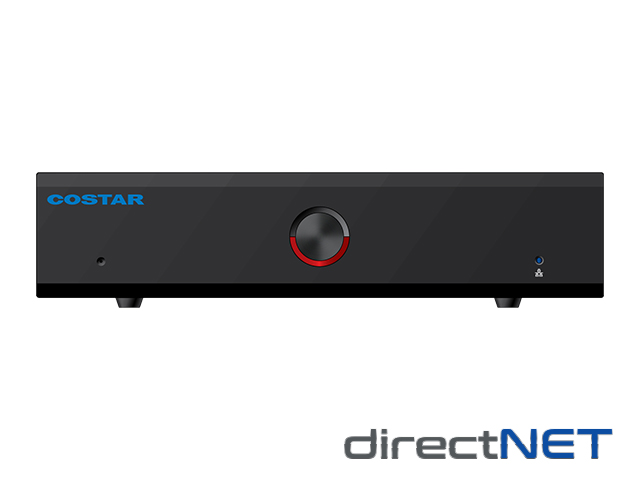

CRIA04 - 4 Channel Video Analytics Box - IDIS
• Compatible with H.264 and H.265 IP cameras
• Compatible with the XDi 20 Series Recorders
• DirectNET protocol supported
• Analytic algorithms supported o Heat Mapping o People Counting o Queue Management
• Firmware upgrades available via network • Firmware duplication and auto-recovery functions to enhance system stability
• Configuration of device settings and the integrated management of multiple VA boxes is done on the Network Video Recorder
• Power over Ethernet (POE) and 12VDC
| Power | |
|---|---|
| Source | 12VDC or PoE |
| PoE Standard | IEEE802.3af class 3 |
| Consumption | 6.6 watts |
| Video | |
| Video Input | 1 RJ-45 |
| Ethernet | 10M/100Mbps/1Gbps |
| DC12V Input | Terminal Blocks |
| LED Indicators | Power (Status), Network |
| Button/Switch | Reset |
| General | |
| Approvals | FCC, CE, KC |
| Humidity | 0% ~ 90% |
| Operating Temperature | 0°C ~ 40°C (-32°F ~ 104°F) |
| Dimensions (L x H x D) | 7.9” x 1.7” x 6.0” (200mm x 44mm x 152.3mm) |
| Weight | 1.6 lbs. (740g) |
This is a 4-channel video analytics processing unit. It receives video input via a single RJ-45 Gigabit Ethernet port. It can be powered either by a 12VDC source connected to terminal blocks or via IEEE 802.3af class 3 PoE from the network, with a consumption of 6.6 watts. The device operates within a temperature range of 0°C to 40°C (32°F to 104°F) and up to 90% humidity. Its dimensions are 7.9" x 1.7" x 6.0" and it weighs 1.6 lbs. It features a reset button and LED indicators for power and network status.
