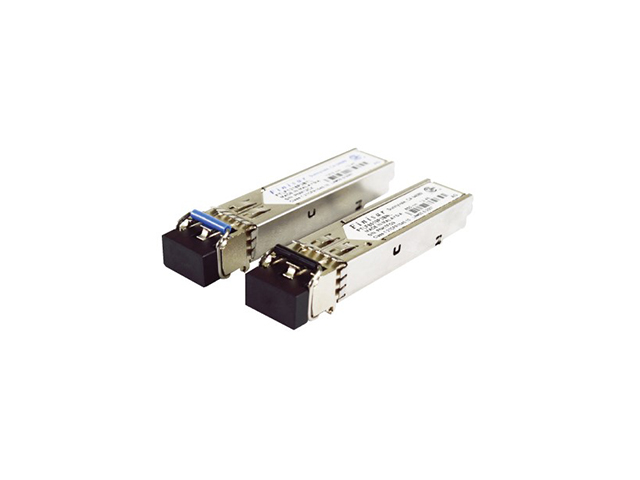

CRIFS - Single-mode Dual Fiber SFP Transceiver - IDIS
Part number:
Price:
- • Up to 40 kilometers (131,234 feet)
- • 1310nm laser transmitter
- • Single-mode dual fiber transceiver
- • Hot-pluggable SFP footprint
| Interface - SFP Transceiver | |
|---|---|
| Voltage Range | 3.3V |
| Data Rate | 1.25Gb/s |
| Wavelength | 1310nm |
| Output Power | -2~+3dBm |
| Sensitivity | ≤ -24dBm |
| Distance | 40KM |
| Fiber | SM (Single-Mode) |
| General Information | |
| Temperature | 32°F to 185°F (0°C to 70°C) |
| Weight | 0.04 lbs. (17.5 g) |
| Dimensions (W x H x D) | 0.54” x 0.48” x 2.23” (13.7 x 12.4 x 56.6 mm) |
| Approvals | FCC, CE, KC |
Name
Description
Size
Downloads
File
CRIFS_Spec_Sheet.pdf
0.1mb
This is a single-mode, dual-fiber SFP transceiver module for 1 Gigabit network connections. It operates at a wavelength of 1310nm with a maximum data rate of 1.25 Gb/s and is rated for transmission distances up to 40 kilometers over single-mode fiber. Its optical output power range is -2 to +3 dBm with a receiver sensitivity of ≤ -24 dBm. It operates on a 3.3V power supply. The transceiver is designed for an operating temperature range of 0°C to 70°C (32°F to 185°F). Its dimensions are 0.54" x 0.48" x 2.23" and it weighs 0.04 lbs.
