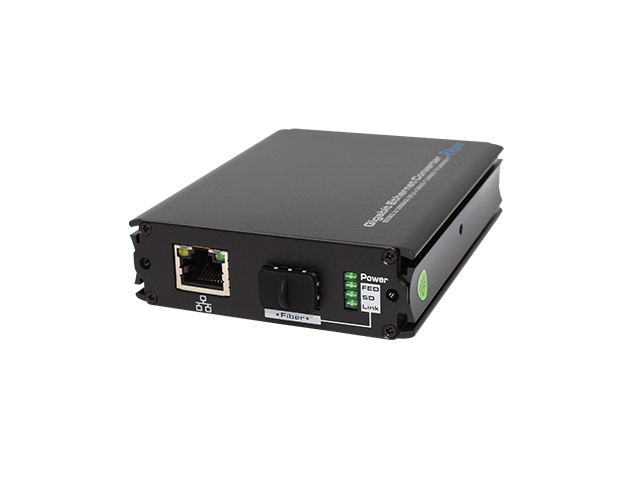

CRIMC - Gigbit Fiber Optic Media Converter - IDIS
Part number:
Price:
• Support converting between 10/100/1000 Base-T and 1000 Base-X
• Supports automatic MDI / MDI-X detection
• Support 6kV surge protection / 8kV ESD protection
• Support SFP optical module with differnt performance
| Power | |
|---|---|
| Source | 12-24 VDC |
| Consumption | 5 Watts |
| Interface | |
| RJ45 | Connectivity: RJ45, Automatic MDI/MDI-X sensing Wire Type: CAT5 or better Distance: Up to 100m Speed: 10/100/1000 Base-T |
| SFP Slot | |
| Connectivity | SFP slot Wire Type: Fiber optic Speed: 100 Base-LX, 1000 Base-LX |
| General | |
| Network Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3z |
| Temperature | -40°F to 167 °F (-40°C ~ 75 °C) |
| Weight | 0.35 lbs. (160 g) |
| Approvals | FCC, CE, KC |
| Dimensions (W x H x D) | 4.05" x 3.22" x 0.98" (103mm x 82mm x 25mm) |
Name
Description
Size
Downloads
File
CRIMC _Costar_Spec.pdf
0.5mb
File
CRIMC_ User_Manual.pdf
0.6mb
This is a Gigabit Ethernet media converter. It provides an RJ45 port for copper connections supporting 10/100/1000 Base-T over CAT5 or better cable up to 100 meters, and an SFP slot for fiber optic connections supporting 100 Base-LX and 1000 Base-LX. It complies with standard IEEE 802.3 network protocols. The device operates on 12-24 VDC power with a consumption of 5 watts. It is designed for a wide operating temperature range of -40°C to 75°C (-40°F to 167°F). Its dimensions are 4.05" x 3.22" x 0.98" and it weighs 0.35 lbs.
