CRSM5-EAKIT - Audio Surveillance Kit for IP Cameras PoE - IDIS
- • Omni-directional Electret element
- • 25’ range in all directions
- • Frequency response: 200-16Khz
- • Low noise MOSFET pre-amplifier
- • Line level, unbalanced output
- • Adjustable gain
- • Treble boost circuit
- • Sensitivity –45DB
- • Limiter circuit
- • 3 position Euro-style connector
- • Power: 12 VDC @ 10mA
| Microphone | |
|---|---|
| Element Type | Omni-directional Electret element |
| Range | 25' range in all directions |
| Frequency Response | 200-16Khz |
| Pre-amplifier | Low noise MOSFET pre-amplifier |
| Output Type | Line level, unbalanced output |
| Gain | Adjustable gain |
| Audio Circuit | Treble boost circuit Limiter circuit |
| Connector | 3 position Euro-style connector |
| Power Conditioning | On-board voltage regulator and RFI filtering |
| Sensitivity | -45DB |
| Mounting | Flush mountable (can be mounted on a single gang electrical box) |
| S/N Ratio | More than 60DB |
| Sensitivity | -45DB |
| Weight | 0.03lbs |
| Power | 12 VDC @ 10mA |
| Dimensions | L 4.7" x W 2.9" x H 0.9" |
| Interface/Amplifier | |
| Audio Output | RCA or 3.5mm audio output jack |
| Audio Output Isolation | Transformer isolated audio output |
| Audio Output Control | Adjustable audio output level |
| Network Ports | RJ45 CAT5 in/out jacks |
| PoE Support | Modes A and B of IEEE802.3af supported |
| Cable Type | Straight through CAT5 connections (no crossover) |
| Voltage Input | 48-60Vdc |
| Internal Regulator | 15vdc internal Voltage regulator supplies power to microphone |
| Current Consumption | 15ma with microphone connected |
| Connector Type | Euro-style connector |
| Indicator | Led power indicator |
| Protection | Auto polarity protected & fused |
| Dimensions | L 3.3" x W 2.0" x H 1.6" |

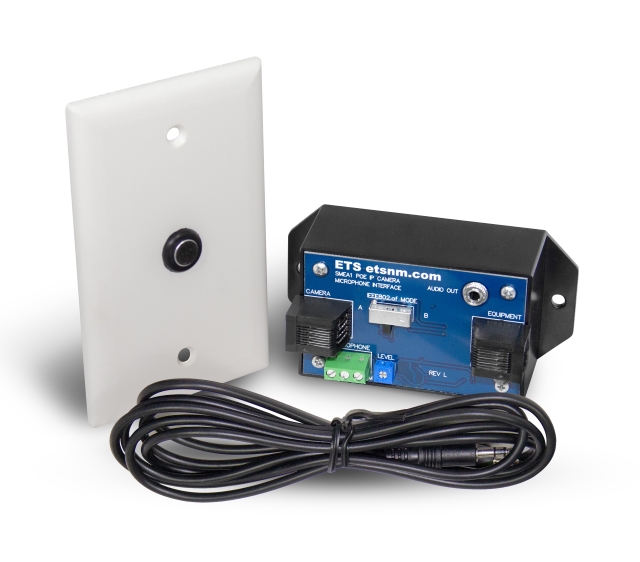

This is an audio surveillance kit consisting of a microphone and a PoE-powered interface/amplifier unit. The microphone is an omnidirectional electret type with a specified range of 25 feet, an adjustable gain, and features including a treble boost and limiter circuit. It operates on 12 VDC supplied by the interface unit. The interface unit provides an RJ45 network pass-through with support for IEEE 802.3af PoE (modes A and B), delivering 48-60V DC input. It contains a voltage regulator to power the microphone and provides an isolated audio output via RCA or a 3.5mm jack with adjustable output level. The microphone's frequency response is 200Hz to 16kHz, and its S/N ratio is >60dB. The physical dimensions of the microphone are 4.7" x 2.9" x 0.9" and the interface unit is 3.3" x 2.0" x 1.6". Operating temperature and ingress protection ratings are not specified.
