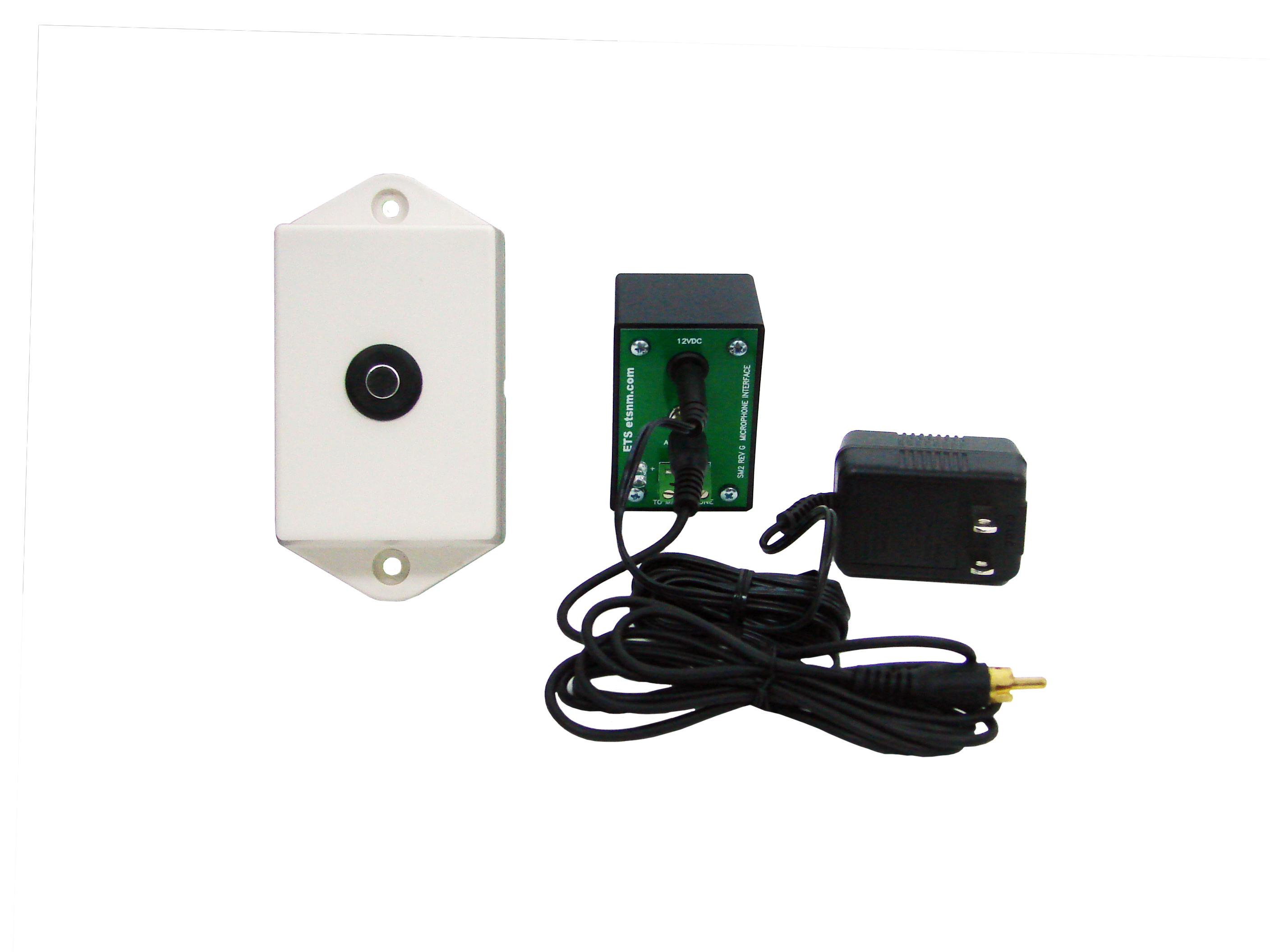

The CRM5-LEKIT is a single zone audio surveillance system designed to connect directly to an audio recorder, video recorder, monitor (with a built-in speaker), remote monitoring equipment, etc. This kit includes an SM1 pre-amplified microphone, SM2 interface adapter, DC12V AC adapter, and a 3’ RCA patch cable.
| SM1 Microphone Specifications | |
|---|---|
| Element Type | Omni-directional Electret element |
| Range | 25' range in all directions |
| Amplifier | Low noise MOSFET pre-amplifier |
| Output | Line level, unbalance output |
| Gain Control | Adjustable gain |
| Audio Processing | Treble boost circuit with on/off options that enhances the clarity of time lapse recordings |
| Installation | Easy cable run termination |
| Mounting Options | Flush or surface mountable on a single gang electrical box |
| Power Requirements | DC12V @ 10mA |
| SM2 Interface Adapter Specifications | |
| Connection | Standard RCA jack for connection to tape recorder, etc. |
| Cable Termination | Easy cable run termination |
| Indicator | LED power indicator |
| Protection | Reverse polarity protected and fused |
| Dimensions | 1.54" W x 2.75" L x 1.25" H |
| Power Requirements | DC12V @ 10mA |
This is an audio kit consisting of an omnidirectional electret microphone and a separate interface adapter. The microphone has a specified range of 25 feet and features an adjustable gain, a low-noise pre-amplifier, and a treble boost circuit. It is designed for flush or surface mounting on a standard electrical box. The interface adapter provides a standard RCA jack output for connecting to recording equipment and includes an LED power indicator and reverse polarity protection. Both the microphone (SM1) and the interface adapter (SM2) require a 12V DC power supply, each drawing 10mA. Operating temperature, ingress protection, and specific environmental ratings are not provided in the specifications.
