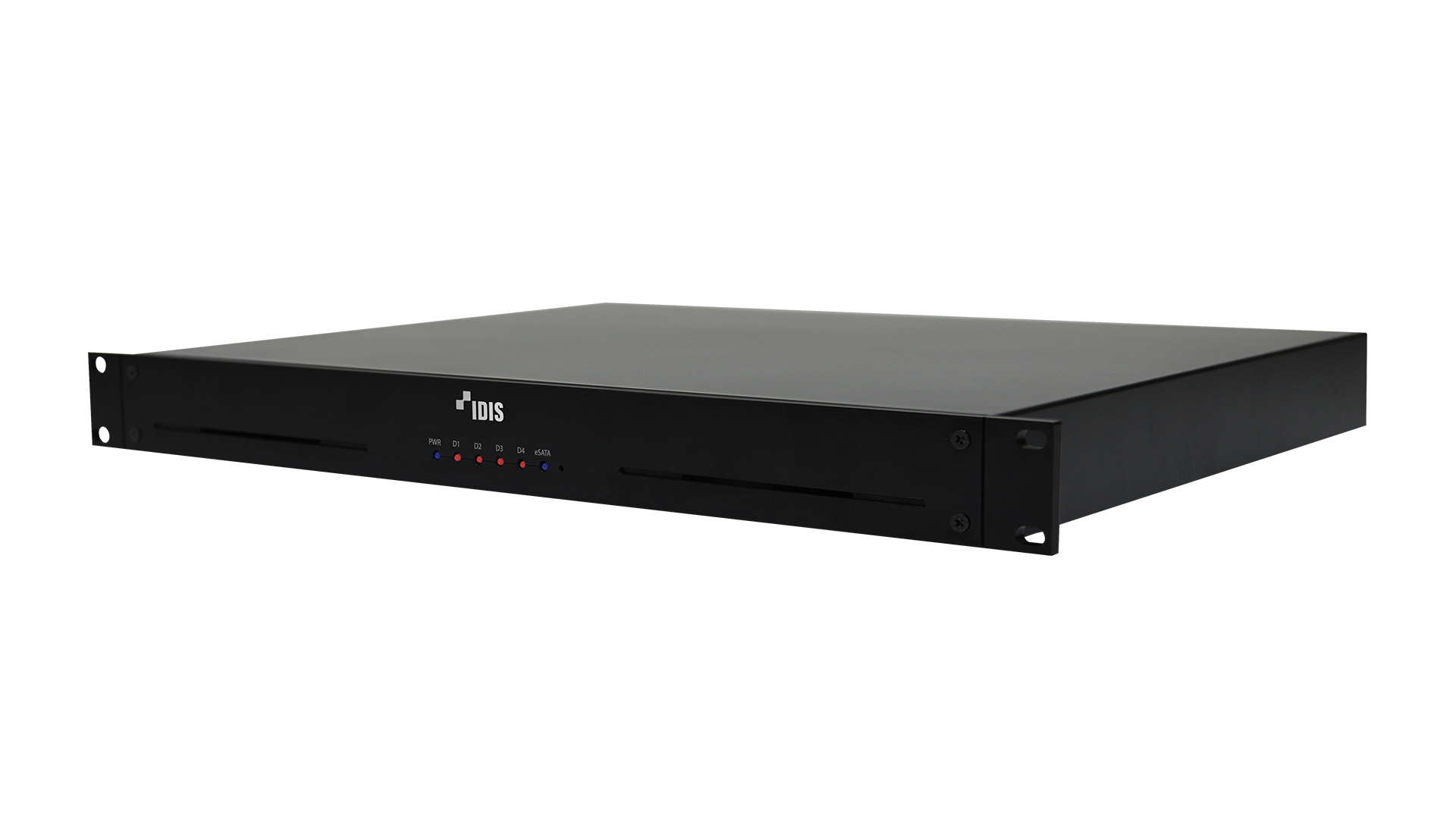

DA-ES1104D-30TB - 4-Bay eSATA Storage - IDIS
Part number:
Price:
- • 19 inch rack-mount
- • Supports RAID Levels 0, 1+ 0, 5
- • SATA to SATA Port Multiplier
- • Maximum of 3.0Gbps transfer rate (SATA II)
- • Installation of the maximum of four hard disk drives
- • Maximised space saving and capacity relative to the cost
- • Easy expansibility to a very large storage pool
- • Compatible to IR-300A with 10TB HDD
- • Supported Device: IR-300A, IR-310(-A)(D)(D-A)
| Function | |
|---|---|
| Interface | eSATA x1 |
| HDD | SATA x 4 |
| HDD Size | 3.5" |
| RAID | RAID 1, 5, 10 Supported |
| Total Capacity | 48TB=12TB x4 |
| Supported Device | IR-300A, IR-310(-A)(D)(D-A) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Input | 100V ~ 240VAC, 0.6-0.3A, 50/60Hz |
| Power Consumption | 100-240V~, 50/60Hz, 0.6-0.3A, 40W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions (W x H x D) | 480mm x 44mm x 346mm (18.9" x 1.7" x 13.6") |
| Weight | 6.4kg (14.11lb) |
Name
Description
Size
Downloads
File
DA-ES1104D_Datasheet.pdf
0.7mb
The DA-ES1104D-30TB is a 4-bay, external direct-attached storage unit designed specifically for capacity expansion of compatible IDIS server appliances. It features four 3.5-inch SATA hard drive bays, with a listed total raw capacity of 48TB (12TB per drive). The unit connects via a single eSATA interface and supports RAID 1 (mirroring), 5 (distributed parity), and 10 (mirrored stripe) configurations for data redundancy and performance. The device is designed for stable, controlled environments and operates within a temperature range of 0°C to 40°C (32°F to 104°F) and up to 90% humidity. It is powered by a 100-240V AC source with a typical consumption of 40W.
