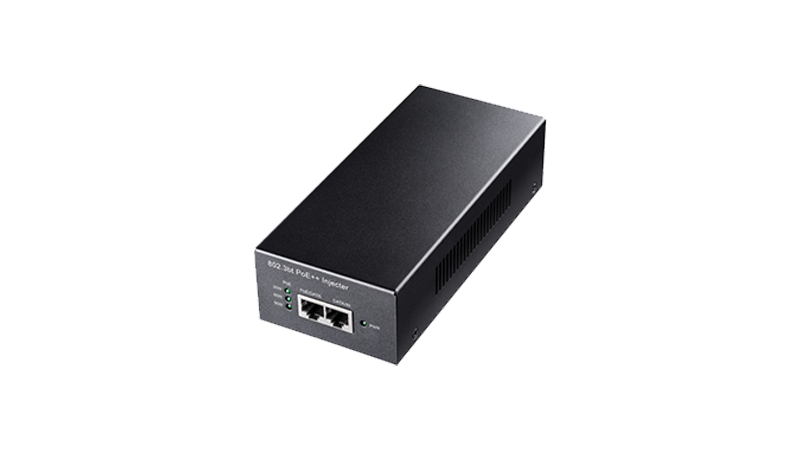

DA-PI PoE400 - Single Port High-PoE Injector - IDIS
Part number:
Price:
- • Up to 90W of PoE Power
- • Compatible with IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
- • Protects low power devices to receive only the power they need
- • Automatic detection and protection of non?standard ethernet terminals
- • Support 10/100/1000 Base-T ethernet connection
- • Compatible with DC-S6286HRXL(-A), DC-S6881HRX(-A), DC-S6681HRX(-A), DC-S6481HRA
| Function | |
|---|---|
| Network Connection | RJ45 x1 (Data-in), RJ45 x1 with PSE |
| PSE Power | 56V DC, Max. 90W |
| Transmission Speed | 10/100/1000Mbps |
| Distance | Up to 100m |
| Environmental | |
| Operating Temperature | 0°C ~ +45°C (32℉ ~ 113℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Input | 100 ~ 240V AC, 50/60Hz, 1A |
| Approval | FCC, CE |
| Mechanical | |
| Dimensions (W x H x D) | 46mm x 80mm x 178.5mm (1.8" x 3.1" x 7") |
| Weight | 580g (1.28lb) |
Name
Description
Size
Downloads
File
DA-PI PoE400_Datasheetpdf.pdf
1.1mb
The DA-PI PoE400 is a high-power, single-port Power over Ethernet injector. Its primary function is to deliver both data and substantial electrical power to a single network device, such as a high-power PTZ camera, high-intensity lighting, or a network switch, over a standard Ethernet cable. This injector supplies high-power PoE with a Power Sourcing Equipment output of 56V DC and a maximum power budget of 90W. It supports data transmission at speeds of 10/100/1000 Mbps (Gigabit) over distances up to 100 meters using standard cabling. Designed for controlled environments, it operates within a temperature range of 0°C to 45°C (32°F to 113°F) and up to 90% humidity. It is powered by a standard 100-240V AC source.
