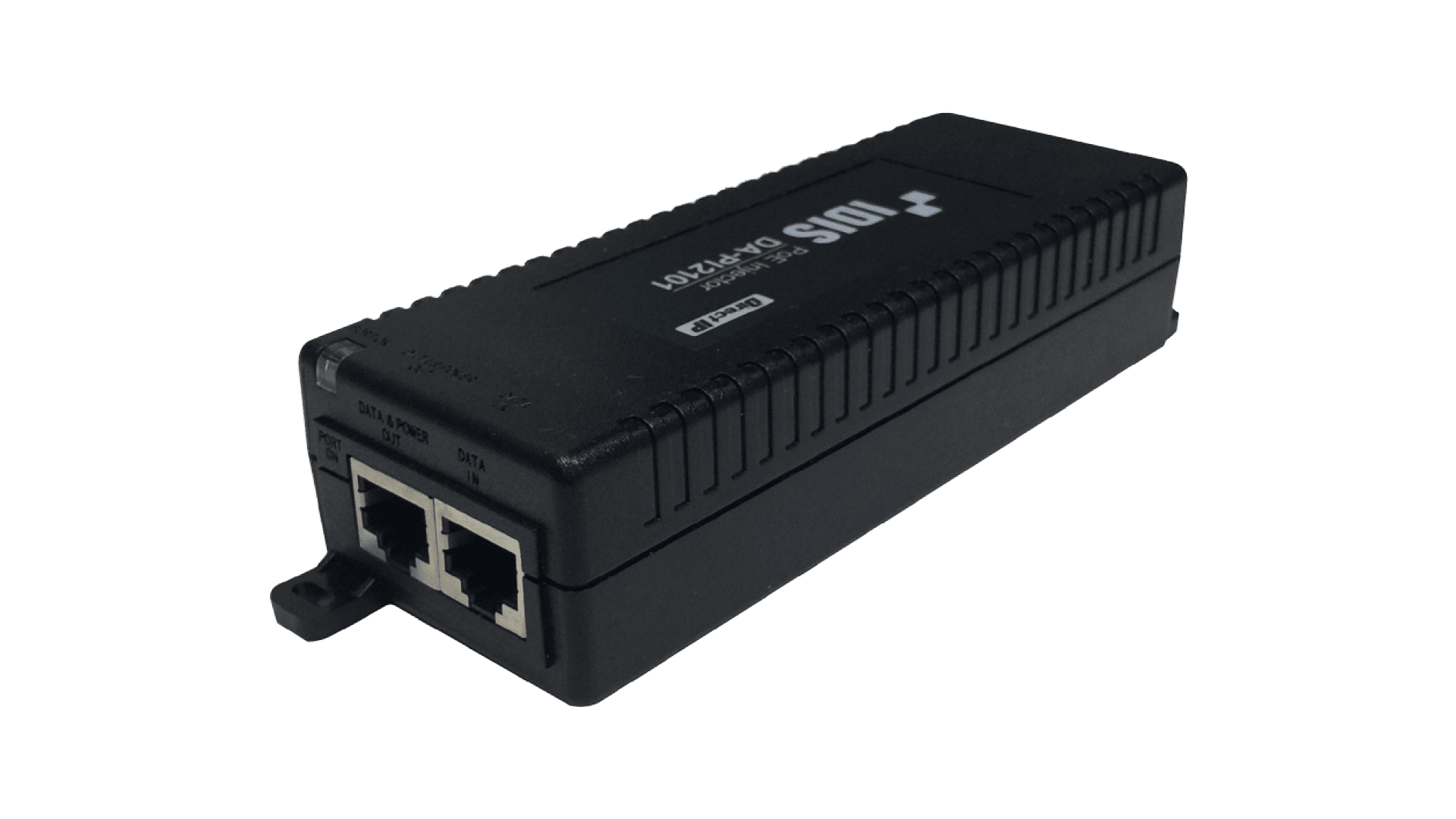

DA-PI2101 - Single Port PoE Injector - IDIS
Part number:
Price:
- • Up to 30W of PoE Power feeding on 2-pairs
- • Compatible with IEEE 802.3af, IEEE 802.3at
- • Protects low power devices to receive only the power they need
- • Automatic detection and protection of non–standard ethernet terminals
- • Parallel slide-in design for easy installation
| RJ45 Ethernet Interface_DATA I | |
|---|---|
| Port | 1 ch |
| Connectivity | RJ45, Auto-MDI/MDI-X sensing |
| Wire Title | CAT5 or better |
| Distance | Up to 100m |
| Speed | 10/100/1000 BASE T |
| RJ45 Ethernet Interface_PoE | |
| Port | 1 ch |
| Pin Assignment and Polarity | 4/5(+), 7/8(-) |
| PSE Power | 55V DC, Max. 30W |
| Distance | Up to 100m |
| Speed | 10/100/1000 BASE T |
| Supported Standards | IEEE 802.3at |
| General | |
| Dimensions(W x H x D) | 53mm x 32.5mm x 140mm (2.1" x 1.3" x 5.5") |
| Weight | 200g (0.44lb) |
| Operation Temperature | -15°C ~ 45°C (5℉ ~ 113℉) |
| Power Input | 100 ~240V AC, 0.8A |
| Approvals | FCC, CE, KC |
Name
Description
Size
Downloads
File
DA-PI2101_Datasheet.pdf
1.2mb
The DA-PI2101 is a compact, single-port Power over Ethernet injector. Its function is to add PoE capability to a non-PoE network switch or port, delivering both data and power over a single Ethernet cable to a single compatible device, such as an IP camera. This injector supplies PoE+ IEEE 802.3at power with a Power Sourcing Equipment output of 55V DC and a maximum power budget of 30W. It supports data transmission at speeds of 10/100/1000 Mbps (Gigabit) over distances up to 100 meters using CAT5 or better cabling. It is designed for versatile installations, operating within a wide temperature range of -15°C to 45°C (5°F to 113°F) and up to the implied standard humidity. It is powered by a standard 100-240V AC source.
