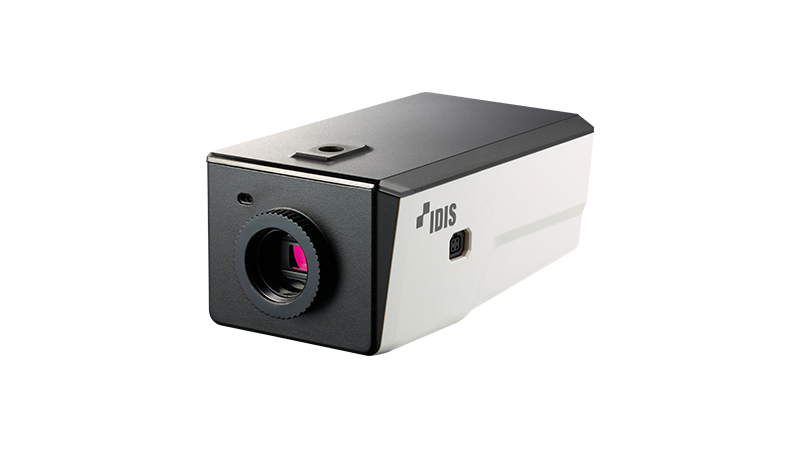

DC-B6206XL - 2MP LightMaster Box Camera - IDIS
Part number:
Price:
- • 2MP (1920 x 1080) resolution
- • Optional lens (C/CS mount)
- • Micro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
- • Two-way audio
- • Alarm in / out
- • PoE (IEEE 802.3af Class 2), 12V DC
- • Day and night (ICR)
- • True wide dynamic range (WDR)
- • Remote Focus ABF(Auto Back Focus)
- • Easy installation with DirectIP NVR
- • Supports ONVIF
| Video | |
|---|---|
| Image Sensor | 1/2" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | C/CS Mount |
| Iris Control | P-iris / DC Auto Iris / Manual Iris |
| Remote Focus | Auto Back Focus |
| Min. Illumination | Color Mode : 0.02 lux @F1.5 BW Mode : 0.002lux @F1.5 |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF |
| Max. Frame Rate | 30ips : 1920 x 1080(WDR) |
| Supported Resolution | 1920x1080, 1280x720, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In / Out | 1(Built In MIC)+1 / 1 |
| Alarm In / Out | 2/2 |
| Serial Interface | RS485 |
| Environmental | |
| Vandal Proof Casing | - |
| Outdoor Ready | - |
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 2) |
| Power Consumption | 12V=, 0.43A, 5.16W PoE, IEEE 802.3af(Class 2), 5W |
| Approval | FCC, CE, KC, UL |
| Mechanical | |
| Dimensions | 78mm x 63.5mm x 142.5mm (3.07" x 2.5" x 5.61") |
| Weight | 0.405kg (0.89 lb) |
Name
Description
Size
Downloads
File
DC-B6206XL_Datasheet.pdf
0.9mb
The DC-B6206XL is a 2MP box camera with a 1/2" CMOS sensor providing 1920x1080 resolution. It accepts C/CS-mount lenses with P-iris, DC auto iris, or manual iris control, and includes remote auto back focus. Video compression includes H.265, H.264, and MJPEG with up to 30 fps streaming. It provides 120dB True WDR, configurable image settings, and a minimum illumination of 0.02 lux in color mode. It operates from -10°C to +50°C and can be powered by 12VDC or PoE 802.3af, with a maximum consumption of 5.16W.
