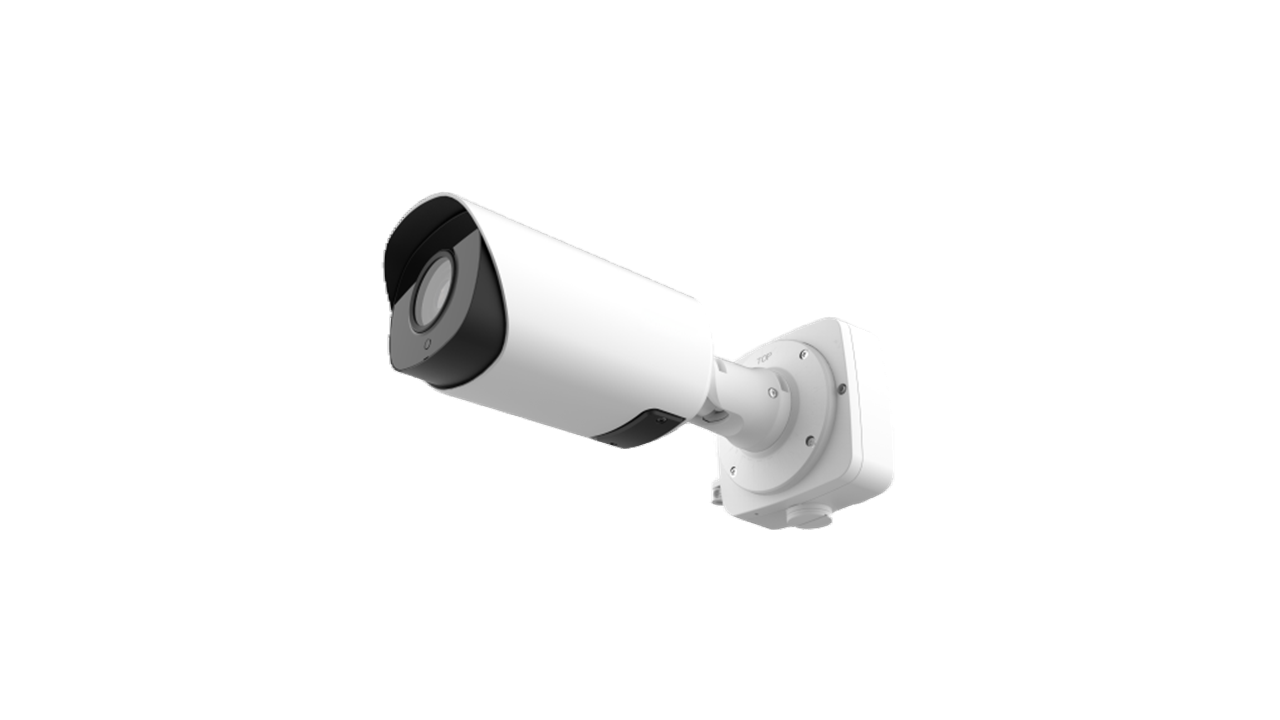

DC-T1445WRA740nm - License Plate Recognition Camera - IDIS
Part number:
Price:
- • 4MP Resolution
- • Motorized Vari-focal lens (f=8 - 32mm)
- • Alarm in/out
- • IP67 / IK10
- • PoE (802.3at) / DC 12V±
- • IR 740nm (Distance : 50m / 164')
- • 3-axis mechanical design for installation
- • Supports ONVIF Profile S/T/G/M
- • Junction Box Included
| Video | |
|---|---|
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 2688x1520 |
| Scanning Mode | Progressive Scan CMOS |
| Lens Type | 4X Optical Zoom |
| Focal Length | 8~32mm |
| Aperture | F1.6~F1.7 |
| Iris Control | Auto |
| Angular Field of View | H44°~H13°/D51°~D15°/V25°~V7° |
| Min. Illumination | Color: 0.005Lux@F1.6 B/W: 0Lux with IR on |
| Electronic Shutter Speed | 1/100000s~1s |
| Day and Night | Day/Night/Auto/Customize/Schedule |
| IR Distance (LEDs) | 50m |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Backlight Compensation | BLC |
| De-fog | Yes |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic) |
| Intelligent Video | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Network | |
| Video Compression | H.265 +/H.265(HEVC)/H.264 +/H.264/MJPEG |
| Bitrate Control | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Two-way Audio | Support |
| IP Camera Protocol | ONVIF Profile (S/T/G/M) |
| Max. Frame Rate | 60Hz:60fps@2688x1520,2304x1296,1920x1080,1280x720 |
| Supports Resolution | 2688x1520 |
| Multi-video Streaming | Primary - 60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) 50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 12 - Secondary - 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) - Tertiary - 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS |
| Ethernet | 1*RJ45 10M/100M Ethernet |
| Edge Storage | Support microSD/SDHC/SDXC Card Local Storage, |
| Alarm and Event | |
| Trigger Event | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Notification | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification |
| Audio In/ Out | 1*1 |
| Alarm In / Out | 1/1 (Integrated Cable - 2/2 (Cable Out Version) |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | 40℃~60℃ |
| Operating Humidity | 0~95%(Non-condensing) |
| Electrical | |
| Power Source | PoE (802.3at) / DC 12V± |
| Power Consumption | Min.: 3.66W (DC 12V), 4.48W(PoE) Max.: 10.88W (DC 12V),13.1W(PoE) |
| Approval | EMC CE-EMC (EN 55032, EN 55035), FCC (PART 15B) Safety CE-LVD (EN IEC 62368-1) |
| Mechanical | |
| Dimensions | 320 mm x 134 mm x 171 mm |
| Weight | 1623g |
Name
Description
Size
Downloads
File
DC-T1445WRA740nm_Datasheet.pdf
0.7mb
The DC-T1445WRA740nm is a 4MP license plate recognition camera with a 1/1.8” CMOS sensor providing 2688x1520 resolution. It features a 4x optical zoom lens with an 8-32mm focal range and a horizontal field of view from 44 to 13 degrees. It supports infrared illumination up to 50 meters using 740nm LEDs. The camera uses H.265, H.264, and MJPEG compression with a primary stream frame rate up to 60 fps.
Its intelligent video function is dedicated to license plate recognition with black/white list and attributes event processing. The housing is rated IP67 for ingress protection and IK10 for vandal resistance. It operates in temperatures from -40°C to +60°C and can be powered by 12VDC or PoE 802.3at, with a maximum consumption of 13.1W.
