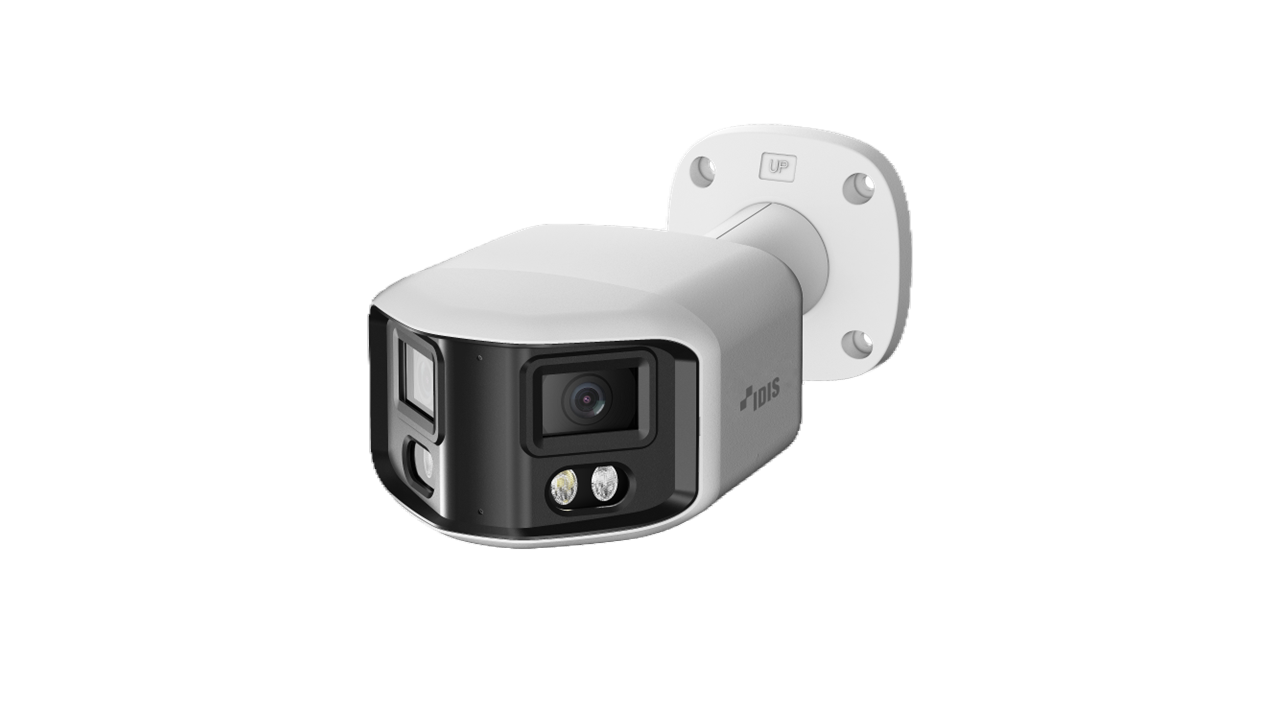

DC-T18A4WR - 8MP 180° Panoramic Bullet Network Camera - IDIS
- • 2×5MP 1/2.8” STARVIS™ CMOS
- • Output 180° wide angle splicing image
- • Outputs max. 8MP (4608×1728) @15 fps
- • Intelligent analysis: smart motion detection (Person and Vehicle)
- • True WDR, 3D DNR, ROI, Defog, HLC
- • Built-in warm light and IR light, the max. illumination distance up to 30m (98.4ft)
- • 1/1 alarm in/out, 1/1 alarm in/out ; built-in mic and speaker
- • Built-in SD card slot, up to 1TB
| Video | |
|---|---|
| Image Sensor | Dual 1/2.8” Progressive Scan CMOS |
| Max. Resolution | 4608(H) × 1728(V) |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal lens, Dual lens: 2.8mm |
| Focal Length | 2.8 mm |
| Aperture | F1.6 |
| Iris Control | Fixed Iris |
| Angular Field of View | H: 180°, V: 63° |
| Min. Illumination | Color: 0.01 Lux @ (F1.6,AGC ON) B/W: 0.001 Lux @ (F1.6,AGC ON), 0 Lux with light on |
| Dynamic Range | 120dB(True WDR) |
| Electronic Shutter Speed | Auto/Manual, 1/5 to 1/100,000s |
| Day and Night | Auto (ICR) |
| IR Distance (LEDs) | 2 (IR LED), 2 (Warm Light) IR distance up to 30m (98.4ft), Warm light distance up to 20m (65.6ft) |
| Image Setting | Image Adjustment: Brightness, Sharpness. Contrast. Saturation adjustable, White Balance: Auto/Manual Day/Night Setting: Auto, Day, Night, Time Noise Reduction: 2D/3D DNR, S/N Ratio 55db |
| Backlight Compensation | HLC, BLC |
| Mirroring / Pivot | - |
| Image Stabilizer | - |
| De-fog | Support |
| Privacy Masking | 4 areas |
| Intelligent Video | Intelligent analysis: Smart Motion detection (Human and vehicle). |
| Video Out | - |
| Pan/Tilt/Rotate | |
| Pan Range | Pan: 0˚ to 360˚ |
| Tilt Range | Tilt: 0˚ to 90˚ |
| Rotate Range | Rotation: 0˚ to 360˚ |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | - |
| Bitrate Control | CBR/VBR |
| Audio Compression | G.711, RAW_PCM |
| Two-way Audio | Yes |
| IP Camera Protocol | ONVIF (profile S/T/G/M) |
| Max. Frame Rate | 8MP (4608×1728) @15 fps |
| Supported Resolution | 4608×1728 @15fps, 1536×576 @15fps |
| Multi-video Streaming | 2 Streams |
| Network Protocols | IPv4/IPv6, RTSP/RTCP/RTP, TCP/UDP, HTTPS, DHCP, DNS, DDNS, PPPOE, UPnP, IGMP, IGMP, FTP, NTP, STMP, 802.1x, SNMP |
| Security | IP address filter, encrypted HTTPS, Illegal login lock, IEEE 802.lx |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Recording Session Buffer (NLTSrec) | - |
| Edge Storage | Built-in, up to 1TB |
| Alarm and Event | |
| Trigger Event | Motion detection, Smart Motion, Alarm input |
| Event Notification | Alarm record, Alarm output, FTP upload, SMTP upload, Audible alarm output, Warm white light alarm |
| Audio Alarm | Yes |
| Audio In / Out | 1/1 Audio in/out (Built-in Mic / Speaker) |
| Alarm In / Out | 1ch Input, 1ch Output |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP66 |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F ) |
| Operating Humidity | Less than 90% RH |
| Electrical | |
| Power Source | DC12V (-15% to +20%)/PoE (IEEE 802.3af) |
| Power Consumption | Max 11.5W |
| Approval | CE/FCC |
| Mechanical | |
| Dimensions | 8.96 × 4.33 × 3.15 inch (227.7 × 110 × 80 mm) |
| Weight | 1.81lb (0.82kg) |
The DC-T18A4WR is an 8MP 180° panoramic bullet camera utilizing dual 1/2.8” CMOS sensors to produce a stitched image with a 4608x1728 resolution. It features dual fixed-focal 2.8mm lenses with an F1.6 aperture, providing a combined horizontal field of view of 180 degrees. It includes both IR and warm-light LEDs for illumination up to 30 and 20 meters respectively. The camera uses H.265, H.264, and MJPEG compression with dual streaming at up to 15 fps. The imaging features include 120dB True WDR, defog, and smart motion detection for humans and vehicles. The housing is rated IP66 for ingress protection and IK10 for vandal resistance. It operates in temperatures from -30°C to +60°C and can be powered by 12VDC or PoE 802.3af, with a maximum consumption of 11.5W.
