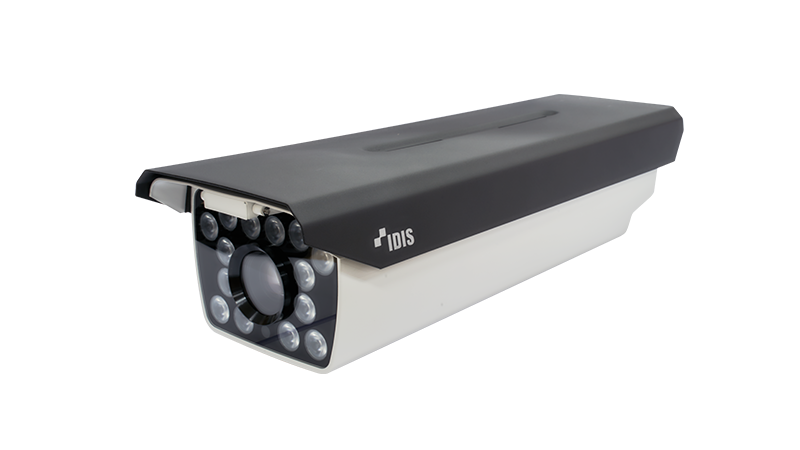

DC-T6224HRXL - License Plate Capture Camera - IDIS
Part number:
Price:
- • Easy installation with DirectIP NVR
- • FullHD (1920 x 1080) resolution
- • Manual Vari-focal lens (f=12 - 50mm)
- • IR LED (Distance : 20m [License plate capture up to 80km/h])
- • True wide dynamic range (WDR)
- • Day and night (ICR)
- • Two-way audio
- • Alarm in / out
- • IP66 supports
| Video | |
|---|---|
| Image Sensor | 1/2" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Vari-focal |
| Focal Length | 12 ~ 50mm |
| Aperture | F1.5 ~ F1.9 |
| Iris Control | P-Iris |
| Angular Field of View | Wide : 33º(H), 18º(V), 38º(D) Tele : 9º(H), 5º(V), 10º(D) |
| Min. Illumination | Color Mode : 0.02 lux @F1.5 BW Mode : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 20m (License plate capture up to 80km/h) 100m (Surveillance) |
| Image Setting | Configurable Exposure, White Balance, Sharpness |
| Backlight Compensation | - |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0 |
| Max. Frame Rate | 25ips : 1920 x 1080 30ips : 1920 x 1080 |
| Supported Resolution | 1920x1080, 1280x720, 704x480, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS, SSL Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 2 / 1 |
| Environmental | |
| Vandal Proof Casing | - |
| Outdoor Ready | IP66 |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +140°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 100V ~ 240VAC |
| Power Consumption | 100-240V~, 50/60Hz, 1.0-0.5A, 50W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | 166.5mm x 129.5mm x 540mm (6.56" x 5.1" x 21.26") |
| Weight | 4.65 kg (10.25 lb) |
Name
Description
Size
Downloads
File
DC-T6224HRXL_Datasheet.pdf
0.6mb
File
DC-T6224HRXL_AnE_Spec_v1.0.docx
0.1mb
The DC-T6224HRXL is a license plate capture camera with a 1/2" CMOS sensor providing 1920x1080 resolution. It features a 12-50mm vari-focal lens with an F1.5 aperture, offering a horizontal field of view from 33 to 9 degrees. It uses infrared LEDs optimized for capturing license plates at speeds up to 80km/h at 20 meters and for general surveillance up to 100 meters. Video compression includes H.265, H.264, and MJPEG with up to 30 fps streaming. It provides 120dB True WDR and configurable image settings. The housing is rated IP66. It operates from -40°C to +60°C and is powered by 100-240VAC with a consumption of 50W.
