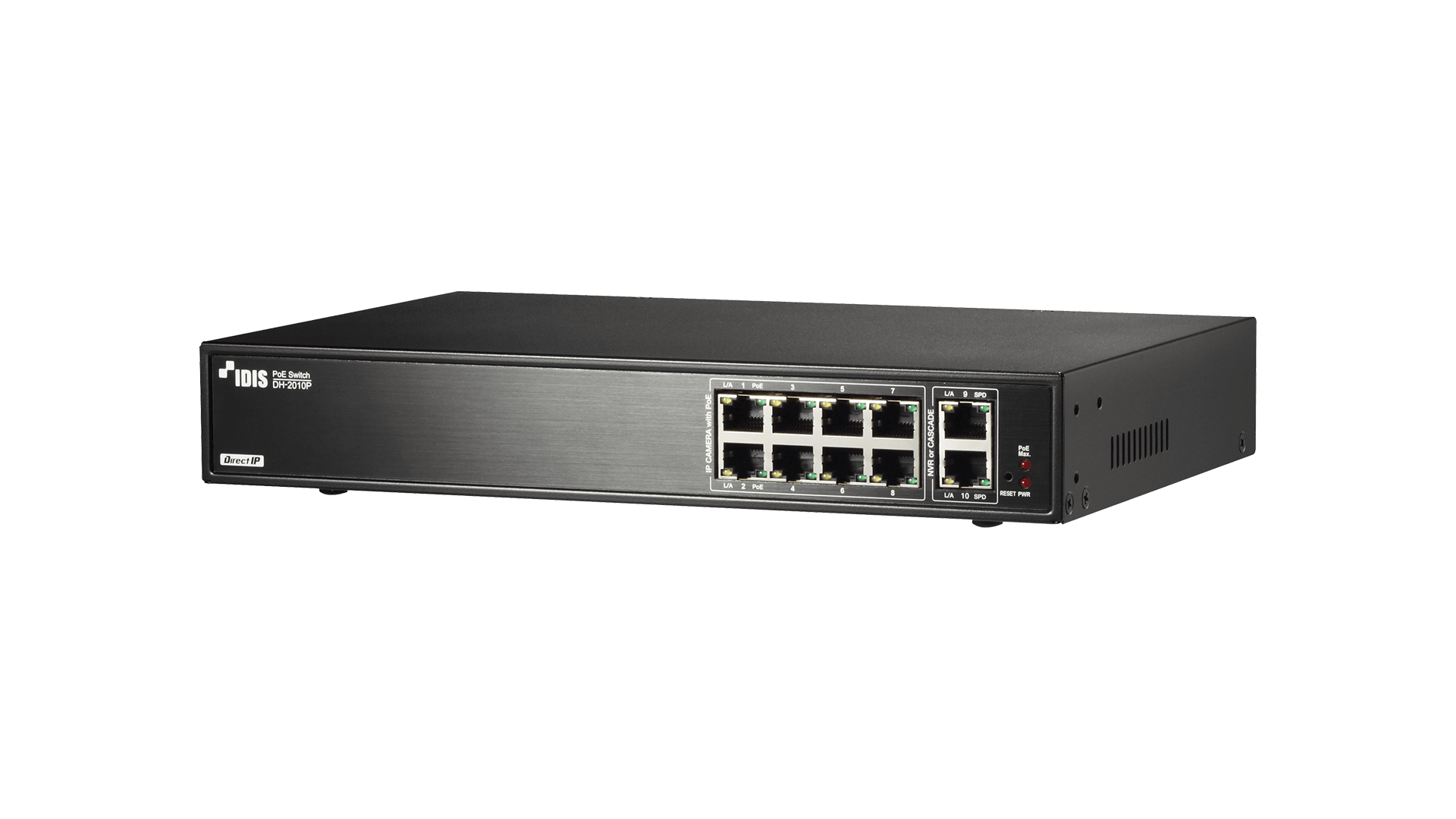

DH-2010P - 10 Port DirectIP Gigabit PoE Switch - IDIS
- • Individual port for data transmission to DirectIP NVR
- • PoE (IEEE 802.3af, IEEE 802.3at) compliant
- • Maximum per-device PoE delivery of 70W available for 1~8 RJ45 ports
- • Central power control for greater network utility
- • Supports 10 RJ45 ports
| Network | |
|---|---|
| Service Port | 8 RJ45 Connectors (10/100BASE-T) |
| Uplink Port | 2 RJ45 Connectors (10/100/1000BASE-T) |
| Supported Standards | IEEE 802.3af-2003 / IEEE 802.3at-2009 |
| PD Connection | Up to 8 IEEE 802.3af PDs or up to 2 IEEE 802.3at PDs |
| PSE Power | 70W |
| General | |
| Switching Capacity | 5.6Gbps |
| Memory | 256MB SDRAM, 32MB Flash |
| Environmental | |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Electrical | |
| Power Input | 100-240V~, 50/60Hz, 2.0-1.0A, 90W |
| Power Consumption | 90W |
| Approval | FCC, CE, KC, UL, CB |
| Mechanical | |
| Dimensions (W x H x D) | 280mm x 44mm x 180mm (11.0" x 1.7" x 7.1") |
| Weight | 1.35Kg (2.97lb) |
The DH-2010P is a 10-port managed Power over Ethernet switch designed specifically for IP surveillance networks. It provides eight 10/100 Mbps RJ45 service ports for connecting cameras or other powered devices (PDs) and two 10/100/1000 Mbps RJ45 uplink ports for connecting to network recorders or the core network. Its total switching capacity is 5.6 Gbps. The switch includes a Power Sourcing Equipment power budget of 70W. It supports the IEEE 802.3af and 802.3at standards, allowing it to power up to eight standard PoE devices or up to two higher-power PoE+ devices simultaneously. It is designed for installation in controlled environments and operates within a temperature range of 0°C to 40°C (32°F to 104°F). It is powered by a 100-240V AC source with a maximum consumption of 90W.
