- • Individual port data transmission to DirectIP® NVR
- • PoE (IEEE 802.3af, IEEE 802.3at) compliant
- • Maximum per-device PoE delivery of 140W available for 1~16 RJ45 ports
- • Central power control for greater network utility
- • Supports 16 RJ45 ports
| Network | |
|---|---|
| Service Port | 16 RJ45 Connectors (10/100BASE-T) |
| Uplink Port | 2 RJ45 Connectors (10/100/1000BASE-T) |
| Supported Standards | IEEE 802.3af-2003 / IEEE 802.3at-2009 |
| PD Connection | Up to 16 IEEE 802.3af PDs or up to 4 IEEE 802.3at PDs |
| PSE Power | 140W |
| General | |
| Switching Capacity | 7.2Gbps |
| Memory | 256MB SDRAM, 32MB Flash |
| Environmental | |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Electrical | |
| Power Input | 100-240V~, 50/60Hz, 2.0-1.0A, 160W |
| Power Consumption | 160W |
| Approval | FCC, CE, KC, UL, CB |
| Mechanical | |
| Dimensions (W x H x D) | 430mm x 44mm x 180mm (17.0" x 1.7" x 7.1") |
| Weight | 2.05Kg (4.52lb) |

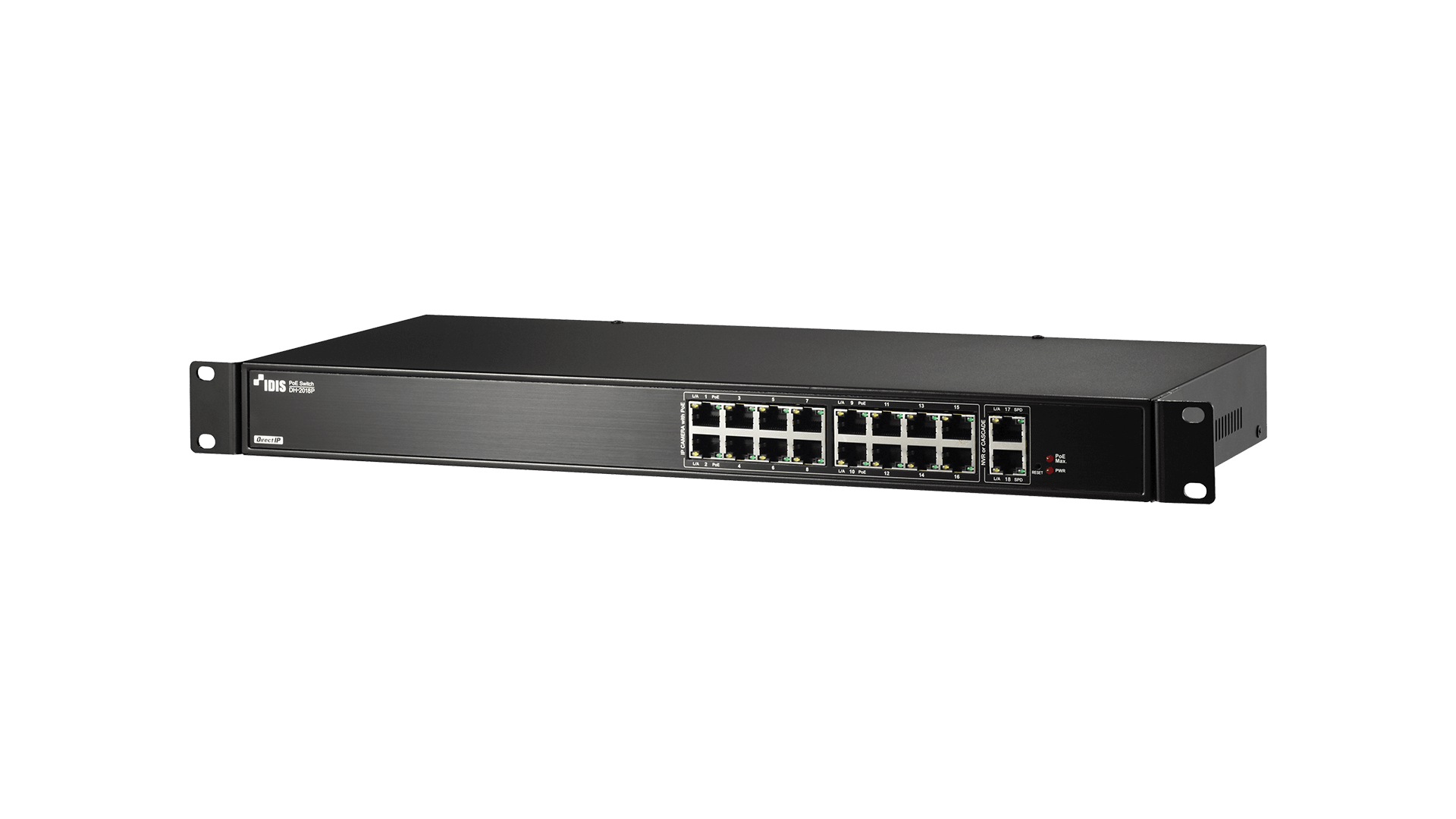

The DH-2018P is an 18-port managed Power over Ethernet switch designed specifically for IP surveillance networks. It provides sixteen 10/100 Mbps RJ45 service ports for connecting cameras or other powered devices (PDs) and two 10/100/1000 Mbps RJ45 uplink ports for connecting to network recorders or the core network. Its total switching capacity is 7.2 Gbps. The switch includes a substantial Power Sourcing Equipment power budget of 140W. It supports the IEEE 802.3af and 802.3at standards, allowing it to power up to sixteen standard PoE devices or up to four higher-power PoE+ devices simultaneously. It is designed for installation in controlled environments and operates within a temperature range of 0°C to 40°C (32°F to 104°F). It is powered by a 100-240V AC source with a maximum consumption of 160W.
