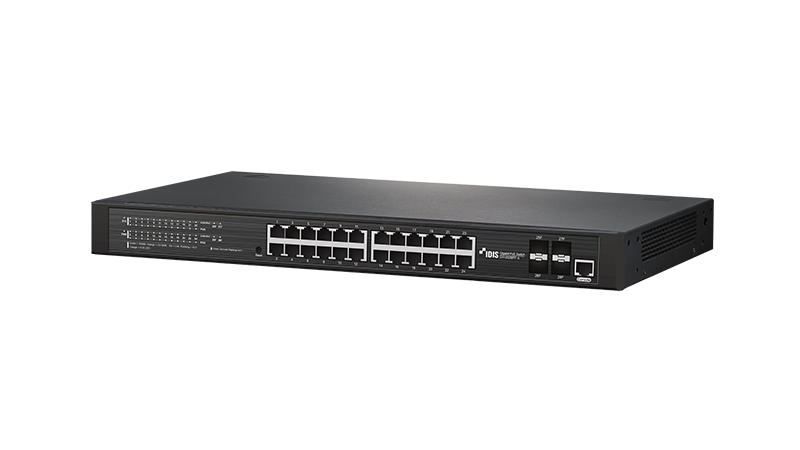

DH-2328PF-A - DirectIP 28 ports switch with 24 PoE ports - IDIS
- • Max. 370W PoE power budget
- • Supports 24 GbE RJ45 ports and Uplink 4 GbE SFP slots
| Network | |
|---|---|
| Service Port | 24 RJ45 Connectors (10/100/1000BASE-T) |
| Uplink Port | 4 SFP Slot (1000BASE-X) |
| Supported Standards | IEEE 802.3af/ IEEE 802.3at |
| PD Connection | Up to 24 IEEE 802.3af PDs or up to 12 IEEE 802.3at PDs |
| PSE Power | 370W |
| General | |
| Switching Capacity | 56Gbps |
| Memory | - |
| Environmental | |
| Operating Temperature | 0°C ~ 45°C (32°F ~ 113°F) |
| Electrical | |
| Power Input | 100-240V~, 50/60Hz, 4.2A-1.7A |
| Power Consumption | 430W |
| Approval | FCC, CE, NRTL, KC |
| Mechanical | |
| Dimensions (W x H x D) | 440mm x 44mm x 208mm (17.3" x 1.7" x 8.2") |
| Weight | 2.97Kg (6.54lb) |
The DH-2328PF-A is a high-density, 28-port managed Gigabit PoE+ switch engineered for large-scale IP surveillance deployments. It features twenty-four 10/100/1000 Mbps copper service ports for connecting high-resolution cameras and four SFP fiber uplink slots for high-bandwidth, long-distance backbone connections. Its total switching capacity is a substantial 56 Gbps. The switch is equipped with a very high Power Sourcing Equipment power budget of 370W. It supports the IEEE 802.3af and 802.3at standards, capable of powering up to twenty-four standard PoE devices or up to twelve higher-power PoE+ devices simultaneously. It is designed for demanding environments and operates within an extended temperature range of 0°C to 45°C (32°F to 113°F). It is powered by a 100-240V AC source with a maximum consumption of 430W.
