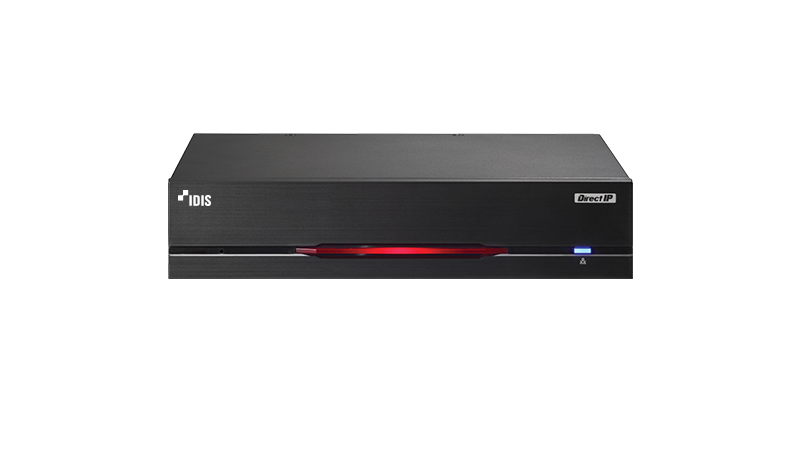

DP-DD1316 - DirectIP 16-channel Decoder - IDIS
- • Supports IDIS IP Camera
- • Supports HDMI, VGA, CVBS port
- • Supports 4K Display (HDMI)
- • Up to 480ips Live Display
| Video | |
|---|---|
| Video Inputs | 16 IP Channels |
| Max. Resolution | Up to 12MP (Depending on IP Camera) |
| Supported Device | IDIS IP Camera |
| Video Outputs | 1 HDMI, 1 VGA, 1 CVBS |
| Display Resolution | HDMI : 3840x2160, 1920x1200, 1920x1080, 1680x1050, 1600x1200 VGA : 1920x1200, 1920x1080, 1680x1050, 1600x1200 CVBS : 720x480(NTSC), 720x576(PAL) |
| Display Speed | Up to 480ips |
| Network | |
| Video Compression | H.265, H.264 |
| Max. Incoming Throughput | 90Mbps |
| Ethernet | Gigabit Ethernet x1 |
| Environmental | |
| Operating Temperature | 0°C ~ +40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE |
| Power Consumption | 12V=, 1.4A, 16.8W PoE, IEEE 802.3at(Class 4) |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | 200mm x 44mm x 153mm (7.9" x 1.7" x 6.0") |
| Weight | 0.78kg (1.72lb) |
The DP-DD1316 is a 16-channel video decoder designed to receive and decode video streams from IDIS IP cameras for display on monitors or video walls. It can handle video input from up to 16 IP channels at resolutions up to 12MP, decoding streams compressed with H.265 or H.264. The maximum incoming throughput is 90Mbps, and it can output a total display speed of up to 480 images per second (ips). It provides versatile video outputs: one HDMI port supporting up to 4K UHD (3840x2160), one VGA port, and one composite video output. The device connects via a single Gigabit Ethernet port and can be powered by either 12V DC or Power over Ethernet IEEE 802.3at. The decoder operates within a temperature range of 0°C to 40°C (32°F to 104°F) and up to 90% humidity, with a typical power consumption of 16.8W.
