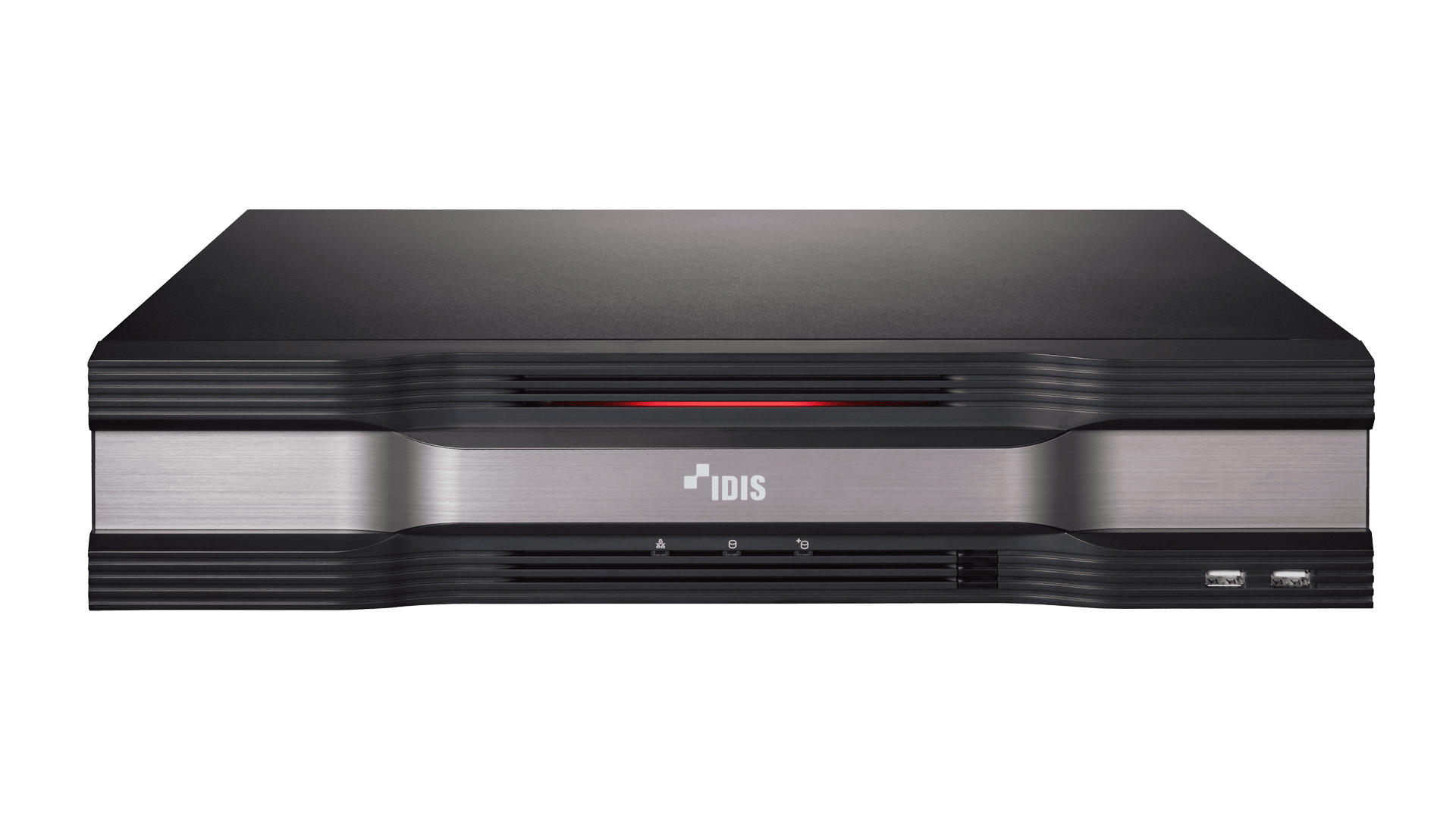

DR-6516P-16TB - DirectIP 6500 Series H.265 4K Recorder - IDIS
Part number:
Price:
- • Total incoming throughput 320Mbps
- • Up to 480ips UHDreal-time recording
- • Supports H.265 / H.264 codec
- • Supports UHD display
- • Up to 480ips live display
- • Easy to install, set-up, and play with DirectIP cameras
- • Built-in 16 channel PoE Switch
- • Expandable up to 252TB using eSATA storage
- • Supports RAID 1
- • Supports one click network configuration through FEN service
- • Supports third party cameras (Axis, Panasonic, ONVIF)
- • NDAA Compliance
| Video | |
|---|---|
| Video Inputs | 16 IP Channels |
| Max. Incoming Throughput | 320Mbps |
| Supported Camera | DirectIP, AXIS, PANASONIC, ONVIF |
| Video Outputs | 2 HDMI |
| Display Resolution | HDMI : 3840x2160, 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 480ips |
| Digital Zoom | x2 ~ x12 |
| NVR Side Dewarping | Yes |
| Recording | |
| Max. Throughput | 180Mbps, 480ips@UHD |
| Recording Resolution | Up to 12MP (Depending on IP Camera) |
| Video Compression | H.265, H.264 |
| Recording Mode | Time-lapse, Event, Pre-event, Panic |
| Trigger Event | IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc. |
| Playback | |
| Performance | 16ch synchronous playback |
| Search Mode | Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite) |
| Digital Zoom | x2 ~ x12 |
| Storage | |
| HDD | SATA x 6, eSATA x 4, RAID 1 Supported |
| Total Capacity | 252TB=10TB x 6(Internal) + 12TB x4x4(External) |
| Network | |
| Client Connection | Gigabit Ethernet (Client) x1 |
| Video In Connection | Gigabit Ethernet(IP Camera) x16 + Gigabit Ethernet(Ext) x1 |
| Transmission Speed | 50Mbps / 100Mbps (BRP Mode) |
| PSE Power | PoE (IEEE 802.3at Class 4) Supported 16 Ports, 120W |
| Event Notification | Email (Attach Clip (.cbf) .MP4), Callback to Remote S/W, Push Notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Interface | |
| Audio In / Out | Local (NVR) : 1 RCA / 1RCA + 2HDMI IP Camera : 16 / 16 (Depending on IP Camera) |
| Alarm In / Out | Local(NVR) : 4 / 1 IP Camera : 16 / 16 (Depending on IP Camera) |
| Alarm Reset In | Yes |
| Serial Interface | RS232 (Terminal Block), RS485 (Terminal Block) |
| USB | USB 2.0 x 2, USB 3.0 x 1 |
| User Interface | Mouse, IR Remote Control, Network Remote Keyboard |
| General | |
| Operating System | Embedded Linux |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Consumption | 100-240V~, 50/60Hz, 3.0-1.5A, 250W |
| Approval | FCC, UL, CE, CB |
| Mechanical | |
| Unit Dimensions (W x H x D) | 430mm x 88mm x 420mm (16.9" x 3.5" x 16.5") |
| Unit Weight | 6.75kg (14.88lb) (with 1HDD) |
Name
Description
Size
Downloads
File
DR-6516P-A_Datasheet.pdf
0.5mb
This is a 16-channel enterprise NVR with robust storage and AI processing. It supports a wide range of cameras, features NVR Side Dewarping for fisheye video, and has sixteen PoE ports (IEEE 802.3at) providing 120 watts to power cameras. The system handles AI metadata for analytics like object and face detection, records up to 12MP video with dual 4K HDMI outputs, and offers massive storage via six internal HDD bays and four eSATA ports. It runs on embedded Linux, operates from 0°C to 40°C, and consumes up to 250 watts.
