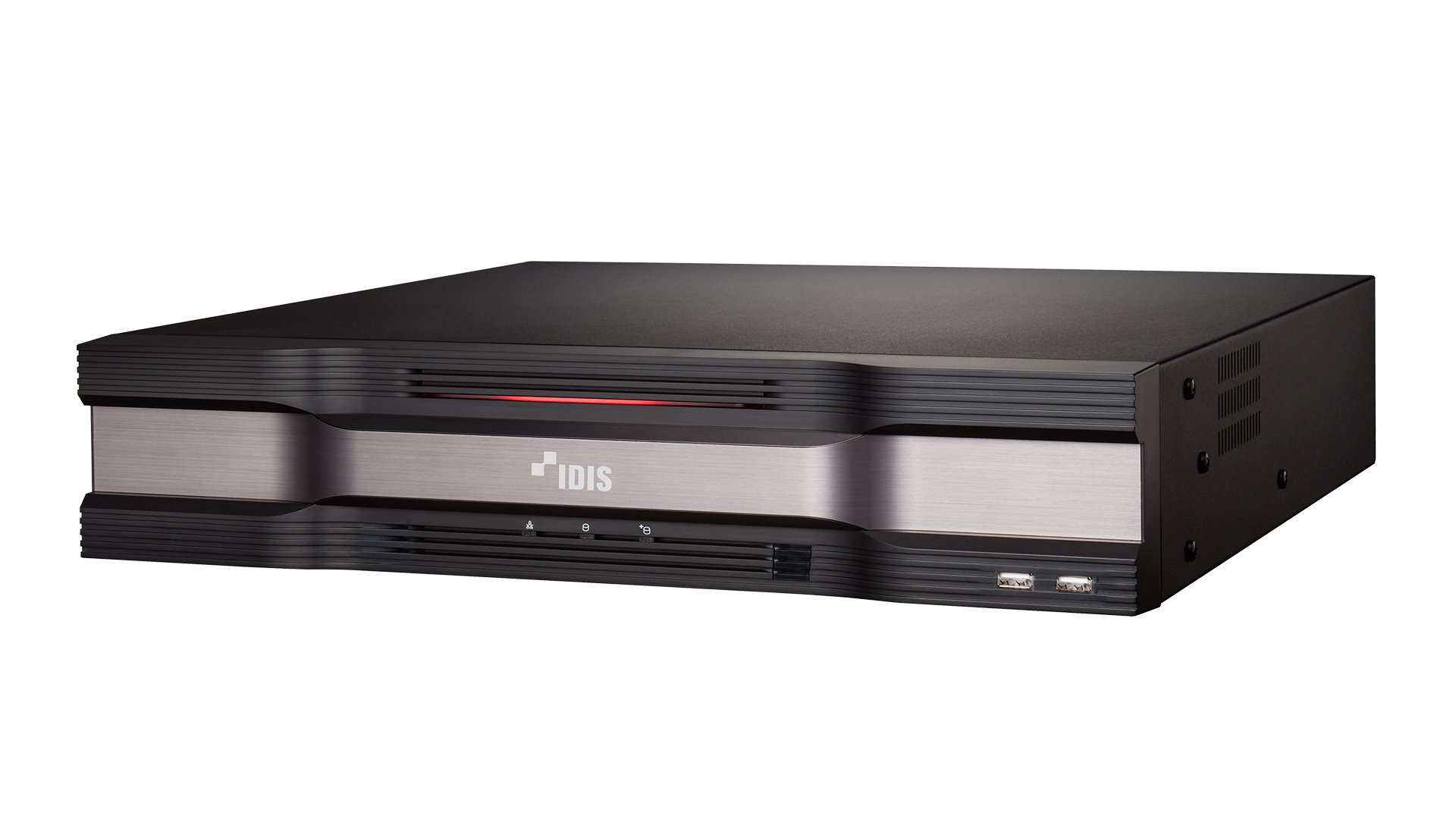

DR-6532P-60TB - DirectIP 6500 Series H.265 4K Recorder - IDIS
- • Total incoming throughput 370Mbps
- • Up to 960ips UHD real-time recording
- • Supports H.265 / H.264 codec
- • Supports UHD display
- • Up to 960ips live display
- • Easy to install, set-up, and play with DirectIP cameras
- • Built-in 16 channel PoE Switch
- • Expandable up to 252TB using eSATA storage
- • Supports RAID 1
- • Supports one click network configuration through FEN service
- • Supports third party cameras (Axis, Panasonic, ONVIF)
- • NDAA Compliance
| Video | |
|---|---|
| Video Inputs | 32 IP Channels |
| Max. Incoming Throughput | 370Mbps |
| Supported Camera | DirectIP, AXIS, PANASONIC, ONVIF |
| Video Outputs | 2 HDMI |
| Display Resolution | HDMI : 3840x2160, 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 960ips |
| Digital Zoom | x2 ~ x12 |
| NVR Side Dewarping | Yes |
| Recording | |
| Max. Throughput | 230Mbps, 960ips@UHD |
| Recording Resolution | Up to 12MP (Depending on IP Camera) |
| Video Compression | H.265, H.264 |
| Recording Mode | Time-lapse, Event, Pre-event, Panic |
| Trigger Event | IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc. |
| Playback | |
| Performance | 32ch synchronous playback |
| Search Mode | Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite) |
| Digital Zoom | x2 ~ x12 |
| Storage | |
| HDD | SATA x 6, eSATA x 4, RAID 1 Supported |
| Total Capacity | 252TB=10TB x 6(Internal) + 12TB x4x4(External) |
| Network | |
| Client Connection | Gigabit Ethernet (Client) x1 |
| Video In Connection | Gigabit Ethernet(IP Camera) x16 +Gigabit Ethernet(Ext) x1 |
| Transmission Speed | 50Mbps / 100Mbps (BRP Mode) |
| PSE Power | PoE (IEEE 802.3at Class 4) Supported 16 Ports, 120W |
| Event Notification | Email (Attach Clip (.cbf) .MP4), Callback to Remote S/W, Push Notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Interface | |
| Audio In / Out | Local (NVR) : 1 RCA / 1RCA + 2HDMI IP Camera : 32 / 32 (Depending on IP Camera) |
| Alarm In / Out | Local(NVR) : 4 / 1 IP Camera : 32 / 32 (Depending on IP Camera) |
| Alarm Reset In | Yes |
| Serial Interface | RS232 (Terminal Block), RS485 (Terminal Block) |
| USB | USB 2.0 x 2, USB 3.0 x 1 |
| User Interface | Mouse, IR Remote Control, Network Remote Keyboard |
| General | |
| Operating System | Embedded Linux |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Consumption | 100-240V~, 50/60Hz, 3.0-1.5A, 250W |
| Approval | FCC, UL, CE, CB |
| Mechanical | |
| Unit Dimensions (W x H x D) | 430mm x 88mm x 420mm (16.9" x 3.5" x 16.5") |
| Unit Weight | 6.75kg (14.88lb) (with 1HDD) |
This is a 32-channel IP video recorder designed for high-resolution surveillance systems. It supports recording from up to 32 IP cameras at resolutions up to 12MP, with a maximum recording throughput of 230Mbps and 960ips at UHD. Video is encoded using H.265 and H.264 compression. The unit features 16 integrated PoE+ ports (IEEE 802.3at) for camera power and data, and two HDMI outputs supporting a display resolution up to 3840x2160. It offers advanced event triggering based on analytics like object detection, intrusion, and face detection, as well as motion and alarm inputs. Storage is supported by six internal SATA bays and four eSATA ports for external expansion, with RAID 1 support.
The system includes NVR-side dewarping and digital zoom (x2~x12). Event management supports synchronous playback for all 32 channels. Network connectivity is provided via Gigabit Ethernet ports. The unit operates on an embedded Linux system within an ambient temperature range of 0°C to 40°C and up to 90% humidity. It is powered by 100-240V AC input with a maximum power consumption of 250W.
