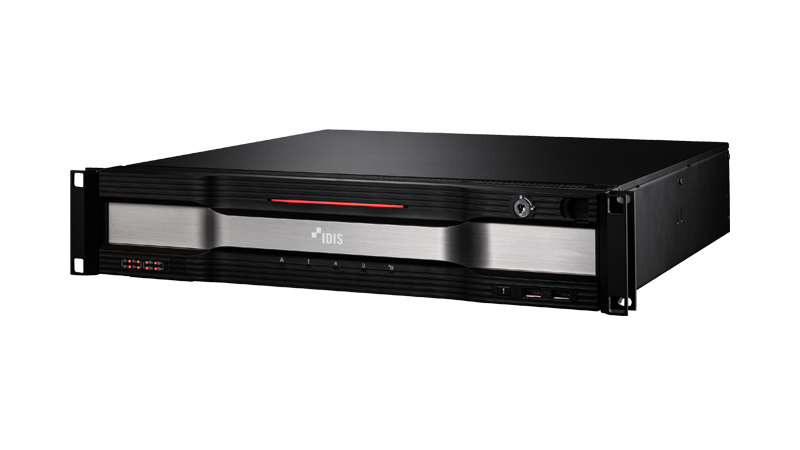

DR-8532D-32TB - DirectIP 8500 Series H.265 4K Recorder - IDIS
- • Total incoming throughput 370Mbps
- • Up to 960ips UHD real-time recording
- • Supports H.265 / H.264 codec
- • Supports UHD display
- • Up to 960ips live display
- • Easy to install, set-up, and play with DirectIP cameras
- • Expandable up to 144TB using eSATA storage
- • Supports RAID 1, 5, 6, 10
- • Supports Redundant Power
- • Supports one click network configuration through FEN service
- • Supports third party cameras (Axis, Panasonic, ONVIF)
| Video | |
|---|---|
| Video Inputs | 32 IP Channels |
| Max. Incoming Throughput | 370Mbps |
| Supported Camera | DirectIP, AXIS, PANASONIC, ONVIF |
| Video Outputs | 2 HDMI |
| Display Resolution | HDMI : 3840 x 2160, 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 960ips |
| Digital Zoom | x2 ~ x12 |
| NVR Side Dewarping | Yes |
| Recording | |
| Max. Throughput | 230Mbps, 960ips@UHD |
| Recording Resolution | Up to 12MP (Depending on IP Camera) |
| Video Compression | H.265, H.264 |
| Recording Mode | Time-lapse, Event, Pre-event, Panic |
| Trigger Event | IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc. |
| Playback | |
| Performance | 32ch synchronous playback |
| Search Mode | Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite) |
| Digital Zoom | x2 ~ x12 |
| Storage | |
| HDD | SATA x 8, eSATA x 4, RAID 1, 5, 6, 10 Supported |
| Total Capacity | 144TB=10TB x 8(Internal) + 4TB x 4x4(External) |
| Network | |
| Client Connection | Gigabit Ethernet (Client) x 1 |
| Video In Connection | Gigabit Ethernet(Video In) x 3, SFP(Video In) x 2 |
| Transmission Speed | 50Mbps / 100Mbps (BRP Mode) |
| PSE Power | - |
| Event Notification | Email (Attach Clip (.cbf) .MP4), Callback to Remote S/W, Push Notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Interface | |
| Audio In / Out | Local (NVR) : 1 RCA / 1RCA + 2HDMI IP Camera : 32 / 32 (Depending on IP Camera) |
| Alarm In / Out | Local(NVR) : 16 / 4 IP Camera : 32 / 32 (Depending on IP Camera) |
| Alarm Reset In | Yes |
| Serial Interface | RS232 (Terminal Block), RS485 (Terminal Block) |
| USB | USB 2.0 x 2, USB 3.0 x 1 |
| User Interface | Mouse, IR Remote Control, Network Remote Keyboard, Front Button(Panic) |
| General | |
| Operating System | Embedded Linux |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Consumption | 100-240V~, 50/60Hz, 8.0 - 4.0A, 100W x 2 |
| Approval | FCC, UL, CE, CB, KC, PSE |
| Mechanical | |
| Unit Dimensions (W x H x D) | 482.6mm x 88mm x 529.5mm (19" x 3.5" x 20.8") |
| Unit Weight | 12.6kg (27.8lb) (with 2 HDDs) |
This is a 32-channel enterprise IP video recorder (NVR) designed for high-density, high-resolution surveillance. It supports video input from up to 32 IP cameras at a maximum incoming throughput of 370Mbps, with recording up to 12MP resolution and a maximum recording throughput of 230Mbps (960ips at UHD). Video compression uses H.265 and H.264. It features dual HDMI outputs supporting display resolutions up to 3840x2160 (4K UHD) and includes NVR-side dewarping capability.
The system supports extensive video analytics-based event triggers, including object detection, intrusion, loitering, and face detection. Storage is handled by eight internal SATA HDD bays and four eSATA ports, with support for RAID 1, 5, 6, and 10. Camera connectivity is provided via three Gigabit Ethernet ports and two SFP ports. It includes two-way audio, multiple alarm I/O, and serial interfaces. The unit operates on an embedded Linux system within an ambient temperature range of 0°C to 40°C and up to 90% humidity, with a power supply of 100-240V AC and a configuration of 100W x 2.
