- • Powered by the most advanced IDIS Deep-Learning Analytics (IDLA)
- • People Counting and Occupancy Control
- • Queue Monitoring
- • Heatmap
- • Social Distancing Violation
- • Mask Rule Violation
- • Generates real-time event notifications with high accuracy
- • Live Occupancy Dashboard to maintain capacity limits
- • Dashboard Reporting for visitor flow, checkout traffic, and compliance adherence
- • Rapid DirectIP plug-and-play installation
- • Simply connect to an IDIS NVR
- • Supports 4-ch IP cameras
| Video | |
|---|---|
| Video Inputs | 4 IP Channels |
| Supported Device | DirectIP NVR (Recording functionality is not included.) |
| VA Support | People Counting, Occupancy Control Queue Monitoring Heatmap Social Distancing Violation Mask Rule Violation |
| Network | |
| Video Compression | H.265, H.264 |
| Network Connection | 100M Ethernet x 1 (100Base-TX) with PD 100M Ethernet x 1 (100Base-TX) with PSE (PSE need Adaptor) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Input | 48V=, PoE |
| Power Consumption | 48V=, 0.8A, 38.4W PoE, IEEE 802.3at(Class 4), 25W DC OUTPUT : 48V=, 0.35A MAX |
| Approval | FCC, CE, KC |
| Mechanical | |
| Unit Dimensions (W x H x D) | 200mm x 44mm x 157.6mm (7.9" x 1.7" x 6.2") |
| Unit Weight | 0.88kg (1.94lb) |

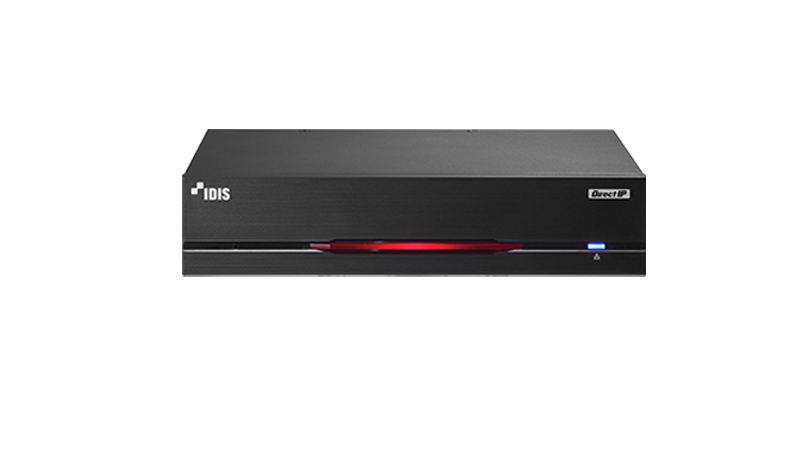

The DV-1304 is an "AI in the Box" edge analytics device designed to process video from four IP camera channels. It requires a compatible DirectIP NVR (recording functionality is handled by the NVR) and provides real-time analysis for business intelligence and occupancy applications. Supported analytics include People Counting, Occupancy Control, Queue Monitoring, Heatmap, Social Distancing Violation, and Mask Rule Violation. It connects via a single 100M Ethernet port and receives both power and video data via Power over Ethernet (PoE). The device itself outputs 48V DC power, operates on an embedded system using H.265/H.264 compression, and consumes up to 38.4W. It functions within a temperature range of 0°C to 40°C (32°F to 104°F) and up to 90% humidity.
