- • Simply connect to a compatible IDIS NVR
- • Supports 4ch IP Camera
- • Supports the most advanced IDIS Deep-Learning Analytics (IDLA)
- • Supports Object Detection
- • Supports Intrusion
- • Supports Loitering
- • Supports Line Crossing
- • Supports Face Detection
- • Supports object detection, intrusion, loitering, line crossing, and face detection rules
- • Generating real-time event notifications with high accuracy
| Video | |
|---|---|
| Video Inputs | 4 IP Channels |
| Supported Device | DirectIP NVR (Recording functionality is not included.) |
| VA Support | Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Network | |
| Video Compression | H.265, H.264 |
| Network Connection | 100M Ethernet x 1 (100Base-TX) with PD 100M Ethernet x 1 (100Base-TX) with PSE (PSE need Adaptor) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Input | 48V=, PoE |
| Power Consumption | 48V=, 0.8A, 38.4W PoE, IEEE 802.3at(Class 4), 25W DC OUTPUT : 48V=, 0.35A MAX |
| Approval | FCC, CE, KC |
| Mechanical | |
| Unit Dimensions (W x H x D) | 200mm x 44mm x 157.6mm (7.9" x 1.7" x 6.2") |
| Unit Weight | 0.88kg (1.94 lb) |

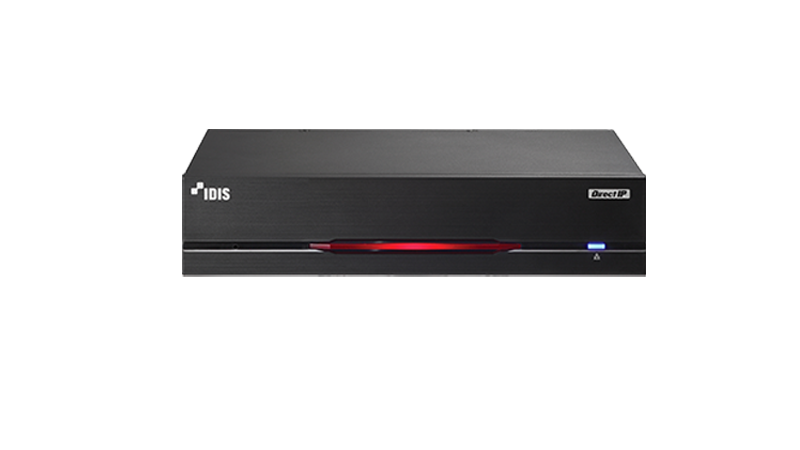

The DV-1304-A is a specialized "AI in the Box" edge analytics device designed for security-oriented video analysis. It processes video from up to four IP camera channels and is intended to work with a compatible DirectIP NVR, which handles the actual video recording. Its primary function is to provide real-time, on-device analysis using Deep Learning Analytics. Supported analytics include Object Detection, Intrusion Detection, Loitering Detection, Line Crossing, and Face Detection. The device connects via a single 100M Ethernet port, receiving both power and video data through Power over Ethernet (PoE). It operates on an embedded system using H.265/H.264 compression, consumes up to 38.4W, and functions within a temperature range of 0°C to 40°C (32°F to 104°F) and up to 90% humidity.
