DV-3200-B - AI in the BOX with IDIS Solution Suite - IDIS
- • AI in the BOX with IDIS Solution Suite
- • Compatible with IDIS Deep-Learning Analytics
- • 2U rack mount chassis
- • Superior Accuracy deep-learning engine
- • Object classification suitable for CCTV application
- • Simple configuration and Zero calibration
| General | |
|---|---|
| Supported Service | IDIS Solution Suite IDLA VA Service |
| Supported Version | Version 3.6.4 or Higher |
| Operating System | Microsoft® Windows 10 Iot Enterprise |
| Processor | Intel® I5-10500, 3.1GHz |
| Memory | DDR4 PC-25600, 16GB |
| Channels available for Analytics | Up to 64ch in condition of 640x360@5ips video input |
| IDLA Processing Unit | NVIDIA A2000, 6GB |
| Network | |
| Network Connection | 2 GbE RJ-45 Ports (1000Base-T) |
| Interface | |
| Video Outputs | 2 HDMI 2.0 |
| USB | 6 (2 Front USB 2.0 + 4 Back ( 3 USB 3.0 TYPE-A + 1 TYPE-C)) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Input | 100-240V~, 50/60 Hz, 6.0 - 3.0A |
| Power Consumption | 270W |
| Approval | FCC, CE, CB, UL, PSE, KC |
| Mechanical | |
| Unit Dimensions (W x H x D) | 482.6mm x 88mm x 523.3mm (19" x 3.5" x 20.6") |
| Unit Weight | 11.8kg (26.01lb) |

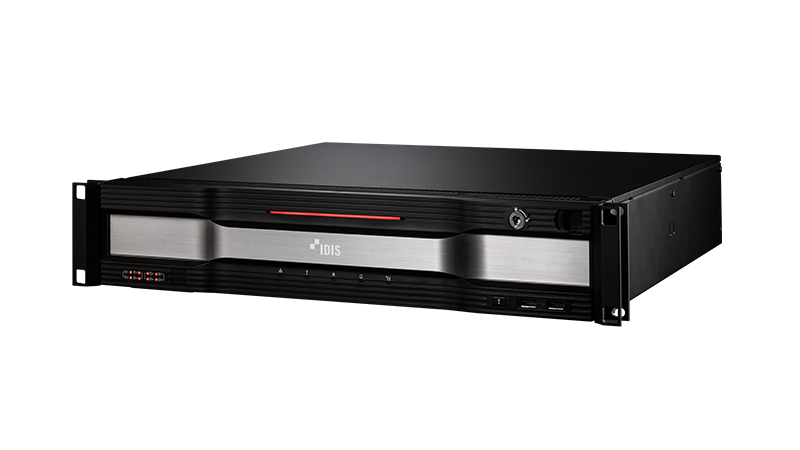

The DV-3200-B is an enterprise-grade "AI in the Box" appliance that integrates a full IDIS Solution Suite video management system with powerful on-board video analytics. It is a turnkey server designed for centralizing video management and processing. It supports the IDIS Deep Learning Analytics service and can process analytics for up to 64 camera channels (under conditions of 640x360 resolution at 5 images per second). This is powered by a dedicated NVIDIA A2000 GPU (6GB).
The system runs on Microsoft Windows 10 IoT Enterprise, is built with an Intel Core i5-10500 processor and 16GB of RAM, and provides two HDMI 2.0 outputs for local monitoring. It connects via two Gigabit Ethernet ports, features multiple USB ports, and operates within a temperature range of 0°C to 40°C (32°F to 104°F). It consumes 270W from a 100-240V AC source and is housed in a 2U rack-mountable chassis.
