- • Up to 10 km on 9/125μm SMF
- • Up to 1.25Gb/s bi-directional data links
- • Hot-pluggable SFP footprint
- • 1310nm Fabry-Perot laser transmitter
- • Compatibility with DH Series
| SFP TRANSCEIVER | |
|---|---|
| Optical Center Wavelength | 1265 to 1600nm |
| Output Pot.Power | -9.5 to -3 dBm |
| Average RX Sensitivity @ 1.25Gbs | -19 |
| Data Rate | 1.062Gb/s to 1.25Gb/s |
| General | |
| Dimensions(W x H x D) | 13.7mm x 12.4mm x 56.6mm (0.5" x 0.5" x 2.2") |
| Weight | 17.5g (0.04lb) |
| Operation Temperature | 0°C to 85°C |
| Approvals | FCC, CE, KC |

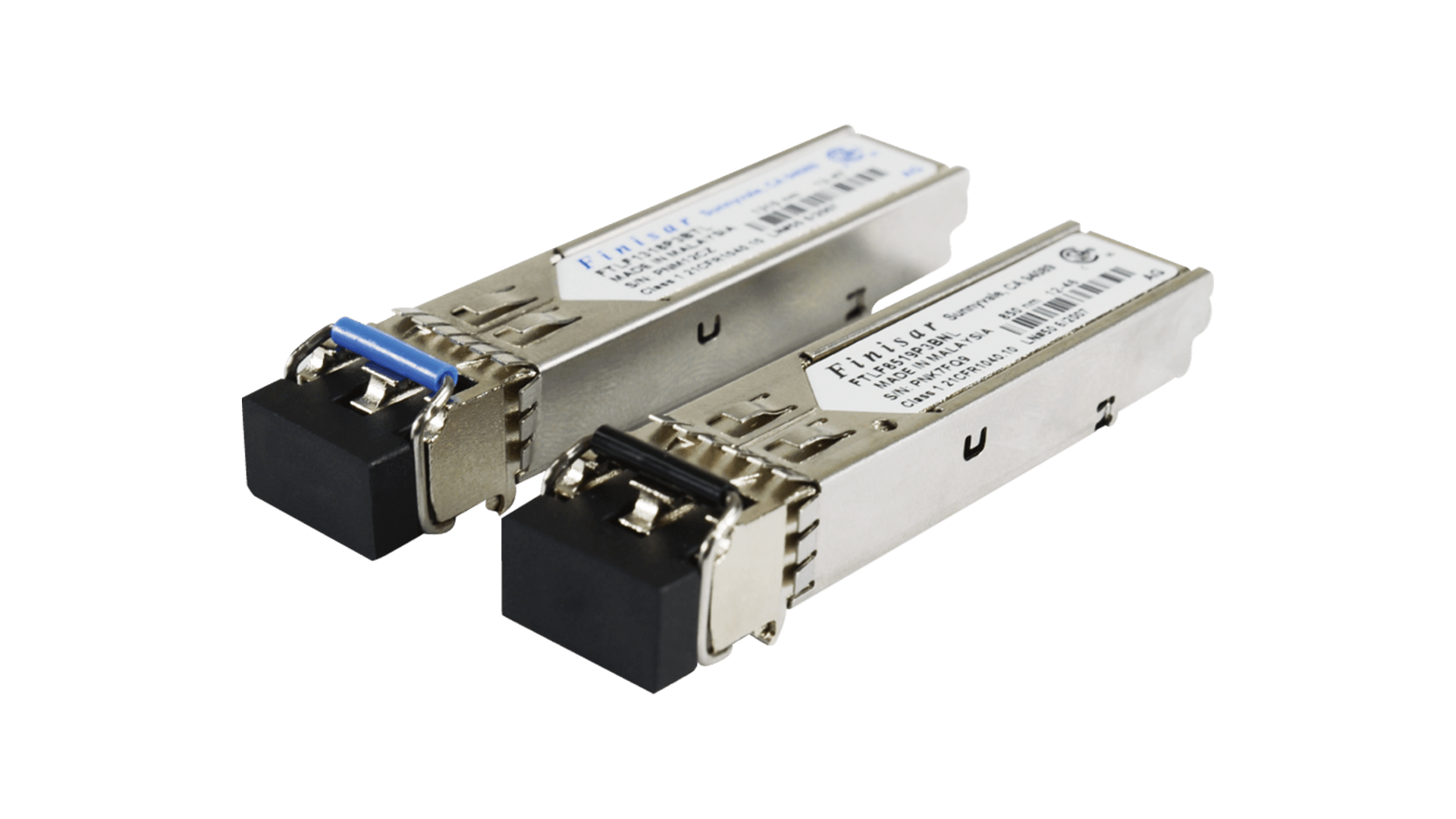

The FTLF1318P3BTL is an industrial-grade, multi-rate Small Form-factor Pluggable optical transceiver module. It is designed to convert electrical signals to optical signals and vice versa for fiber optic network connections in switches and other networking equipment. It is a versatile module supporting a data rate range from 1.062 Gb/s to 1.25 Gb/s, making it compatible with common Gigabit Ethernet standards. It operates within a broad optical wavelength range of 1265nm to 1600nm, which covers standard single-mode and CWDM wavelengths. Its transmit power ranges from -9.5 dBm to -3 dBm, with a receive sensitivity of -19 dBm at 1.25 Gb/s. This transceiver is built for reliability in demanding environments, operating within a wide temperature range of 0°C to 85°C (32°F to 185°F). It is a plug-and-play component with hot-swappable capability.
