Product Overview

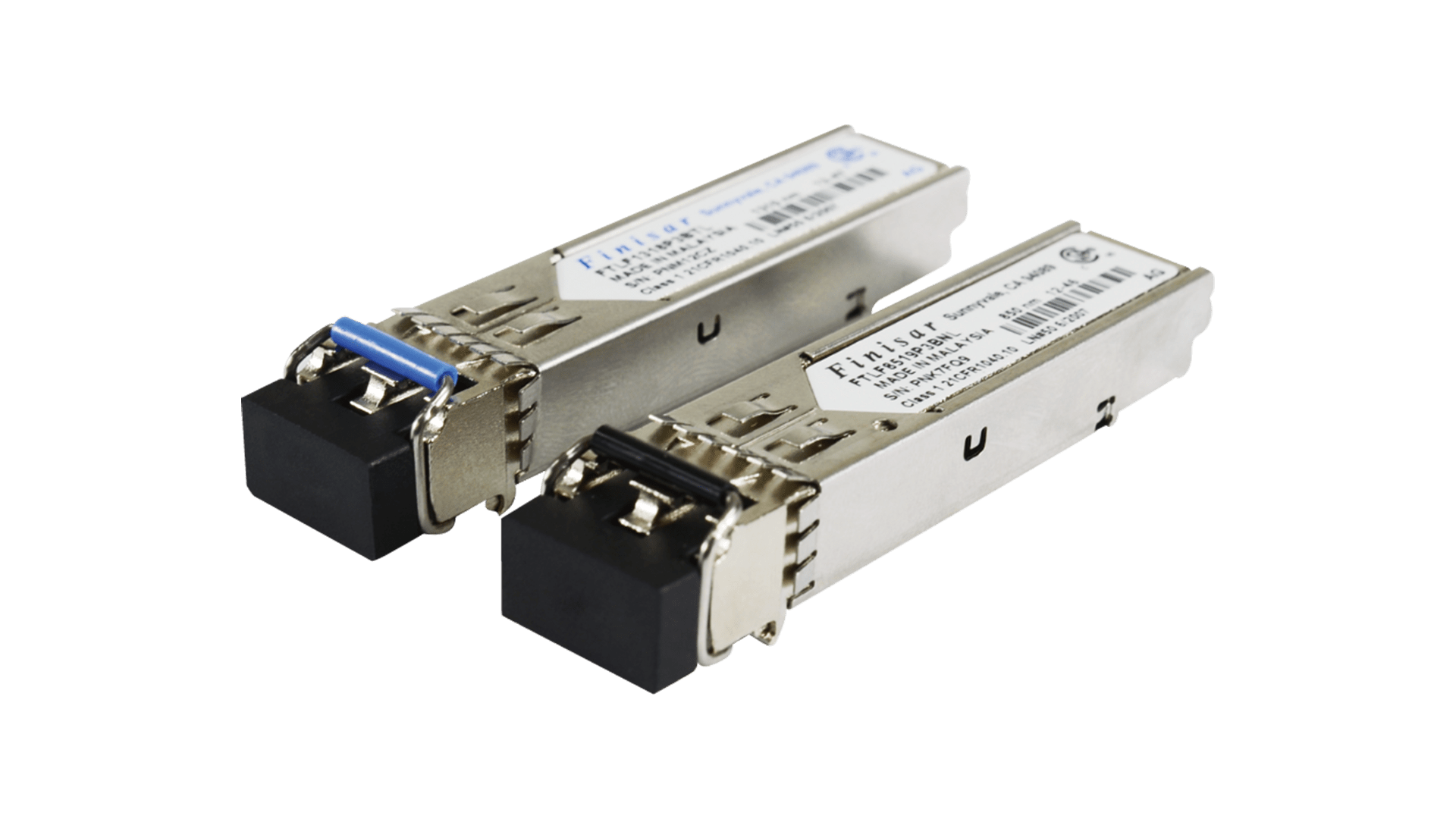

The FTLF8519P3BNL is an industrial SFP optical transceiver designed for stable high-speed data transmission over multimode fiber. It supports bi-directional data links up to 2.125 Gb/s using an 850 nm Oxide VCSEL laser transmitter, making it suitable for high-resolution video security networks and communication infrastructure.
Key Configuration
• Type: Hot-pluggable SFP optical transceiver for multimode fiber networks.
• Performance: Supports data rates from 1.062 Gb/s to 2.125 Gb/s.
• Optics: Uses an 850 nm VCSEL laser transmitter for reliable multimode fiber communication.
• Transmission: Supports distances up to 500 m on 50/125 μm MMF or 300 m on 62.5/125 μm MMF.
• Reliability: Designed for stable operation in environments with temperature fluctuations.
Technical Context
High reception sensitivity helps maintain data integrity during long-distance communication, while the 850 nm multimode fiber design supports reliable short-to-medium range optical networking. The transceiver is compatible with DH Series devices and DAMC1101.
Installation Notes
The hot-pluggable SFP form factor allows the transceiver to be installed or replaced without powering down compatible equipment. Its compact footprint supports efficient use of space in dense network and surveillance installations.
| SFP Transceiver | |
| Optical Center Wavelength | 830 to 860nm |
| Output Pot.Power | -9 to -2.5 dBm |
| Average RX Sensitivity @ 2.125Gbs | -17 |
| Data Rate | 1.062Gb/s, 1.25Gb/s, 2.125Gb/s |
| General | |
| Diemensions(W x H x D) | 13.7mm x 12.4mm x 56.6mm (0.5" x 0.5" x 2.2") |
| Weight | 17.5g (0.04lb) |
| Operation Temperature | 0°C to 85°C |
| Approvals | FCC, CE, KC |
