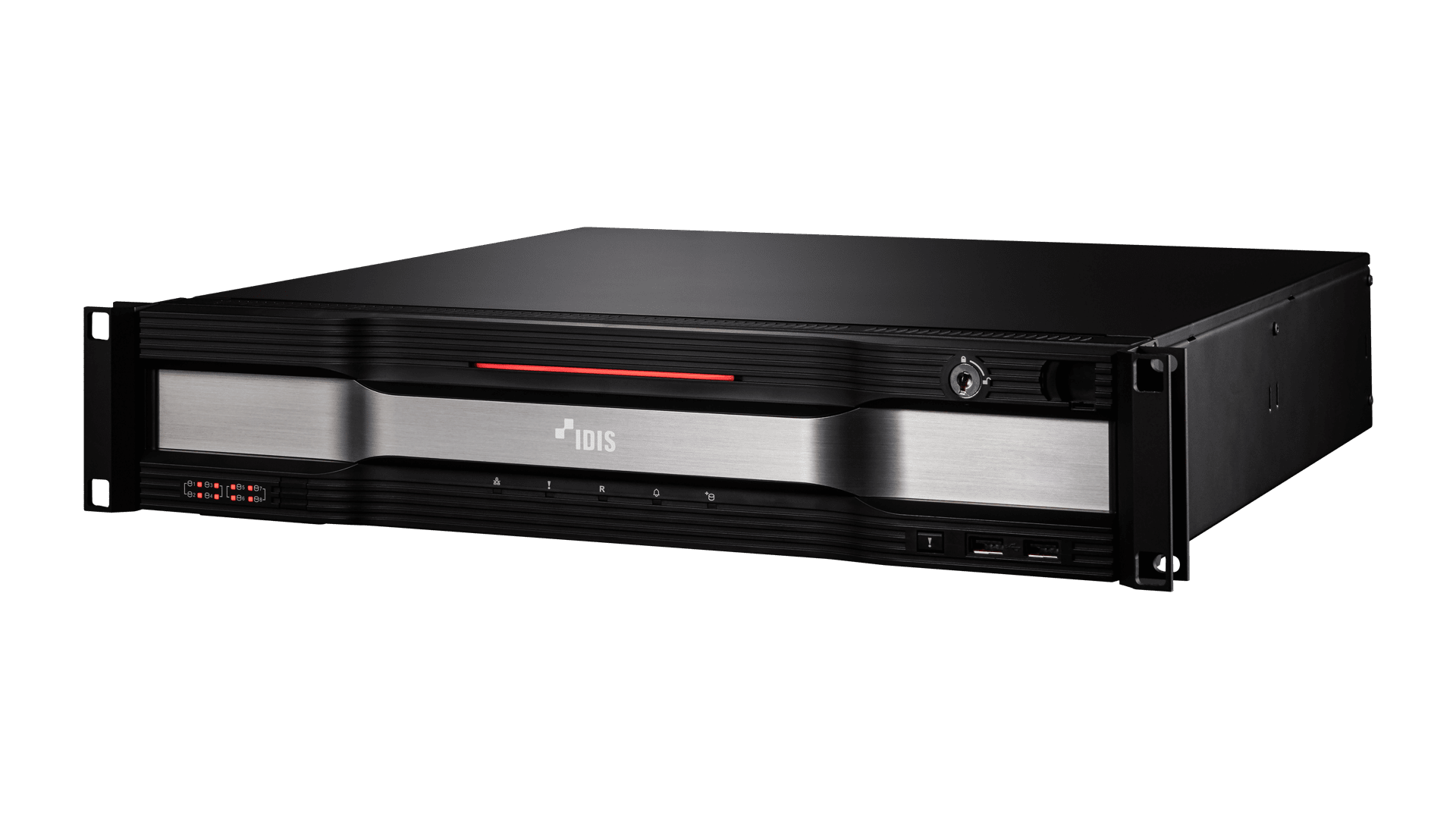

IR-310D-40TB - Ready to Install with IDIS VMS Workstation - IDIS
- • Ready to Install with IDIS Solution Suite VMS
- • Tested and validated with IDIS Solution Suite up to 64 Full HD H.264/265 IP cameras
- • Storage configuration: 8 SATA + 3 eSATA Ports
- • Supports up to 64 Full HD cameras in real-time for enterprise-level surveillance systems
- • 400Mbps maximum recording bandwidth per server
- • Complete compatibility with IDIS components: IP cameras, analog DVR, DirectCX TVR, DirectIP NVR, and encoders
- • 2U rack mount chassis
- • Supports H.264, H.265 compression, and Intelligent Codec
- • Supports Onvif Profile S, Axis, Panasonic
| Video | |
|---|---|
| Video Inputs | 64Ch Recommanded |
| Video Outputs | 2 HDMI 2.0 |
| Recording | |
| Max. Throughput | Up to 400Mbps |
| Storage | |
| HDD | SATA x 8, eSATA x 3, RAID 1, 5, 10 Supported, Hot-swappable |
| SSD | 240G SSD for Operating System (M.2 type) |
| Interface | |
| USB | 6 ( 2 Front USB 2.0 + 3 Back USB 3.0 Type-A + 1 Back USB 3.0 Type-C ) |
| Serial Interface | - |
| General | |
| Operating System | Microsoft® Windows 10 Iot Enterprise |
| Processor | Intel® I5-10500, 3.1GHz |
| Memory | DDR4 PC-25600, 16GB |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Input | 100-240V~, 50/60 Hz, 8.0 - 4.0A (Redundant) |
| Power Consumption | 120W x 2 |
| Approval | FCC, CE, CB, UL, PSE, KC |
| Mechanical | |
| Unit Dimensions (W x H x D) | 482.6mm x 88mm x 537mm (19" x 3.5" x 21.1") |
| Unit Weight | 12.6kg (27.8lb) |
The IR-310D-40TB is a high-performance video management server workstation. It is recommended for systems with up to 64 IP camera channels and features a maximum video recording throughput of 400Mbps. The unit includes two HDMI 2.0 outputs for monitoring. It is built with an Intel I5-10500 processor, 16GB of RAM, and runs on a Microsoft® Windows 10 IoT Enterprise operating system, with a dedicated 240GB M.2 SSD for the OS. Storage for video is handled by eight internal, hot-swappable SATA HDD bays and three eSATA ports, with support for RAID 1, 5, and 10. The system includes multiple USB ports and is powered by a redundant 100-240V AC power supply with a configuration of 120W x 2. It operates within a temperature range of 0°C to 40°C and up to 90% humidity.
